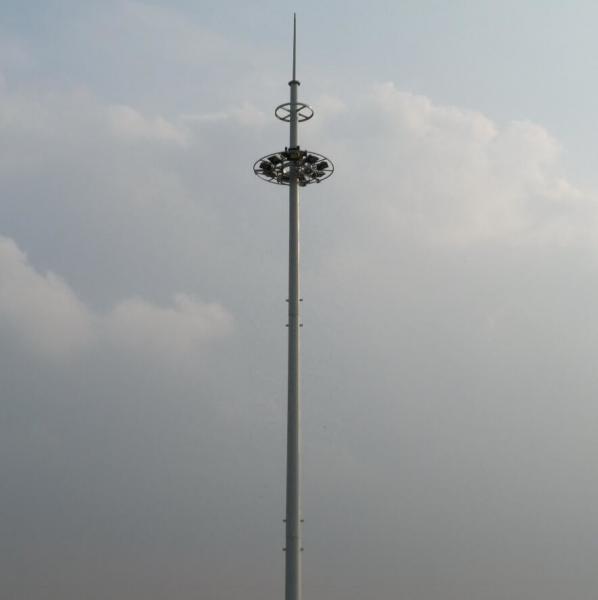

Steel Q235 Telecommunication Steel Tower With Hot Dip Galvanized
Steel Q235 Telecommunication Steel Tower With Hot Dip Galvanized image
Brand Name :
Suntech Tower
Model Number :
Monopole For Communication
Certification :
ISO, CE
Place of Origin :
China
MOQ :
1 Tower
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
80000 Metric Ton/Metric Tons Per Year
Delivery Time :
30-35 days after deposit
Packaging Details :
Exported Containers
Product Name :
Monopole For Communication
Material List :
Steel Q235 Q420
Height :
10-100m
Surface Treatment :
Hot Dip Galvanized
Wind Speed :
110~180km/h 3 second gust
Application :
Telecom Towers
Monopole For Communication Telecom Telecommunication Steel Tower With Hot Dip Galvanized
We are leading Chinese Tower manufacturer which have 26 years experiences, offering all kind of tower products and related accessories, do installation and maintenance, and have been exporting more than 65 countries over the decades.
Also we have lots of experiences for the tower design based on International standard and offering low cost-effective solution to our clients worldwide.
Design
1. Design Code TIA/EIA-222-G/F Structure Steel
2. GradeMild SteelHigh Tensile Steel GB/T 700:Q235B, Q235C,Q235DGB/T1591:Q345B, Q345C, Q3455D,
ASTM A36, ASTM A572, Gr50EN10025: S235JR, S235J0, S235J2EN10025: S355JR, S355J0, S355J2
3. Design Wind Speed Up to 250 km/h
4. Allowable deflection 0.5 ~1.0 degree operational speed
5. Tension strength (Mpa) 360~510470~630
6. Yield strength (t≤16mm) (Mpa) 355235
7. Elongation (%) 2024
8. Impact strength KV (J) 27(20°C) —Q235B(S235JR)27(20°C)— Q345B(S355JR)27(0°C)— Q235C(S235J0)27(0°C)— Q345C(S355J0)27(-20°C)— Q235D(S235J2)27(-20°C)— Q345D(S355J2)
9. Bolts & Nuts Grade 4.8, 6.8, 8.8
10. Standards formechanical properties
Bolts ISO 898-1
Nuts ISO 898-2
Washers ISO 6507-1
11. Standards for Dimensions
11.1 Bolts DIN7990, DIN931, DIN933;
11.2 Nuts ISO4032, ISO4034;
11.3 Washers DIN7989, DIN127B, ISO7091
12. Welding Method CO2 Shielded Arc Welding & Submerged Arc Welding (SAW)
Technical Data
Design | ||
1. Design Code | TIA/EIA-222-G/F | |
Structure Steel | ||
2. Grade | Mild Steel | High Tensile Steel |
GB/T 700:Q235B, Q235C,Q235D | GB/T1591:Q345B, Q345C,Q3455D | |
ASTM A36 | ASTM A572 Gr50 | |
EN10025: S235JR, S235J0,S235J2 | EN10025: S355JR, S355J0,S355J2 | |
3. Design Wind Speed | Up to 250 km/h | |
4. Allowable deflection | 0.5 ~1.0 degree @ operational speed | |
5. Tension strength (Mpa) | 360~510 | 470~630 |
6. Yield strength (t≤16mm) (Mpa) | 355 | 235 |
7. Elongation (%) | 20 | 24 |
8. Impact strength KV (J) | 27(20°C)—Q235B(S235JR) | 27(20°C)—Q345B(S355JR) |
27(0°C)—Q235C(S235J0) | 27(0°C)—Q345C(S355J0) | |
27(-20°C)—Q235D(S235J2) | 27(-20°C)—Q345D(S355J2) | |
Bolts & Nuts | ||
9. Grade | Grade 4.8, 6.8, 8.8 | |
10. Standards for mechanical properties | ||
10.1 Bolts | ISO 898-1 | |
10.2 Nuts | ISO 898-2 | |
10.3 Washers | ISO 6507-1 | |
11. Standards for Dimensions | ||
11.1 Bolts | DIN7990, DIN931, DIN933 | |
11.2 Nuts | ISO4032, ISO4034 | |
11.3 Washers | DIN7989, DIN127B, ISO7091 | |
Welding | ||
12. Method | CO2 Shielded Arc Welding & Submerged Arc Welding(SAW) | |
13. Standard | AWS D1.1 | |
Marking | ||
14. Method of marking of the members | Hydraulic Press Stamping | |
Galvanizing | ||
15. Galvanization standard of steel sections | ISO 1461 or ASTM A123 | |
16. Galvanization standard of bolts and nuts | ISO 1461 or ASTM A153 | |
Test | ||
17. Factory test | Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test |
|
Capacity | ||
18. Maximum Production Capacity | 50,000 TON per annum |
Our Product Range,
Steel structure industry especially steel towers and related products which include power towers and substation structures, telecommunication towers and related products of telecom sites, street light poles and so on.
Transmission line stringing tools and equipments,undergroud cable pulling tools incuded Stringing Blocks,Hoisting Tackles,Cable Rollers,Conductor Gripper,Gasoline Powered Winch,Hydraulic Puller Tensioner,Gin Poles,Inspection Trolleys and other rated machines.
Power fittings,transmission insulators and wires and cables included Suspension insulator,glass insulator,porcelain insulator,aluminum conductor steel reinforced,all aluminum alloy conductor,aluminum clad steel strand, aerial bounded cable,power cable,holding clamp,pulling clamp with pulley,arch plates,connector pipes and rated fittings.
And our branch company Ningbo Suntech Power Machinery Tools Co.,Ltd. as a professional global supplier who have been exporting more than 90 countries in the world, we have been trying to focus on the comprehensive solutions like provides all related products and engineering services as client's requirement, for example from engineering consultant, design services, drawing services, manufacturing, transportation, supervision and even installation construction & maintenance services.
Insisting on business philosophy of “To be honest, To get win-win” and service concept of pursuing maximizing customer value , makes it win great reputations from both telecommunication operators and electricity power operators,we are willing to develop and share sucess with you.
Our Services
Our services include preliminary layouts, writing of contract specifications, bid solicitations, review of bid packages, final designs, inspections, project
management, and professional engineering certification. In addition to the fabrication of monopoles, self-supporting and guyed towers, we also can provide
fabrication and installation details. We provide structural analyses of telecom structures in accordance with applicable codes (Electronic Industries
Association,China Standard, American National Standards Institute, Uniform Building Code, and others).
