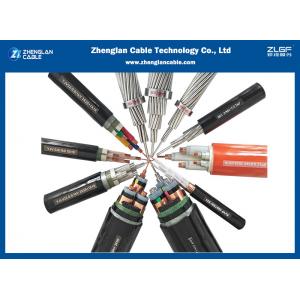

STA/SWA Armored or Unarmored XLPE Insulated MV(Medium Voltage)Power Cable

APPLICATIONS:

The single core cables are designed for distribution of electrical power with nominal voltage Uo/U ranging from 3.8/6.6KV to 19/33KV and frequency 50Hz. They are suitable for installation mostly in power supply stations, indoors and in cable ducts, outdoors, underground and in water as well as for installation on cable trays for industries, switchboards and power stations.

Standard: IEC60502, BS6346, VDE, AS/NZS,etc

The Rated Voltage(kv): 0.6/1 1.8/3 3.6/6 6/10 8.7/15 12/20 18/30 21/35

Number of cores:

1, 2, 3, 3+1, 3+2, 3+3, 4, 4+1, 4+2, 5 low votage

1 or 3 core medium voltage

Construction:

Conductor: Solid or stranded copper/aluminum

Insulation: Cross-linked polyethylene (XLPE)

Filler: Polypropylene filament with lapped binding tape
Binder: Binding tape
Inner sheath: Polyvinyl chloride (PVC)
Amour: Galvanized steel wire armored(SWA) or steel tape armored(STA)
Sheath: Polyvinyl chloride (PVC)

Current Rating for Single Core 3.6/6KV(Um=7.2KV ) to 18/30KV(Um=36KV) XLPE Insulation

STA/SWA Armored Or Unarmored XLPE Medium Voltage Power Cables electrical performance

Nom. Cross- Section Area Buried direct in Ground Laid in Single Way Duct Laid in Air
Trefoil Flat spaced Trefoil Flat Touching Trefoil Flat Touching Flat spaced
CU AL CU AL CU AL CU AL CU AL CU AL CU AL
mm² A A A A A A A
70 239 186 246 192 227 176 229 178 296 230 303 236 356 278
95 285 221 293 229 271 210 274 213 361 280 369 287 434 338
120 323 252 332 260 308 240 311 242 417 324 426 332 500 391
150 361 281 366 288 343 267 347 271 473 368 481 376 559 440
185 406 317 410 324 387 303 391 307 543 424 550 432 637 504
240 469 367 470 373 447 351 453 356 641 502 647 511 745 593
300 526 414 524 419 504 397 510 402 735 577 739 586 846 677
400 590 470 572 466 564 451 571 457 845 673 837 676 938 769
500 650 530 672 546 604 504 661 537 935 773 938 776 1118 919
630 700 600 882 646 654 554 771 617 1045 883 1048 886 1318 1089
800 750 660 1002 756 694 594 871 717 1145 983 1148 986 1528 1279
1000 800 720 1112 856 724 644 971 807 1235 1083 1238 1086 1738 1469

Cable Parameters:
8.7/15KV Medium Voltage Single Core Power Cable (Amoured)

NO. Cross- Section Area Copper Wire Screen Area* NO. Sheath Thickness NO. Overall Diameter Approx. Weight
N2XSY/ N2XSH CU N2XS2Y CU N2XS (F) 2Y CU
mm2 mm mm mm kg / km kg / km kg / km
50 16 1.8 31 1250 1150 1350
70 16 1.9 33 1500 1350 1600
95 16 1.9 34 1800 1650 1900
120 16 2.0 35 2150 1900 2250
150 25 2.0 37 2400 2250 2500
185 25 2.1 38 2800 2600 2900
240 25 2.1 42 3400 3200 3500
300 25 2.2 43 4000 3800 4150
400 35 2.3 44 4950 4750 5100
500 35 2.4 46 6050 5800 6200
630 35 2.5 50 8150 8050 8300
800 35 2.6 53 9600 9450 9800
