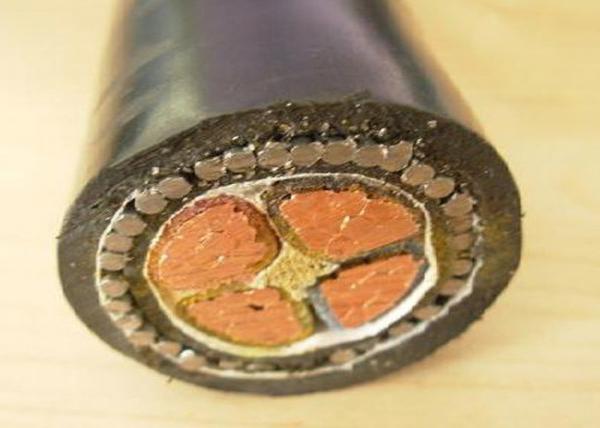

STA / SWA 600/1000V Multi Core Armoured Cable IEC60502-1
STA / SWA 600/1000V Multi Core Armoured Cable IEC60502-1 image
STA / SWA 600/1000V Multi Core Armoured Cable IEC60502-1
Application of Multi Core Armoured Cable:
Building, Engineered, Railway, Plant construction, Shool, Hospital, Underground and so on.
Applicable Standard:
We can produce according to standard IEC60502-1 , BS 5467, ICEA S-95-658, CSA C22.2 , NFC 33-210 /NFC 32-322, AS-NZS 5000.1,etc
Characters of Multi Core Armoured Cable:
1. Rated voltage: 0.6/1KV
2. Cable core number: 1Core , 2Core,3Core , 4Core , 5Core , 3+1Core(3.5Core) , 3+2 Core , 4+1Core , etc.
3. Max. Conductor long time operating temp. is 70℃ for PVC Insulation and 90℃ for XLPE Insulation
In short circuit, max. Temp. is 160℃ for PVC Insulation and 250℃ for XLPE Insulation.
Construction:
Conductor: Cu/Al (Solid/Stranded)
Insulation: XLPE/PVC/PE/LSHF
Inner sheath (applicable if there is armor layer): PVC/PE
Armor layer (if required) :Al tape/Al wire/ Steel wire / Steel Tape
Outer sheath : PVC/PE/LSHF
4 core 600/1000V cables with stranded copper conductors
| Nominal cross-sectional area of conductor | Thickness of insulation | Thickness of extruded bedding | Nominal steel armor wire diameter | Thickness of oversheath | Approximate overall diameter | |
| Extruded bedding | Taped bedding | |||||
| mm² | mm | mm | mm | mm | mm | mm |
| 1.5a | 0.6 | 0.8 | 0.9 | 1.3 | 12.6 | |
| 2.5a | 0.7 | 0.8 | 0.9 | 1.4 | 14.1 | |
| 4a | 0.7 | 0.8 | 0.9 | 1.4 | 15.3 | |
| 6a | 0.7 | 0.8 | 0.9 | 1.4 | 16.6 | |
| 10a | 0.7 | 0.8 | 1.25 | 1.5 | 19.5 | |
| 16a | 0.7 | 0.8 | 1.25 | 1.6 | 21.6 | 21.6 |
| 25b | 0.9 | 1.0 | 1.6 | 1.7 | 23.6 | 23.2 |
| 25a | 0.9 | 1.0 | 1.6 | 1.7 | 26.7 | 26.3 |
| 35b | 0.9 | 1.0 | 1.6 | 1.8 | 25.7 | 25.3 |
| 35a | 0.9 | 1.0 | 1.6 | 1.8 | 29.4 | 29.0 |
| 50b | 1 | 1.0 | 1.6 | 1.8 | 28.5 | 28.1 |
| 70b | 1.1 | 1.0 | 1.6 | 1.9 | 32.2 | 31.8 |
| 95b | 1.1 | 1.2 | 2.0 | 2.1 | 37.0 | 36.2 |
| 120b | 1.2 | 1.2 | 2.0 | 2.2 | 40.4 | 39.6 |
| 150b | 1.4 | 1.4 | 2.5 | 2.3 | 45.5 | 44.3 |
| 185b | 1.6 | 1.4 | 2.5 | 2.4 | 49.8 | 48.6 |
| 240b | 1.7 | 1.4 | 2.5 | 2.6 | 55.1 | 53.9 |
| 300b | 1.8 | 1.6 | 2.5 | 2.7 | 60.2 | 58.6 |
| 400b | 2.0 | 1.6 | 2.5 | 2.9 | 66.6 | 65.0 |
|
a Circular or compacted circular standed conductor(class2) b Shaped stranded conductor(class2) |
||||||
Click for more information
1. Product consultation ,analysis, design, production
2. Provide industry information, Product Training, Assist Product Marketing
3. Provide project support such as tender assistant, cooperate visit customers,FAT support
4. Complete Quality system and docs available, faster lead time, good quality,Strong technical support, free samples
5. OEM service
6. Other services customized by clients
Q1: Are you a manufacturer or a trade company?
Q2: What`s your export business type / customer groups?
Q3: I do not know how to choose what I need. / I have not found the cable type and size I need on this page.
Q4: When can I get the price ?
Q5: What’s your MOQ?/ How long is your delivery time?
Q6: What’s your trade term and payment term?
Q7: What`s your quality guarantee and period.
Q8: Does your price include destination custom clearance , import tax , installation service ?
We are China STA / SWA 600/1000V Multi Core Armoured Cable IEC60502-1 manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
