Size 1/0 2 Soft 600 Amp Welding Cable , Bare Copper Welding Cable 35mm2 70mm2 Rubber Superflex

 China Size 1/0 2 Soft 600 Amp Welding Cable , Bare Copper Welding Cable 35mm2 70mm2 Rubber Superflex supplier

Size 1/0 2 Soft 600 Amp Welding Cable , Bare Copper Welding Cable 35mm2 70mm2 Rubber Superflex image

Get a Quote Email to us

Brand Name :
JHY CABLE

Model Number :
YHV

Certification :
ISO9001/ISO14001/OHSAS18001/CCC/CE

Place of Origin :
SHENZHEN CHINA

MOQ :
500M

Price :
Negotiable

Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram

Supply Ability :
10000M/Day

Delivery Time :
10~15 Days

Packaging Details :
As per customer request

Application :
Welding Machines

Type :
Welding cable

Conductor :
Bare Copper

Insulation :
Rubber

Color :
Black

Working temperature :
70°c

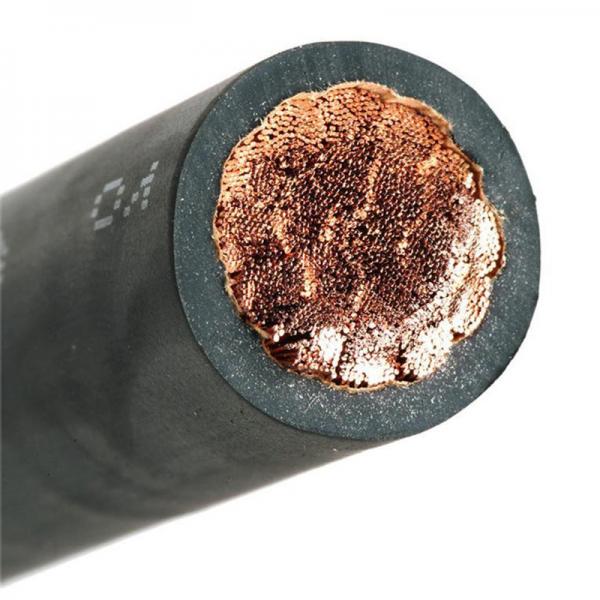

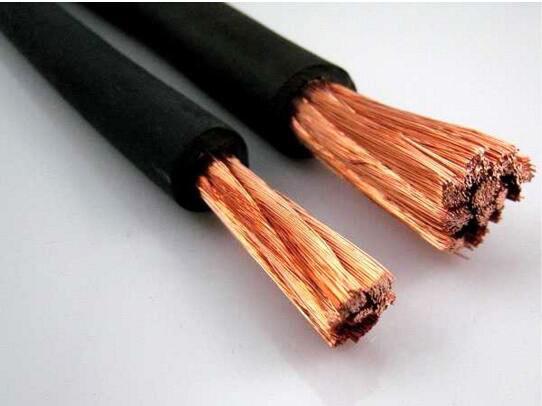

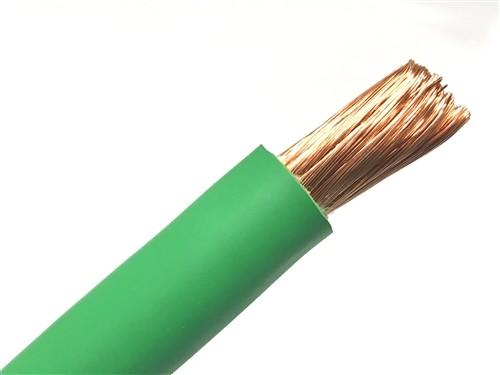

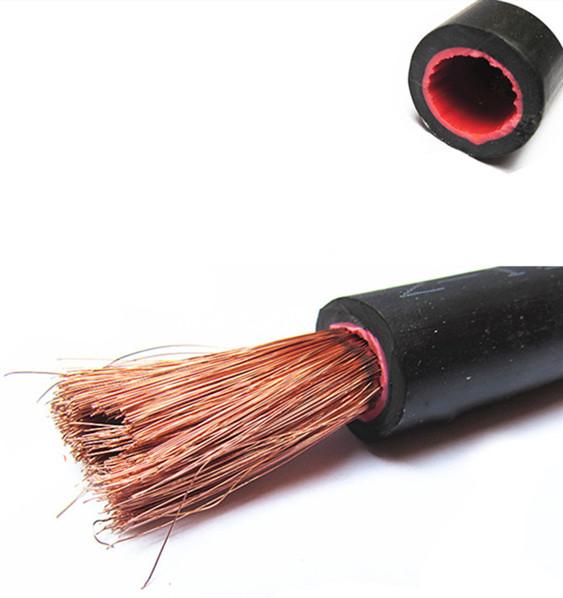

Size 1/0 2 Soft 600amp 35mm2 70mm2 flexible rubber superflex bare copper welding cable

Model: YH/YHF.
YH: cabtyre covered electric welder cable 60245 IEC 81.
YHF: chloroprene rubber or other man-made elastomer covered electric welder cable 60245 IEC 82.

Specification:
Section-area of conductor:10 sq mm,16 sq mm,25 sq mm,35 sq mm,50 sq mm,70 sq mm,95 sq mm,120 sq mm,150 sq mm,185 sq mm.
Welding wire/welding cables construction:
* Conductor: Fully annealed stranded bare copper per ASTM B-172.
* Jacket: Black or Red Ethylene Propylene Diene Monomer Rubber (EPDM)
* Additional Jacket Colors: Also available in orange, yellow, blue or green

Implementation of the standards: GB/T 5013-2008

Quality Standard: CCC,CE,ROhs,SGS,ISO 9001 certifications.
Rated voltage:450/750V

Soaked one hour, Wire subjected to alternating current 50Hz 250V (450 / 750V), 2000V (300 / 500V) voltage test 5 minutes without breakdown.
Operating temperature: Long-term operating temperature does not exceed the maximum 70 ℃.
Color: color of sheath:black, red; Also available in orange, yellow, blue or green.

Cross-section area (mm2)

Wire gauge (cores/mm)

Weight (kg/km)

Upper limit of OD (mm)

Maximum resistance at 20 ℃ (Ω/km)

10

322/0.2

146

9.7

1.91

16

513/0.2

218.9

11.5

1.16

25

798/0.2

316.6

13

0.758

35

1121/0.2

426

14.5

0.536

50

1596/0.25

592.47

17

0.379

70

2214/0.2

790

19.5

0.268

95

2997/0.2

1066.17

22

0.198

120

1702/0.3

1348.25

24

0.161

150

2135/0.3

1648.5

27

0.128
