Singlr Core Industrial Electrical Cable With Copper Conductor 450 / 750V Rated Voltage

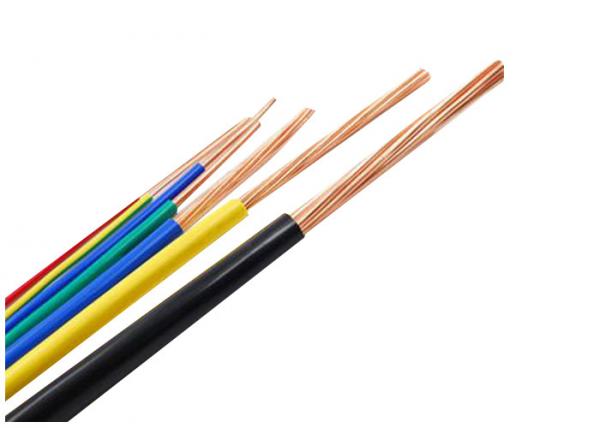

Singlr Core Industrial Electrical Cable With Copper Conductor 450 / 750V Rated Voltage image
Brand Name :
SHANCABLE
Model Number :
H07V-U
Certification :
ISO,CE,IEC,TUV,KEMA
Place of Origin :
Shanghai, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
100KM/Week
Delivery Time :
10 Days
Packaging Details :
Wooden Drum
Standard :
IEC 60227
Rated Voltage :
450/750V
Warranty :
2 years
Core :
Single
Sheath :
PVC
Conductor :
Pure Copper
Color :
As requirements
Singlr core Electrical Cable Wire with Copper Conductor 450 / 750V Rated Voltage H07V-U
Description:
1). Standard: RV,RVV,BV,BVV,H05VV-F,H03VV-F,H03VVH2-F,H05V2V2-F,H05V-K,H07V-K,H05V-U,H07V-U and so on
2). Material: PVC insulation
3). Conductor: 1,2,3,4 core,or multi-cores
4). Packing length: all length available
5). Section:0.5mm² to 10mm²
6). Color:all color available
Applications
The cable is suitble to be fixed wiring of power device, power lighting of home electric equipment and instrument, inner wiring of electric enquipment, instrument, eletron equipment, automatization device etc.
BVV 300/500V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 1×0.75 | 1×1/0.97 | 4.3 | 23 |
| 1×1.0 | 1×1/1.13 | 4.5 | 26.4 |
| 1×1.5(A) | 1×1/1.38 | 4.9 | 34.6 |
| 1×1.5(B) | 1×7/0.52 | 5.2 | 36.5 |
| 1X2.5(A) | 1×1/0.85 | 5.8 | 46.4 |
| 1X4(A) | 1×1/2.25 | 6.4 | 65.9 |
| 1X4(B) | 1×7/0.85 | 6.8 | 73.7 |
| 1X6(A) | 1×1/2.76 | 7.0 | 91.6 |
| 1X10 | 1×7/1.35 | 8.8 | 152.0 |
| 2X1.5(A) | 2×1/1.38 | 10.0 | 109 |
| 2X1.5(B) | 2×7/0.52 | 10.5 | 123 |
| 2X2.5(A) | 2×1/1.78 | 11.5 | 157 |
| 2X2.5(B) | 2×7/0.68 | 12.0 | 172 |
| 2X4(A) | 2×1/2.25 | 12.5 | 205 |
| 2X4(B) | 2×7/0.85 | 13.0 | 222 |
| 2X6(A) | 2×1/2.76 | 13.5 | 265 |
| 2X6(B) | 2×7/1.04 | 14.0 | 286 |
| 2X10 | 2×7/1.35 | 17.5 | 471 |
| 3X1.5(A) | 3×1/1.38 | 10.5 | 136 |
| 3X1.5(B) | 3×7/0.52 | 11.0 | 146 |
| 3X2.5(A) | 3×1/1.78 | 12.0 | 190 |
BVV 300/500V
| Nominal area of conductor | No./Dia. Of Conductor | Max.O.D | Approx.Weight |
| mm2 | mm | mm2 | kg/km |
| 3×2.5(B) | 3X7/0.68 | 12.5 | 207 |
| 3X4(A) | 3X1/2.25 | 13.0 | 252 |
| 3X4(B) | 3X7/0.85 | 13.5 | 272 |
| 3X6(A) | 3X1/2.76 | 14.5 | 344 |
| 3X10 | 3X7/1.35 | 19.0 | 574 |
| 4X1.5(A) | 4X1/1.38 | 11.5 | 164 |
| 4X1.5(B) | 4X7/0.52 | 12.0 | 174 |
| 4X2.5(B) | 4X7/0.68 | 13.5 | 252 |
| 4X4(A) | 4X1/2.25 | 14.5 | 321 |
| 4X4(B) | 4X7/0.85 | 15.0 | 346 |
| 4X6(A) | 4X1/1.04 | 16.0 | 470 |
| 4X6(B) | 4X7/2.76 | 17.0 | 439 |
| 5X1.5(A) | 5X1/1.38 | 12.0 | 192 |
| 5X1.5(B) | 5X7/0.52 | 12.5 | 205 |
| 5X2.5(A) | 5X1/1.78 | 14.0 | 272 |
| 5X2.5(B) | 5X7/0.68 | 14.5 | 292 |
| 5X4(A) | 5X1/2.25 | 16.0 | 397 |
| 5X4(B) | 5X7/0.85 | 17.0 | 418 |
| 5X6(A) | 5X1/2.76 | 17.5 | 518 |
| 5X6(B) | 5X7/1.04 | 18.5 | 550 |
Packing
a) Packing lengths: 100m/roll, 200m/roll, 305m/roll or up to your requirments
b) Inner packing: wooden reel,coil, plastic reel
c) Outer packing: carton box
d) Other packing available according to customer
Strict QC system
We have 4 testing programs to guarantee our quality during production: Self-inspection(Operators of each process will do self-inspection during theor work); Mutual-Inspection(Operator in next working process will do inpection for previous processes); Perform In-process quality audit(Inspectors from quality department will do spot inspection during production); Perform special inspection(inspectors from quality department will do special inspection for key processes)
We are China Singlr Core Industrial Electrical Cable With Copper Conductor 450 / 750V Rated Voltage manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
