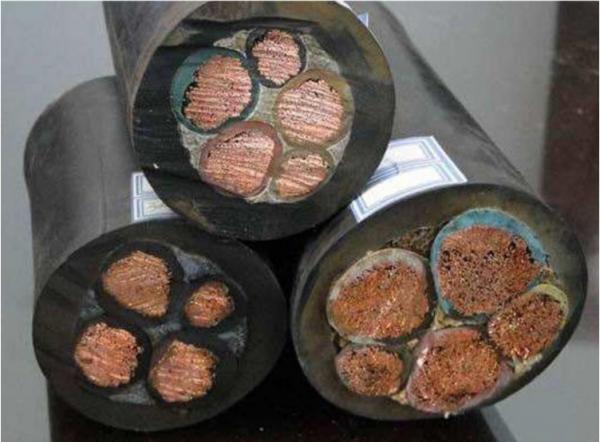

Single / Multi Core Heat Proof Electrical Wire , Pvc Insulated Power Cable
Single / Multi Core Heat Proof Electrical Wire , Pvc Insulated Power Cable image
Brand Name :
Huanghe
Model Number :
XLPE Insulated Copper Cable
Certification :
ISO OHSAS CCC IEC
Place of Origin :
China
MOQ :
200
Payment Terms :
TT/Western Union /LC
Supply Ability :
50000meters per week
Delivery Time :
5-8days
Packaging Details :
wooden drum
Material :
XLPE PVC PE
Size :
1cores 2 cores 3 cores 4 cores 5 cores
color :
Black and customized
Original :
china henan
insulation :
PVC
Sheath :
PVC
Single / Multi Core Heat Proof Electrical Wire , Pvc Insulated Power Cable
0.6/1kV Power Cable:
Cu(Al)/XLPE/PVC, Cu(Al)/XLPE/STP/PVC, Cu(Al)/XLPE/SWA/PVC,Cu(Al)/PVC/PVC, Cu(Al)/PVC/STP/PVC, Cu(Al)/PVC/SWA/PVC,NZXY, NZXBY, NZX, NYY, NYBY
1). Standard: IEC60502, GB/T12706
2). Voltage: 0.6/1kV
3). Nominal cross-sectional areas: 1.5mm2, 2.5 mm2, 4 mm2, 6 mm2, 10mm2, 16mm2, 25mm2, 35mm2, 50mm2, 70mm2, 95mm2, 120mm2, 150mm2, 185mm2, 240mm2, 300mm2, 400mm2, 500mm2, 630mm2, 800mm2
4). Production range: Single core cable from 1.5mm2 to 800mm2; Multi-core cable from 1.5mm2 to 400mm2
5). Operating characteristics:
Rated power-frequency voltage U0/U: 0.6/1kV
Max. Permissible continuous operating temperature of conductor: 90°C
Max. Short-circuit temperature of the conductor shall not exceed(Max. 5 seconds duration): 250°C
The ambient temperature under installations should not be below 0 °C
The bending radius of single core cable should not be less than 20 times of the cable diameter; The bending radius of multi-core cable should not be less than 15 times of the cable diameter.
CU/XLPE/PVC LV Cable, XLPE insulated PVC sheathed 0.6/1kV Power Cable
| Type | Name | Usage |
| VV | PVC insulated PVC sheathed power cable | Can be laid at indoor, tunnel and tube .Cable cannot under take mechanism outside force |
| VLV | ||
| VY | PVC insulated and PE sheathed power cable | Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force |
| VLY | ||
| VLV | PVC insulated steel belt armored and PVC sheathed power cable | Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force |
| VLV22 | ||
| VV23 | PVC insulated steel belt armored and PE sheathed power cable | Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force |
| VLV23 | ||
| VV32 | PVC insulated fine steel wire armored PVC sheathed power cable | Can be laid at indoor, underground and mining well .Cable can undertake mechanism outside force |
| VLV32 | ||
| VV33 | PVC insulated fine steel wire armored PE sheathed power cable | Can be laid at indoor, underground .Cable can undertake mechanism outside force |
| VLV33 | ||
| VV42 | PVC insulated thick steel wire armored PE sheathed power cable | Can be laid at indoor, underground, mining well .Cable can undertake mechanism outside force |
| VLV42 | ||
|
VV43 VLV43 |
PVC insulated fine steel wire armored PVC sheathed power cable | Can be laid at indoor, underground, mining well and the places of be terrible polluted. Cable can undertake mechanism outside force |
CU/XLPE/PVC LV Cable, XLPE insulated PVC sheathed 0.6/1kV Power Cable
We are China Single / Multi Core Heat Proof Electrical Wire , Pvc Insulated Power Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
