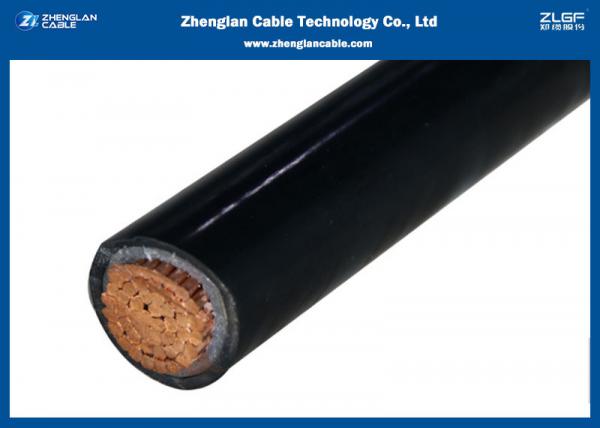

Single Core Copper PVC Insulated Cables 1.5mm 2.5mm 4mm 6mm 10mm Power Cable （AL/CU/PVC/LSZH/DSTA）
Single Core Copper PVC Insulated Cables 1.5mm 2.5mm 4mm 6mm 10mm Power Cable （AL/CU/PVC/LSZH/DSTA） image
Brand Name :
Zhenglan cable
Model Number :
RVVB, RV, RVVP, RV-90, RVS-#7857
Certification :
3C，ISO 9001:2015，ISO 14001:2005
Place of Origin :
Henan, China
MOQ :
100 meters
Payment Terms :
L/C, T/T, Western Union
Delivery Time :
15-30 days
Packaging Details :
100 feet in coil or other as customized
Conductor Material :
AL/CU
Sheath :
PVC
Rated Voltage :
450/750 V
Conductor Type :
Stranded or solid
Application :
House hold Wiring
Place of Origin:Henan, China (Mainland)
Brand Name:ZHENGLAN
Model Number:RV
Type:Insulated
Application: House hold Wiring
Rated Voltage: 450/750 V
Color:Red/Yellow/Blue/Green/Black…
Conductor Material:100% oxygen-free Copper
Conductor Type:Stranded or solid
Insulation Material:PVC
Packaging Details:100 feet in coil or other as customized
Descriptions
Constructions
1. Conductor: Flexible copper conductor,comform to IEC 60228 class 5
2. Insulation:PVC/D
3.Sheath:PVC type ST5
Applications
Used in the switch control, relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equipment, motor starters and controllers.
Standards
International:IEC 60227
China:GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
Technical data:
Rate voltage:300/500v
Max.Conductor Temp. in normal use: 70℃
Min. Bending Radius: 6 x cable O.D
Why Choose Zhenglan Cable:
>22 years experiences for wire and cable industry
>OEM/ODM services provided>Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted
>Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007
>Registered capital of $30 million and factory covers an area of 60,000㎡>Advanced test equipment and procedures, 100% inspection before factory
>Enough stocks and the higest efficient shipping time guarranteed
>Professional pre-sales and after-sales services provided
| Type | Name | Applicationh |
| BV,BLV | Copper Conductor,PVC Insulated Wire Aluminium Conductor,PVC Insulated Wire |
Fixed laid in the circumstance of indoor,conduit etc. |
| BV | Heat Resistant Copper Conductor PVC Insulated Wire at 90 °C |
Fixed laid in the circumstance of high temperature environment and can be laid indoor,conduit etc. |
| BVR | Copper Conductor ,PVC Insulated Flexible Wire | Fixed laid where flexibility is required |
| BVV | Copper Conductor ,PVC Insulated and PVC Sheathed Roung Wire | Fixed laid where high mechanical protaction and moisture are required. They can be laid in the air or underground. |
| BLVV | Aluminium Conductor, PVC Insulated and PVC Sheathed Roung Wire | Fixed laid where high mechanical protaction and moisture are required. They can be laid in the air or underground. |
| BVVB | Copper Conductor, PVC Insulated and PVC Sheathed Flat Wire | Fixed laid where high mechanical protaction and moisture are required. They can be laid in the air or underground. |
| BLVVB | Aluminium Conductor, PVC Insulated and PVC Sheathed Flat Wire | Fixed laid where high mechanical protaction and moisture are required. They can be laid in the air or underground. |
| RV | Copper Conductor , PVC Insulated Flexible Wire | Mainly used at middle and light type movable equipment.Instrument and metess,power and lighting and the places where flexibility is required. |
| RVB | Copper Conductor , PVC Insulated Flat Flexible Wire | Mainly used at middle and light type movable equipment.Instrument and metess,power and lighting and the places where flexibility is required. |
| RVS | Copper Conductor , PVC Insulated Flexible Twisting Connector | Mainly used at middle and light type movable equipment.Instrument and metess,power and lighting and the places where flexibility is required. |
| RVV | Copper Conductor, PVC Insulated and PVC Sheathed Roung Wire (Light and Common Type) | Mainly used at middle and light type movable equipment.Instrument and metess,power and lighting and the places where flexibility is required. |
We are China Single Core Copper PVC Insulated Cables 1.5mm 2.5mm 4mm 6mm 10mm Power Cable （AL/CU/PVC/LSZH/DSTA） manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
