Single Core 5.5mm2 THHN Nylon Electric Wire 17AWG Plain Annealed

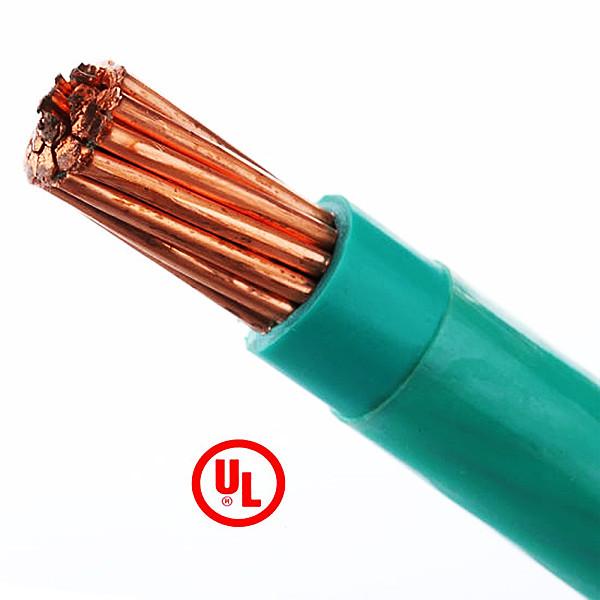

Single Core 5.5mm2 THHN Nylon Electric Wire 17AWG Plain Annealed image
Brand Name :
Hongyan, Hong Xing Yan.
Model Number :
Nylon Wire
Certification :
ISO9001, CCC, CE, SAA, RoHS and Others.
Place of Origin :
Shenzhen City, China.
MOQ :
5000 meters each size/specification in an order.
Price :
USD 0.58 per meters.
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
100,000 meters per day.
Delivery Time :
Within 5-7 working days as soon as we received the deposit.
Packaging Details :
100 Yards per roll, the Rolls will be Loaded on Wooden Pallet, the Pallets must be Showed IPPC Logo.
Product Name :
Single Core 5.5 MM2 THHN Nylon Electric Wire and Cables Wholesales Price
Product Keywords :
THHN, THWN, Nylon Wire, UL 83 THHN, 5.5MM2 Wire and Cables.
Product Conductor :
Plain Annealed Copper Wires.
Insulated Material :
PVC With Nylon
Insulated Colour :
Brown, blue, red, yellow, green, black, yellow/green, or others.
Sheath Material :
Non-sheath
Voltage Rate :
600V (U0/U)
Production Standard :
UL 83.
Product Size :
17AWG to 4/0 AWG
Core Number :
Single Core, 1C.
Single Core 5.5 MM2 THHN Nylon Electric Wire and Cables Wholesales Price
PRODUCTS KEY-WORDS
THHN, THWN, Nylon Wires, UL 83 Nylon Electric Cables, 5.5mm2 Nylon Building Wires.
PRODUCTS DESCRIPTION
Model Number: 5.5 MM2 THHN Wires
Rated Voltage: 600V
Stranded: UL83
Conductor Type: Stranded
Conductor Material: Annealed Copper
Insulation: PVC
Jacket Material: Nylon
Jacket Color: Red, Black, Green, Blue, Yellow, White, And Others.
No. Of Conductor: Single Core
Size Of Conductor: 14/7
Conduit Compatible: Yes
Moisture Resistant: Yes
UV Resistant: Yes
PRODUCT APPLICATION
Single Core 5.5 MM2 THHN Nylon Electric Wire and Cables Wholesales Price, 600V. 5.5 MM2 THHN Wire is a common building cable specification,suitable for the Residential, Commercial, Industrial, and other buildings,various electronic equipment. It has the characteristics of flame retardancy, moisture resistance, gasoline resistance, etc. Shenzhen Hongyan is a professional wire & cable manufacture since 1999 of production experience, we provide high-quality THHN wire at wholesale price..
PRODUCTS DATA
<td colspan="1" rowspan="1" style="box-sizing: border-
We are China Single Core 5.5mm2 THHN Nylon Electric Wire 17AWG Plain Annealed manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 17AWG Electrical Copper Wire, 5.5mm2 Nylon Electric Wire, Customized Wire And Cables, THHN Nylon Electric WireSimilar Or Related
Quick Contact
If you have any questions or would like to book a session please contact us.
FAST AND RELIABLE SERVICE FOR YOUR PROJECT
Contact our trained experts today to find your perfect power solution.
ASK A QUESTION
An integrated cable and wire solution provider,for the transmission and distribution of electricity that connect the world.
© 2021-2025 Galaxy Electric SWIFT Code lookup Country Code Sitemap Cable Cable Drum
| SIZE OF CONDUCTOR | No.&Nominal Diameter of Wire | Wall Thickness | Approximate Overall Diameter | Minimum Insulation Resistance | *Ampacity | Cable Nominal Weight | |||
| MM | Approximate AWG | MM | MM | MM | M-Ohm-Km | 90℃ wet | 90 ℃ dry | KG/KM | |
| Solid | PVC | Nylon | |||||||
| 1.6mm | 14 | 1×1.60mm | 0.4 | 0.10 | 2.60 | 130 | 35 | 35 | 22.62 |
| 2.0 mm | 12 | 1×2.00mm | 0.4 | 0.10 | 3.00 | 110 | 40 | 40 | 33.57 |
| 2.6 mm | 10 | 1×2.60mm | 0.5 | 0.10 | 3.80 | 120 | 55 | 55 | 55.78 |
| 3.2 mm | 8 | 1×3.20mm | 0.8 | 0.13 | 5.06 | 120 | 75 | 75 | 88.33 |
| Stranded | |||||||||
| 2.0mm2 | 14/7 | 7X0.60mm | 0.4 | 0.10 | 2.80 | 130 | 30 | 35 | 23.51 |
| 3.5mm2 | 12/7 | 7×0.80mm | 0.4 | 0.10 | 3.40 | 110 | 35 | 40 | 39.12 |
| 5.5mm2 | 10/7 | 7×1.00mm | 0.5 | 0.10 | 4.20 | 120 | 50 | 55 | 60.56 |
| 8.0mm2 | 8/7 | 7×1.20mm | 0.8 | 0.13 | 5.46 | 120 | 65 | 75 | 91.95 |
| 14mm2 | 6/7 | 7×1.60mm | 0.8 | 0.13 | 6.66 | 100 | 95 | 105 | 151.77 |
| 22mm2 | 4/7 | 7×2.00mm | 1.0 | 0.15 | 8.30 | 100 | 130 | 140 | 236.65 |
| 30mm2 | 2/7 | 7×2.30mm | 1.0 | 0.15 | 9.20 | 100 | 160 | 170 | 306.50 |
| 38mm2 | 1-19 | 19×1.60mm | 1.3 | 0.18 | 10.96 | 100 | 185 | 195 | 409.82 |
| 50mm2 | 1/0-19 | 19×1.80mm | 1.3 | 0.18 | 11.96 | 100 | 220 | 235 | 509.05 |
| 60mm2 | 2/0-19 | 19×2.00mm | 1.3 | 0.18 | 12.96 | 80 | 250 | 260 | 618.96 |
| 80mm2 | 3/0-19 | 19×2.30mm | 1.3 | 0.18 | 14.96 | 80 | 300 | 320 | 804.44 |
| 100mm2 | 4/0-19 | 19×2.60mm | 1.3 | 0.18 | 15.96 | 80 | 355 | 370 | 1013.94 |
| 125mm2 | 250MCM | 37×2.10mm | 1.6 | 0.18 | 18.26 | 80 | 400 | 420 | 1296.37 |
| 150mm2 | 300MCM | 37×2.30mm | 1.6 | 0.20 | 19.7 | 80 | 440 | 475 | 1542.02 |
| 350MCM | 37×2.47mm | 1.6 | 0.20 | 20.90 | 60 | 505 | 523 | 1783.07 | |
| 200mm2 | 400MCM | 37×2.60mm | 1.6 | 0.20 | 21.80 | 60 | 540 | 570 | 1946.72 |
| 500MCM | 37×2.95mm | 1.6 | 0.20 | 24.25 | 60 | 620 | 655 | 2486.02 | |
| 250mm2 | 500MCM | 61×2.30mm | 1.6 | 0.20 | 24.30 | 60 | 620 | 655 | 2437.34 |
| 600MCM | 61×2.52mm | 1.8 | 0.23 | 26.76 | 60 | 690 | 710 | 2995.93 | |
| 325mm2 | 650MCM | 61×2.60mm | 1.8 | 0.23 | 27.46 | 60 | 720 | 770 | 3191.58 |
| 750MCM | 61×2.82mm | 1.8 | 0.23 | 29.36 | 60 | 785 | |||
