SFTP Shielded Cat 7 Network Cable Twisted Pair Ethernet Cable PVC LSZH CE ROHS

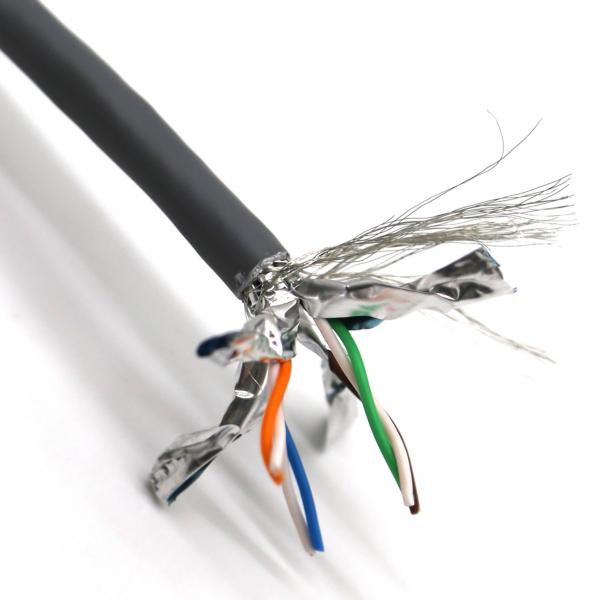

SFTP Shielded Cat 7 Network Cable Twisted Pair Ethernet Cable PVC LSZH CE ROHS image
Brand Name :
JHY CABLE
Model Number :
network cable
Certification :
RoHS/CE/CCC
Place of Origin :
SHENZHEN CHINA
MOQ :
50 boxes
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
20 kilometer/ day
Delivery Time :
10~15 working days
Packaging Details :
305 meters per box or according to the customer’s request.
Conductor :
Bare Copper
Type :
Cat7
Insulation Material :
HDPE
Shielded Material :
Aluminum Foil and braiding
Jacket Material :
PVC LSZH
Cable length :
305M 1000ft
Certificate :
CE ROHS
Application :
PC, ADSL, network Module Plate, Wall Socket, etc
Jinhuanyu SFTP shielded Cat 7 network cable twisted pair ethernet cable
Production Description:
1. Construction of Cat7 cable
- Solid, annealed bare copper wire (Dia. 23 AWG) insulated with High density Polyethylene(HDPE).
- Two insulated conductors twisted together to form a pair and four such pairs laid up to form the basic unit.
- The cable is shielded with an overall polyester aluminum foil and is jacketed with PVC or LSZH sheath
- Maximum operating temperature: 70℃
-
Minimum bending radiu: 4 x cable diameter
2. Core Identification
3. Production Specifications
| Conductor Material | BC / CCA |
| Conductor | 23 AWG(0.575±0.005mm) |
| Meters | 305m / Customized |
| Number of Conductor | 4 Pairs |
| Insulation Material | HDPE |
| Shielded material |
Aluminium Foil |
| Sheath material | PVC or LSZH |
|
Characteristic Impedance (Frequency: 1-200 MHz) |
100 ± 15 ohms |
|
DC Resistance , maximum at 20℃ |
15 ohms/100 m |
|
Propagation delay at100 MHz (ns/100m) |
<534+36√(Freq) |
|
Mutual Capacitance |
4.8 nF/100 m @ 1 kHz |
|
Coupling attenuation at 30℃ |
45MHz(dB) |
|
Operating Frequency, maximum |
100 MHz |
4. Features
- 4-Pair – Easily Identified Color-Striped Pairs
- Excellent Attenuation And Crosstalk Characteristics
- High-Performance Data Communications Cable
- Suitable For 10G High Speed Data Applications, Gigabit Ethernet, Fast Ethernet And 155Mbps TP-PMD/CDDI
5. Company Certificates
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
6. Application
- Data Center System
- 10GBASE-T Ethernet
- 155 Mbps ATM
- 550 MHz Broadband Video
- ATM LAN 1.2G
7. Tabular data
Construction
| 1. Conductor material: | Solid bare copper | |
| 2. Insulation material: | HDPE (High density Polyethylene) | |
| 3.Shielding material: | AL, AM,TC | |
| 3. sheath material: | PVC | |
| 4. Rip cord: | Nylon |
Packaging
| Approx.Weight | Package | Package Dimension(cm) | Outer packing |
| 12.2 kg | 305 m per box | 42 x 42 x 24 |
Carton box |
8. Product Image
Product package
9. Company certificate
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
