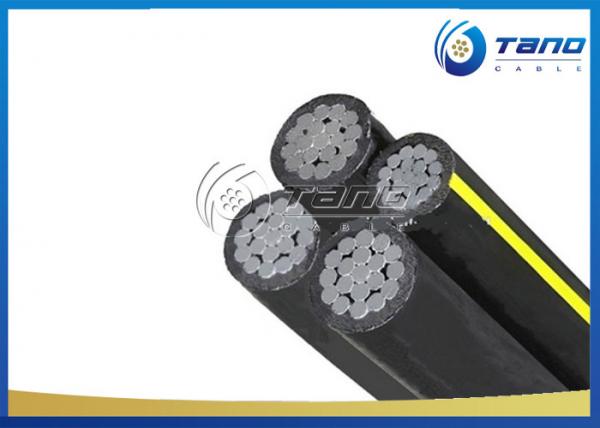

Service Drop Aluminum Cable Quadruplex 3+1 Core Overhead Abc Cable 3x2AWG+1x1AWG

Service Drop Aluminum Cable Quadruplex 3+1 Core Overhead Abc Cable 3x2AWG+1x1AWG image

Get a Quote Email to us

Brand Name :
TANO CABLE

Model Number :
Quadruplex 3+1 core overhead abc cable 3x2AWG+1x1AWG

Certification :
ISO CCC CE

Place of Origin :
China

MOQ :
2000 Meters

Price :
Negotiable

Payment Terms :
L/C, T/T, Western Union, MoneyGram

Supply Ability :
500000 Km per Month

Delivery Time :
7-20 days

Packaging Details :
Wood Wood/Steel Drum

Conductor material :
Aluminum

Insulation material :
PE/XLPE

Standard :
ASTM

Color :
Black,Customized

Rated voltage :
0.6/1KV

Package :
wooden drum

Sample :
free sample available

Service Drop Aluminum Cable Quadruplex 3+1 core overhead abc cable 3x2AWG+1x1AWG

1. High Quality-International Standard; 2. Reasonal Price; 3. 30-60 Years Lifetime and even longer ; 4. Short Delivery Time; 5. One Year Warranty

Product Detail

Insulation Color(s)	Natural / Red / Yellow / Blue / Green etc.
No. of Cores	3+1+1 core or muti cores
Packing Length	As your request
Rated Voltage	0.6/1kV
Enterprise Type	Factory ( Manufacturer )
Certificate	ISO 14001 / ISO 9001 / OHASA 18001 / CCC
Warranty	One Year
Design Standard	IEC 60502
Conductor Material	AAC / AAAC / ACSR or other
Product Keywords	Aluminum 600V ABC Cable

1. Applications
Aerial Bundle Cable (ABC cable) is a very innovative concept for overhead power distribution as compared to the conventional bare conductor overhead distribution system. It provides higher level of safety and reliability, lower power losses and ultimate system economy by reducing installation, maintenance and operative cost.

HONGDA POWER LV Aerial Bundle Cables are designed to supply 600/1000 volt aerial service for temporary service at construction sites, as a service drop (power pole to service entrance),as a secondary cable (pole to pole) or street lighting. This over-head cable provides reinforced insulation acc.

2. Standards

GB/T12527,GB/T1179 ,IEC60502 ,NFC 33-209 ,BS 7870 ,ANSI/ICEA S-76-474AS/NZS 3560.1 etc.

*HONGDA POWER can also design and produce for special application requirement.

Part of Technical Parameter:

Number of Cores x Nominal Cross Section	Overall Diameter	Weight	Maximum Conductor Resistance	Minimum Breaking Load	Current Rating
No.×mm²	mm	Kg/Km	Ω/Km	kN	A
1×16 RM	8,0	74	1910	2,5	72
1×25 RM	9,0	106	1200	4,0	107
1×240 RM	24,0	801	0,125	37,2	467
2×16 RM	15,6	147	1910	2,5	72
2×25 RM	18,0	208	1200	4,0	107
2×35 RM	20,0	277	0,868	5,5	132
4×70 RM	31,8	1.009	0,443	10,7	205
4×95 RM	37,8	1.332	0,320	13,7	240
4×120 RM	54,4	1.632	0,253	18,6	290
4×50 + 1×25 RM	319	814	0,641/1,200	8,0/4,0	165/107
4×50 + 1×35 RM	319	845	0,641/0,868	8,5/5,5	165/132
4×70 + 1×25 RM	360	1105	0,443/1,200	10,7/4,0	205/107
4×120 + 1×25 RM	590	2050	0,253/1,200	18,6/4,0	290/107

Package and shipping

Customer visit

OUR SERVICE

1. Design wire and cable according to your real application

2. Optimized reel size for freight cost saving

3. Customized package to feature your brand

4. Short lead time to meet your urgent demand

5. Diversified delivery terms for your options

6. Quick response (24 hours on line)

7. Professional knowledge for clear answer to your any question

8. Comprehensive technical documents to support your tender bidding

9. One-year limited warranty for our wire and cable

10. Cable sample available

11. Specify the cable only according to the location

12. OEM is available

13. Abundant cables and wires for your option

We are China Service Drop Aluminum Cable Quadruplex 3+1 Core Overhead Abc Cable 3x2AWG+1x1AWG manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
