Self Supporting System Overhead Insulated Cable Aluminum Conductor XLPE Insulated 2, 3, 4, 5core Aerial bundled cable

Self Supporting System Overhead Insulated Cable Aluminum Conductor XLPE Insulated 2, 3, 4, 5core Aerial bundled cable image

Get a Quote Email to us

Brand Name :
Zhenglan Cable

Model Number :
ABC Cable

Certification :
3C，ISO 9001:2015，ISO 14001:2005

Place of Origin :
Henan, China

MOQ :
1000 meters

Payment Terms :
L/C, T/T,Western Union

Supply Ability :
100Km/Month

Delivery Time :
15-20 days

Packaging Details :
Wooden case, wooden-steel case, coil or plastic drumor customized

Price :
0.1-100USD/m

Insulation Material :
XLPE

Conductor Material :
Aluminum

Application :
Overhead

Quality :
100% test

Model :
Self Supporting System Overhead Insulated Cable Aluminum Conductor XLPE Insulated 2, 3, 4, 5core Aerial bundled cable

structure :
AL/XLPE or al/xlpe+bare al alloy

Standard :
IEC60502-1, NFC33209,

Self Supporting System Overhead Insulated Cable Aluminum Conductor XLPE Insulated 2, 3, 4, 5core Aerial bundled cable

Self Supporting System Overhead Insulated Cable Aluminum Conductor XLPE Insulated 2, 3, 4, 5core Aerial bundled cable Application:

This cable usually used for urban and rural overhead secondary distribution networks, with voltages up to 1000 V. They permit longer spans, lower mounting, minimum support, and simplified installation, particularly among trees or in congested areas. It also offers maximum personnel safety and protection against outage. Resistance to abrasion, flexing, and effects of heat, moisture, sunlight and cold assure high dependability through long years of services.

Self Supporting System Overhead Insulated Cable Aluminum Conductor XLPE Insulated 2, 3, 4, 5core Aerial bundled cable data sheets:

Cable Size	Current Rating (Note 1)	Short Circuit Rating (Note 2)	Conductor Resistance @ 20°C	Conductor Resistance (ac) @ 80°C	Self Supporting System		Supporting Core System
					Induction Reactance @ 50Hz	Impendance (z) @ 50Hz at 80°C	Supporting Core Size	Induction Reactance @ 50Hz	Impendance (z) @ 50Hz at 80°C
mm²	(A)	kA	( /km)	( /km)	( /km)	( /km)	mm²	( /km)	( /km)
25	105	2.3	1.200	1.490	0.096	1.493	54.6	0.101	1.493
35	144	3.2	0.868	1.078	0.096	1.082	54.6	0.097	1.082
50	183	4.6	0.641	0.796	0.090	0.801	54.6	0.089	0.801
70	228	6.4	0.443	0.550	0.089	0.557	54.6	0.086	0.557
95	277	8.5	0.320	0.397	0.086	0.406	54.6	0.081	0.405
120	322	11.0	0.253	0.314	0.084	0.325	70	0.079	0.324
150	350	13.8	0.206	0.256	0.082	0.269	95	0.079	0.268

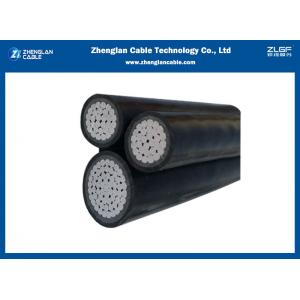

Self Supporting System Overhead Insulated Cable Aluminum Conductor XLPE Insulated 2, 3, 4, 5core Aerial bundled cable picture:

About us

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

The main products of the company are 9 major categories, 10 product series and 60 varieties, including all kinds of bare wires, power cables (cross-linked cables, plastic cables, etc.) special cables (fire retardant, fire resistant, low smoke and halogen free cables), control cables, overhead insulated cables, cloth and wires, tec. The company’s leading products include 1KV, 10-35KV XLPE cables, plastic cables, irradiated cables, special cables, overhead conductors and so on.

We are China Self Supporting System Overhead Insulated Cable Aluminum Conductor XLPE Insulated 2, 3, 4, 5core Aerial bundled cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
