Self Support Tubular Telecom Tower 15 – 60m Height For Signal Transmission

Self Support Tubular Telecom Tower 15 – 60m Height For Signal Transmission image

Get a Quote Email to us

Brand Name :
Suntech

Model Number :
Telecom Tower

Certification :
ISO

Place of Origin :
China

MOQ :
1 Tower

Price :
Get the latest prices

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
50000 Metric Ton/Metric Tons Per Year

Delivery Time :
30 days after deposit

Packaging Details :
Exported Containers

Product Name :
Self Support Tower

Material :
Steel

Type :
Tubular Tower

Legged :
3 Legged or 4 Legged

Surface Treatment :
Hot Dip Galvanised

Usage :
Construction Site

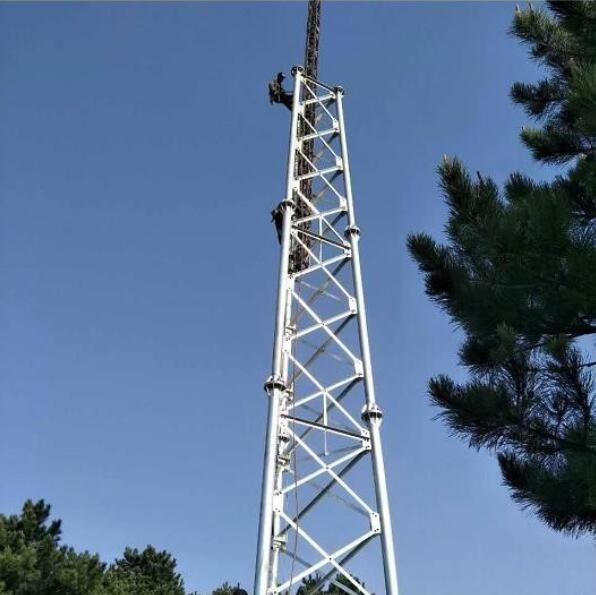

Tubular Telecom Tower Communication Tower Self Support Signal Transmission

High quality tubular telecom self supporting communication tower is a type of signal transmission tower, also called a signal transmission tower or a signal tower. Its main function is to support signal transmission and to support signal transmission antennas.
There are the following communication towers: angle steel four-post communication tower, steel pipe three-post communication tower, single-pole communication tower (beautified, bionic tree, light pole), lifting communication tower, and movable communication tower.

Fabrication

As outlined throughout our company profile, we have the in-house fabrication facilities to manufacture complete series of telecom tower ,monopole ,landscape monopole,

camouflage tree monopole ,self-supporting tower,RDS(rapid deployment sites),and camouflage antenna(air-conditioner;chinmey;water tank) with quick delivery at competitive

prices. Let us provide you a quotation.

Product Description

Products	Wireless Communication Towers Antenna Pole Telecommunication Towers for Signal Transmission
Height	15-60m
Applications	Telecommunication, Broadcasting, etc
Shape	Conical, Round, Polygonal (Octagonal, Dodecagonal, Hexadecagonal, etc)
Material	Hot Roll Steel Q235, Q345, Q420, Q460, ASTM A527 A36, GR50, GR65, ST-37, ST-44, ST-52, S355JR, S355J2G3, SS41, SS50, SS55 and others equivalent steel material
Surface Treatment	Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 or American standard ASTM A123 or AS/NZS 4680:2006 Can be powder coated or painted according to clients' request
Wall Thickness	2~30mm
Once Forming	16m Once forming without joint
Welding	Welding of cell monopole tower complies with AWS D1.1 standard. CO2 welding or submerged arc auto methods No fissure, scar, overlap, layer or other defects Internal and external welding makes cell monopole tower more beautiful in shape If customers need any other requirements of welding on cell monopole tower , we also can make adjustment ad your request
Joint	Cell monopole tower is jointed with insert mode, flange mode.
Base plate	Base plate is square/round/Polygon with slotted holes for anchor bolt and dimension as per client’s requirement.
Life Period	More than 25 years, it is according to installing environment

Design

Tell us your requirements and we will design and detail a complete antenna support structure to meet your needs. All tower design is done in complete

conformance with the latest revision of Telecommunications Industries Association standard TIA/EIA-222-G/F, “Structural Standards for Steel Antenna and Antenna Supporting Structures” and other industry standards, as applicable

We are China Self Support Tubular Telecom Tower 15 – 60m Height For Signal Transmission manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
