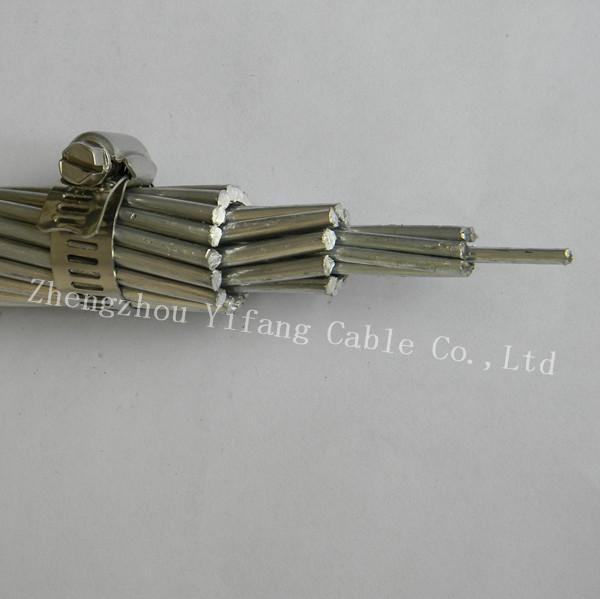

SCA 50mm2- Aluminum Conductor Steel Reinforced Conductor BS215,ASTMB232,IEC61089,EN50182
SCA 50mm2- Aluminum Conductor Steel Reinforced Conductor BS215,ASTMB232,IEC61089,EN50182 image
Brand Name :
YIFANG
Model Number :
ASCR
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1000meters
Price :
USD/M or USD/Ton
Supply Ability :
2000KM per month
Packaging Details :
drums
Material :
Steel wire& Aluminum wire
Strandard :
BS215 and ASTM B232,or other international standard
Sheath :
Bare conductor
Package :
Wooden drums
ACSR according to IEC61089, BS215, CSA 61089, ASTM B-232, DIN 48204 standards
Widely used in power transmission lines with various voltage levels, and also used in power lines across great rivers, heavy ice area, and more, with special geographical situation
Excellent advantage of high strength, large current carrying capacity and good catenary property as well as wear-resistance, anti-crush and corrosion-proof with simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity
Galvanized steel core of 1, 7 or 19 wires surrounded by concentric layers of aluminum wire When a conductor with a high current carrying capacity and comparatively low strength is required, special constructions are available with a high aluminum content
A coating of non-oxidizing grease is normally applied to the steel cores of all conductors, in addition to the protection offered by the galvanizing of the steel wires
One or more layers of the aluminum wires can, if required, be supplied partially or fully greased
Main code name available
Compliant with ISO, CE, SGS, SONCAP and BV standards
| Code name | Nominal aluminum area mm 2 | Stranding structure | Sectional area of aluminum | Sectional area of galvanized steel | Total sectional area | Overall diameter | Calculated breaking load | Calculate D.C resistance at 20degree | Final modulus of elasticity | Coefficient of linear expansion | ||||
| Total | ||||||||||||||
| Al. No. | Al. Dia. | St. No. | St. Dia | mm 2 | mm 2 | mm 2 | mm | kg/km | daN | Ω/km | hBar | / degree | ||
| Mole | 10 | 6 | 1.50 | 1 | 1.50 | 10.62 | 1.77 | 12.39 | 4.50 | 43 | 414 | 2.7060 | 7900 | 19.1Χ10 -6 |
| Squirrel | 20 | 6 | 2.11 | 1 | 2.11 | 20.94 | 3.50 | 24.43 | 6.33 | 85 | 788 | 1.3659 | 7900 | 19. lΧ10 -6 |
| Gopher | 25 | 6 | 2.36 | 1 | 2.36 | 26.24 | 4.37 | 30.62 | 7.08 | 106 | 961 | 1.0930 | 7900 | 19.1Χ10 -6 |
| Weasel | 30 | 6 | 2.59 | 1 | 2.59 | 31.61 | 5.27 | 36.88 | 7.77 | 128 | 1146 | 0.9077 | 7900 | 19.1Χ10 -6 |
| Fox | 35 | 6 | 2.79 | 1 | 2.79 | 36.66 | 6.11 | 42.77 | 8.37 | 149 | 1320 | 0.7822 | 7900 | 19.1Χ10 -6 |
| Ferret | 40 | 6 | 3.00 | 1 | 3.00 | 42.41 | 7.07 | 49.48 | 9.00 | 172 | 1520 | 0.6766 | 7900 | 19.1Χ10 -6 |
| Rabbit | 50 | 6 | 3.35 | 1 | 3.35 | 52.88 | 8.81 | 61.70 | 10.05 | 214 | 1835 | 0.5426 | 7900 | 19.1Χ10 -6 |
| Mink | 60 | 6 | 3.66 | 1 | 3.66 | 63.18 | 10.52 | 73.71 | 10.98 | 255 | 2180 | 0.4545 | 7900 | 19.1Χ10 -6 |
| Skunk | 60 | 12 | 2.59 | 7 | 2.59 | 63.27 | 36.88 | 100.30 | 12.95 | 465 | 5300 | 0.4567 | 7900 | 15.3Χ10 -6 |
Certifications
We have the ISO , CCC, UL ,KEMA or other certifications. Meanwhile,It support to inspect the goods by the third party inspection company.
PACKAGES
The cables is loaded into the container in our factory. It can keep everything in control.
