SA-YZ4*45 OPGW Installation Tools Hydraulic 4*5 grooves cable stringing puller tensioner

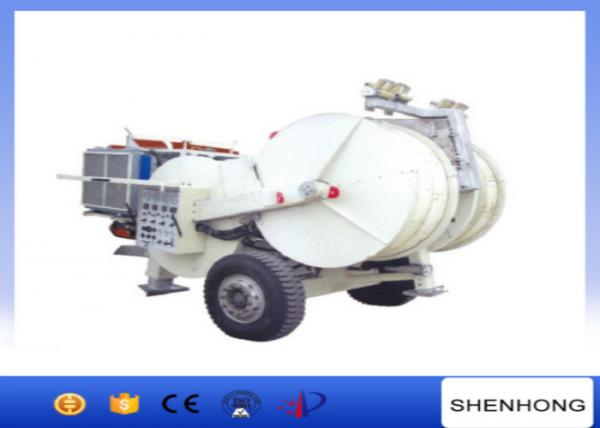

SA-YZ4*45 OPGW Installation Tools Hydraulic 4*5 grooves cable stringing puller tensioner image
Brand Name :
SHENHONG
Model Number :
SA-YZ4*45
Certification :
BV,ISO
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 Set/Sets per Month
Delivery Time :
20 days after deposit
Packaging Details :
pv plastic
Application :
construction
Maximum tension :
4*45 or 2*90KN
Continuous tension :
4*40 or 2*80KN
Maximum speed :
5km/h
Number of grooves :
4*5
Weight :
11500KG
SA-YZ4*45 Hydraulic 4*5 grooves cable stringing puller tensioner
Application
It is adequate to tension releasing various conducts and earthwires, and it as one pull four or one pull two using.
Feature :
1. Bullwheel with wearproof MC nylon lining segments.
2. Infinitely variable tension control and constant tension conductor stringing .
3. Spring applied hydraulic released brake acts automatically in case of hydraulic failure to ensure safety .
4. Attached four sets of hydraulic power output interface to connect hydraulic conductor reel stand.
Main component
1.Engine :Deutz water-cooled diesel engine .
2.Main pump and main motor : Rexroth(BOSCH)
3.Reducer : RR(Italian)
4.Hydraulic instrument :
5.Main hydraulic valve:Rexroth(BOSCH)
Technical data of SA-YZ4*45 Hydraulic 4*5 grooves cable stringing puller tensioner
| Model Type | SA-YZ4*45 |
| Maximum Tension(KN) | 4*45 or 2*90 |
| Continuous Tension(KN) | 4*40 or 2*90 |
| Maximum speed(km/h) | 5 |
| Bullwheel bottom of groove diameter(mm) | Φ1500 |
| Number of groove | 4*5 |
| Maximum pullback(KN) | 4*45 or 2*90 |
| Maximum speedback(km/h) | 4*1 |
| Maximum suitable conductor diameter(mm) | Φ40 |
| Engine power/speed(kw/rpm) | 82/2500 |
| Dimensions(mm) | 4700*2350*2800 |
| Weight(kg) | 11500 |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
We are China SA-YZ4*45 OPGW Installation Tools Hydraulic 4*5 grooves cable stringing puller tensioner manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
