RVVB 2 Core 3 Core Stranded Copper Wire , PVC Insulated Indoor Electrical Flat Cable
RVVB 2 Core 3 Core Stranded Copper Wire , PVC Insulated Indoor Electrical Flat Cable image
Brand Name :
JHY CABLE
Model Number :
RVVB cable
Certification :
CCC/ CE/ ISO
Place of Origin :
SHENZHEN CHINA
MOQ :
3000m
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
70 kilometer/ day
Delivery Time :
7~10 working days
Packaging Details :
100 meters per roll or according to the customer’s request.
Model :
RVVB
Conductor :
Copper, Pure annealed copper wire.
Type :
Stranded copper
Core :
2 core, 3 core
Insulation :
PVC insulation
Sheath :
PVC sheath
Color :
Red, Black or customized
Rated Voltage :
300/300V, 300/500V
Packing :
paper reel or plastic shrink and plastic film
Application :
Overhead, Indoor,underground
RVVB 2 core 3 core stranded copper wire PVC insulated indoor electrical flat cables
Production Description:
1. Product characteristic of RVVB cable
| Conductor Construction |
stranded annealed copper wire |
| insulation jacket | |
| PVC sheath | |
| Color | black, white, or assorted upon request . |
| Package | 100m per roll |
| Application | Suitable for indoor or outdoor surface wiring |
| OEM | available |
| Sample | freight charge prepaid |
2. Product technical parameters
|
Item RVVB |
Nominal cross-section (mm2) |
Conductor construction (No./mm) |
Insulation thickness (mm) |
Sheath thickness (mm) |
Conductor resistance at 20℃ (Ω/km) |
Reference weight (kg/km) |
|
Flat cable H05VVH2-F 2 cores |
2×0.75 | 2*24/0.20 | 0.6 | 0.8 | 26.0 | 37 |
|
Flat cable H05VVH2-F 2 cores |
2×1.0 | 2*32/0.20 | 0.6 | 0.8 | 19.5 | 61.1 |
|
Flat cable H05VVH2-F 2 cores |
2×1.5 | 2*30/0.25 | 0.7 | 0.8 | 13.3 | 85 |
|
Flat cable H05VVH2-F 2 cores |
2×2.5 | 2*49/0.25 | 0.8 | 1.0 | 7.98 | 128 |
|
Flat cable H05VVH2-F 3 cores |
3×0.75 | 3*24/0.20 | 0.6 | 0.8 | 26 | 65 |
|
Flat cable H05VVH2-F 3 cores |
3×1.0 | 3*32/0.20 | 0.6 | 0.8 | 19.5 | 77 |
|
Flat cable H05VVH2-F 3 cores |
3×1.5 | 3*30/0.25 | 0.7 | 0.8 | 13.3 | 104 |
|
Flat cable H05VVH2-F 3 cores |
3×2.5 | 3*49/0.25 | 0.8 | 1.0 | 7.98 | 159 |
3. Features of RVVB cable
- Conductors multiply annealing bare copper stranding.
- Rated Voltage:Uo/U is 300/500v.
- Permitted Working Temperature for Longer time:No MoreThan 70'C
4. Application
The cable has the advantage high mechanical strength,good ambient stress resistance,good electrical properties and anti-chemical corrosion. It applies to electrical power transmission and distribution lines with AC rated Voltage up to 300/500V. The cable is for general purpose, as building wire for power, lighting and control wire to electrical appliances.

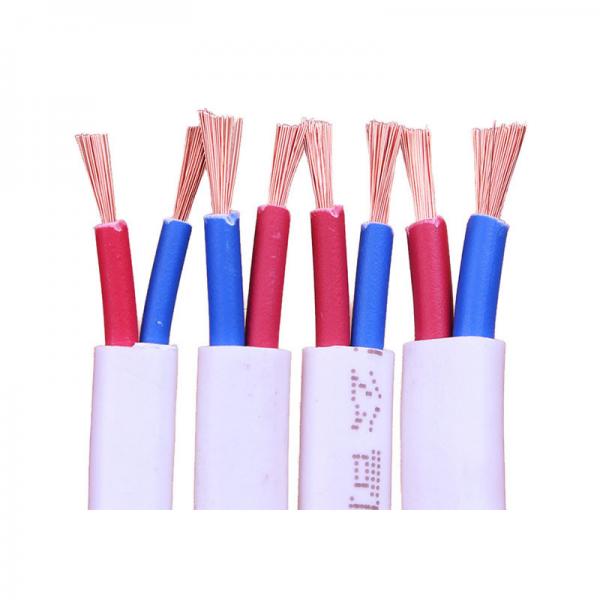

5. Product Image
Product Advantage
Product Package
6. Product standard
GB/T 5023, IEC 60227,BS EN 50525,VDE 0281
7. Company certificate
ISO9001, ISO14001, OHSAS18001, CCC, CE, CB, RoHS, China TOP 100 Enterprises in Cables industry, Guangdong TOP 20 Enterprises in Cables industry and others.
