Rubber Insulated Building Site Polyurethane Cable

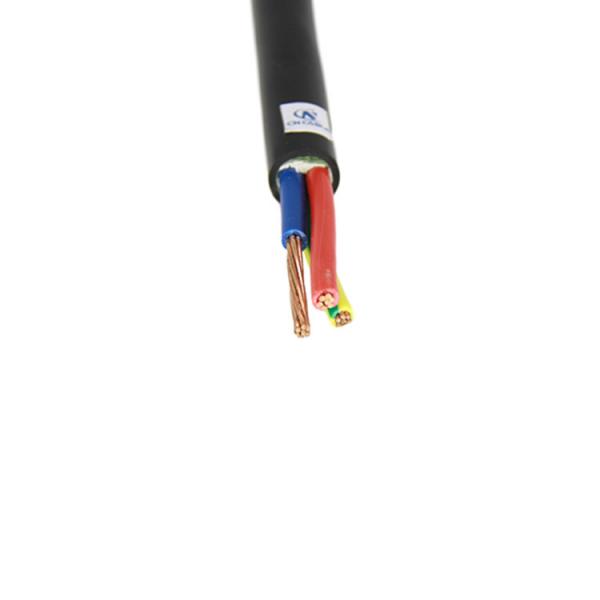

Rubber Insulated Building Site Polyurethane Cable image
Model Number :H07BQ-F
Certification :CE
Place of Origin :Henan
MOQ :200meters
Payment Terms :L/C, T/T
Delivery Time :1-4 weeks
Packaging Details :Iron-wooden drum
Conductor :fine-stranded tinned or bare copper
Core :4 cores
Insulation :LSOH cross-link polyolefin insulation
Jacket :PUR
Color :Black
Sample :Free
Copper Conductor Rubber Insulated H07BQ-F Polyurethane Building Site Cable
Application and Description
The H07BQ-F is termination and connection cable with high mechanical stress-resistance.
Standard
HAR HD 22.10
DIN EN 60228 class 5 (construction)
Cable Construction
Technical Characteristics:
Nominal voltage Uo/U [V] 450 / 750 Volt
Cable Parameter
| AWG | No. of Cores x Nominal Cross Sectional Area | Nominal Thickness of Insulation | Nominal Thickness of Sheath | Nominal Overall Diameter | Nominal Copper Weight | Nominal Weight |
| # x mm^2 | mm | mm | mm | kg/km | kg/km | |
| 16(30/30) | 2 x 1.5 | 0.8 | 1.0 | 7.6 – 9.8 | 29 | 92 |
| 16(30/30) | 3 x 1.5 | 0.8 | 1.0 | 8.0 – 10.4 | 43 | 109 |
| 16(30/30) | 4 x 1.5 | 0.8 | 1.1 | 9.0 – 11.6 | 58 | 145 |
| 16(30/30) | 5 x 1.5 | 0.8 | 1.1 | 9.8 – 12.7 | 72 | 169 |
| 14(50/30) | 2 x 2.5 | 0.9 | 1.1 | 13.0 – 15.0 | 101 | 230 |
| 14(50/30) | 3 x 2.5 | 0.9 | 1.1 | 17.0 – 20.0 | 173 | 398 |
| 14(50/30) | 4 x 2.5 | 0.9 | 1.2 | 9.0 – 11.6 | 48 | 121 |
| 14(50/30) | 5 x 2.5 | 0.9 | 1.3 | 9.6 – 12.4 | 72 | 164 |
| 12(56/28) | 2 x 4 | 1.0 | 1.2 | 10.7 – 13.8 | 96 | 207 |
| 12(56/28) | 3 x 4 | 1.0 | 1.2 | 11.9 – 15.3 | 120 | 262 |
| 12(56/28) | 4 x 4 | 1.0 | 1.3 | 10.6 – 13.7 | 77 | 194 |
| 12(56/28) | 5 x 4 | 1.0 | 1.4 | 11.3 – 14.5 | 115 | 224 |
| 10(84/28 | 2 x 6 | 1.0 | 1.3 | 12.7 – 16.2 | 154 | 327 |
| 10(84/28 | 3 x 6 | 1.0 | 1.4 | 14.1 – 17.9 | 192 | 415 |
| 10(84/28 | 4 x 6 | 1.0 | 1.5 | 11.8 – 15.1 | 115 | 311 |
| 10(84/28 | 5 x 6 | 1.0 | 1.6 | 12.8 – 16.3 | 173 | 310 |
We are China Rubber Insulated Building Site Polyurethane Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Building Site Polyurethane Cable, PUR Jacket Polyurethane Cable, Rubber Insulated Polyurethane Cable, Special CablesSimilar Or Related
