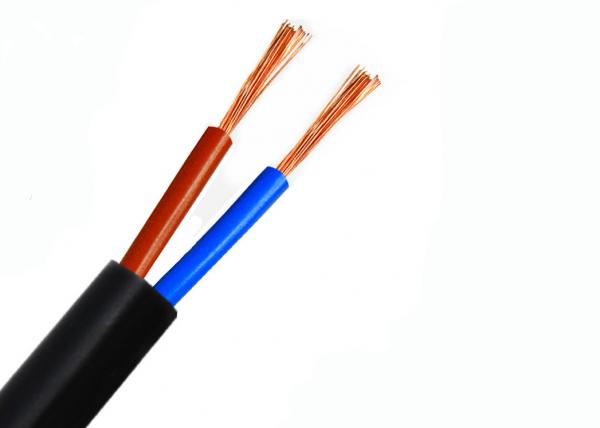

Round Shape Multi Core Flexible Copper Conductor Cable , PVC Sheathed Electrical Cable
Round Shape Multi Core Flexible Copper Conductor Cable , PVC Sheathed Electrical Cable image
Brand Name :
Shenzhen Chengtiantai cable
Model Number :
RVV
Certification :
CE, CB, CCC
Place of Origin :
China mainland
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
50000 m / day
Delivery Time :
15 working days
Packaging Details :
Coil in foil
Rate Voltage :
300/500 V
Conductor :
Flexible conductor
No. Of Conductor :
2&3 core
Insulaton :
PVC Compound
cable shape :
Round
Sheath :
PVC Compound
Round Shape Multi Core Flexible Copper Conductor Cable , PVC Sheathed Electrical Cable
60227 IEC 52
300/500V 70°C PVC INSULATED AND SHEATHED, FLEXIBLE CONDUCTOR
|
Application Exposed wiring in air or in raceway, wet or dry location and used for moblie electrical equipment Classification Maximum conductor temperature 70°C Circuit voltage does not exceed 300 volts. Standard : 60227 IEC 52 |
Conductor : Flexible annealed copper, size 0.5 – 0.75 mm² Insulation : Polyvinylchloride (PVC) Sheath : Polyvinylchloride (PVC) |
|
Nominal |
Number |
Insulation |
Outer |
Overall diameter |
Minimum |
Cable |
Standard |
|
|
min. |
max. |
|||||||
|
(mm²) |
(No./mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(MΩ.km) |
(kg/km) |
(m) |
|
2 × 0.5 |
16/0.20 |
0.5 |
0.6 |
4.6 |
5.9 |
0.012 |
37.62 |
100/C |
|
2 × 0.75 |
24/0.20 |
0.5 |
0.6 |
4.9 |
6.3 |
0.01 |
46.17 |
100/C |
|
3 × 0.5 |
16/0.20 |
0.5 |
0.6 |
4.9 |
6.3 |
0.012 |
45.74 |
100/C |
|
3 × 0.75 |
24/0.20 |
0.5 |
0.6 |
5.2 |
6.7 |
0.01 |
56.98 |
100/C |
Usage Characteristics
|
Permissible operating temperature at conductor |
+70°C |
|
short circuit temperature ( duration max. 5 s) |
160 °C |
|
Minimum installation temperature |
should not be lower than 0°C |
|
Max. conductor permissible tensile stress |
50 N/mm² |
|
Minimum bending radius |
15 x cable Ø |
*Dimensions and specifications may be changed without prior notice.
