Reversing Cable Winch Puller With Water Cooled Diesel Engine In Line Construction

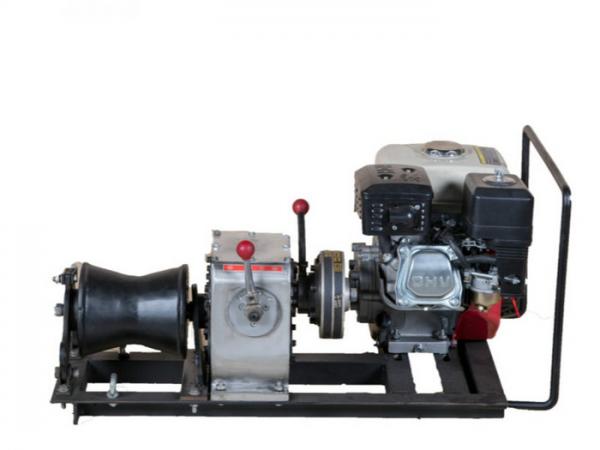

Reversing Cable Winch Puller With Water Cooled Diesel Engine In Line Construction image
Brand Name :
Suntech
Model Number :
JJQ
Certification :
ISO
Place of Origin :
Ningbo,China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 sets per month
Delivery Time :
7-10 workdays
Packaging Details :
Exported Wooden Case
Name :
Diesel Cable Winch
Slow :
14m/min
Fast :
24m/min
Line Pull :
Fast 3ton
Reverse :
13m/min
Type :
Cable Pulling Winch
Warranty :
At least one year
Reversing Cable Winch Puller With Water Cooled Diesel Engine In Line Construction
Application
Diesel powered winch, the name found in the motor-driven winch widely applied area, it is necessary for erecting empty cable underground wiring of the tight line, pole construction products, in a variety of complex environment for the smooth and convenient erection of wire lifting, traction or tight line. Diesel powered winch is widely used in electric power, telecommunications, municipal engineering construction tight group vertical tower or motor line, suitable for field without electric field.
Features
1)small size
2)compact structure;
3)light weight
4)high efficiency
5)easy operation
6)convenient to carry
7)high quality
| Item number | Model |
Rotation direction |
Gear |
rotational speed () |
Traction speed (m/min) |
Tractive force (T) |
Power (KW) |
Outline size (mm) |
Weight (kg) |
| 09121 |
JJQ-3Q 6HP Gasoline engine |
corotation |
Ⅰ Slow |
9.0 | 4.0 | 3.0 | 4.04 | 840x450x500 | 82 |
|
Ⅱ Fast |
16.0 | 6.6 | 1.8 | 780x450x500 | 85 | ||||
| reversal | Reverse | 7.5 | 3.3 | No lifting | |||||
| 09121A |
JJC-30 170F Diesel engine |
corotation |
Ⅰ Slow |
11.5 | 5.0 | 3.0 | 2.94 | 840x600x500 | 108 |
|
Ⅱ Fast |
21.0 | 9.0 | 1.8 | ||||||
| reversal | Reverse | 10.0 | 4.5 | No lifting | |||||
| 09121B |
JJD-30 3KW Electromotor |
corotation |
Ⅰ Slow |
8.5 | 4.0 | 3.0 | 3.00 | 770x600x460 | 108 |
|
Ⅱ Fast |
10.5 | 6.5 | 1.8 | ||||||
| reversal | Reverse | 7.0 | 3.0 | No lifting | |||||
| 09123 |
JJQ-50 9HP Gasoline engine |
corotation |
Ⅰ Slow |
6.5 | 4.0 | 5.0 | 6.61 | 1000x550x520 | 135 |
|
Ⅱ Fast |
16.0 | 9.0 | 2.2 | ||||||
| reversal | Reverse | 7.0 | 4.0 | No lifting | |||||
| 09123A |
JJC-50 6.6HP Diesel engine |
corotation |
Ⅰ Slow |
8.0 | 4.5 | 5.0 | 4.41 | 1000x750x600 | 168 |
|
Ⅱ Fast |
19.0 | 11.0 | 2.3 | ||||||
| reversal | Reverse | 10.0 | 5.5 | No lifting | |||||
| 09123B |
JJD-50 4KW Electromotor |
corotation |
Ⅰ Slow |
5.5 | 3.5 | 5.0 | 4.00 | 1000x850x520 | 160 |
|
Ⅱ Fast |
14.0 | 8.0 | 3.0 | ||||||
| reversal | Reverse | 7.0 | 4.0 | No lifting | |||||
| 09125 |
JJQ-80 13HP Gasoline engine |
corotation |
Ⅰ Slow |
5 | 3 | 8 | 9.60 | 1000x550x520 | 168 |
|
Ⅱ Fast |
9 | 5 | 4.5 | ||||||
| reversal | Reverse | 5 | 3 | No lifting | |||||
| 09125A |
JJC-80 10.5HP Diesel engine |
corotation |
Ⅰ Slow |
7 | 4 | 8 |
7.86 |
1000x750x630 | 230 |
|
Ⅱ Fast |
13 | 7.5 | 4 | ||||||
| reversal | Reverse | 6.5 | 3.7 | No liftin |
