RED Photovoltaic Solar Cable 4mm2 Fire Resistance Tin Copper Flexible Power DC 1.5KV

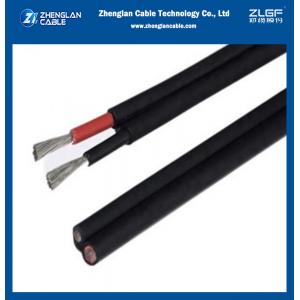

RED Photovoltaic Solar Cable 4mm2 Fire Resistance Tin Copper Flexible Power DC 1.5KV image
Solar cable RED 4mm2 Fire Resistance Tin Copper Flexible Power Solar Cable
Solar cables are designed to be used in photovoltaic power supply systems (cable interconnections between the solar panels and the other components of the photovoltaic system) and similar applications for free hanging, movable, fixed installation and buried in ground in constructional covered systems. These cables can be used indoor, outdoor, in hazard explosion areas, in industry and agriculture.
Cable Construction:
Conductor : Fine Wire Tinned Copper Conductor according to BS EN 60228:2005 cl. 5.
Insulation : UV resistant, cross linked, halogen free, flame retardant compound
Core Identification : Red, black
Sheath : UV resistant, cross linked, halogen free, flame retardant compound
Cable Colour : Red, Black
Packing style: 100meters/roll, 200meters/roll, 500meters/drum, 1000meters/drum, or customize as per customer’s requirement
Solar cable RED 4mm2 Fire Resistance Tin Copper Flexible Power Solar Cable CHARACTERISTICS:
Voltage Rating Uo/U AC: 1000/1000V DC: 1500/1500V
Maximum Voltage (Umax) 1800V Test Voltage 6.5kV AC
Temperature Rating Fixed: -40°C to +90°C
Minimum Bending Radius 5 x overall diameter
Maximum Conductor Temperature +120°C (for 20000h)
Flame retardant to IEC/EN 60332-1-2
Low Smoke Zero Halogen to IEC/EN 60754-1/2, IEC/EN 61034-1/2, EN 50267-2-2 Ozone and UV Resistant to EN 60811-403, EN 50396, EN ISO 4892-1/3
Solar cable RED 4mm2 Fire Resistance Tin Copper Flexible Power Solar Cable Technical Date:
| Nominal voltage | (DC):1.5KV (AC):1.0/1.0KV |
| Voltage test on completed cable | (AC):6.5KV(DC):15KV,5MIN |
| Ambient temperature | -40℃~+90℃ |
| Thermal endurance properties |
+120℃,2000h elongation at break≥50% |
| Service life | >25 (-40℃~+90℃) |
| Refer toshortcirauit allows the temperature | 200℃,5 (S) |
| Bending radius | ≥4×φ (D<8M),≥6×φ (D≥8MM) |
| Resistance against acid and alkaline solution | EN60811-404 |
| Cold bending test | EN60811-504 |
| Weathering/U- resistance | HD605/A1 |
| 0-zone resistance at complete cable | EN50396 |
| Test under fire conditions | EN60332-1-2 |
Solar cable RED 4mm2 Fire Resistance Tin Copper Flexible Power Solar Cable specification:
| Construction | Conductor Construction | Conductor Outer | Cable Outer | Resistance Max. | Current Carring Capacity AT 60℃ |
| mm² | nxmm | mm | mm | Ω/Km | A |
| 1X1.5 | 30X0.25 | 1.58 | 4.60 | 13.7 | 30 |
| 1X2.5 | 47X0.25 | 1.98 | 5.10 | 8.21 | 41 |
| 1X4.0 | 56X0.283 | 2.35 | 5.50 | 5.09 | 55 |
| 1X6.0 | 84X0.283 | 3.06 | 6.30 | 3.39 | 70 |
| 1X10 | 142X0.3 | 4.60 | 7.80 | 1.95 | 98 |
| 1×16 | 228X0.3 | 5.60 | 9.20 | 1.24 | 132 |
| 1×25 | 361X0.3 | 6.95 | 11.30 | 0.795 | 176 |
| 1×35 | 494X0.3 | 8.30 | 13.30 | 0.565 | 218 |
Solar cable RED 4mm2 Fire Resistance Tin Copper Flexible Power Solar Cable images:
We are China RED Photovoltaic Solar Cable 4mm2 Fire Resistance Tin Copper Flexible Power DC 1.5KV manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 4mm2 Solar Pv cable, DC 1.5KV Solar Pv cable, Photovoltaic Solar Cable, Tin Copper Photovoltaic Solar cableSimilar Or Related
