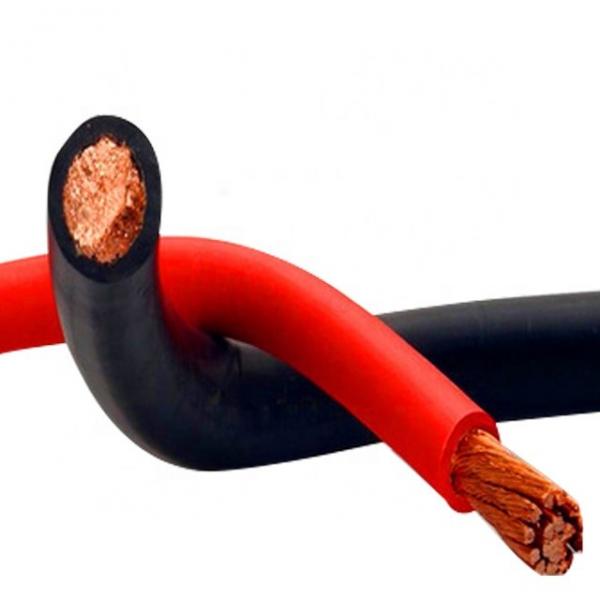

Red Cu Pvc 35mm2 50mm2 Flexible Welding Cable
Red Cu Pvc 35mm2 50mm2 Flexible Welding Cable image
Place of Origin :
Hebei, China
Brand Name :
HOLD-ONE
Model Number :
YH,YHF,H01N2-D,HO1N2-E
MOQ :
100-1999 Meters
Price :
$1.20
Insulation Material :
rubber,pvc,cpe
Type :
Low Voltage, low voltage
Application :
Industrial, industrial
Conductor Material :
Copper,aluminum,alloy aluminum
Jacket :
rubber,pvc,epdm,neoprene
Product name :
battery cable cu flexible rubber pvc welding cable 35mm2 50mm2
Conductor :
copper,aluminum,alloy aluminum
Standard :
IEC60245
Rated Voltage :
450/750V
Temperature Range :
-45℃-+105℃
Number of Cores :
single core
Color :
red,black,orange,or as your requirement
Sample :
available
Selling Units :
Single item
Single package size :
2X2X10 cm
Single gross weight :
1.000 kg
Package Type :
in rolls or in drum
Cu Rubber Pvc 35mm2 50mm2 Flexible Welding Cable
Product Description
construction of welding cable
conductor:copper,aluminum,alloy aluminum,copper clad aluminum
Jacket:rubber,pvc,epdm,neoprene rubber
insulation:rubber,pvc,cpe
color:black,red,orange or as your requirement
Voltage:450-750V
Cross section:10mm2-185mm2
Temperature rating:-30 ℃ to 90℃ for rubber welding cable,-45 ℃ to 105℃ for neoprene rubber welding cable/pvc battery cable
Spec of H01N2-D H01N2-E welding cable
|
Nom. |
Max. Dia. |
Nom. |
Average O.D. mm |
Maximum DC |
||
|
Min. |
Max. |
Tinned copper |
Un tinned copper |
|||
|
10 |
0.21 |
2.0 |
7.7 |
9.7 |
1.95 |
1.91 |
|
16 |
2.0 |
8.8 |
11.0 |
1.24 |
1.21 |
|
|
25 |
2.0 |
10.1 |
12.7 |
0.795 |
0.780 |
|
|
35 |
2.0 |
11.4 |
14.2 |
0.565 |
0.554 |
|
|
50 |
2.2 |
13.2 |
16.5 |
0.393 |
0.386 |
|
|
70 |
2.4 |
15.3 |
19.2 |
0.277 |
0.272 |
|
|
95 |
2.6 |
17.1 |
21.4 |
0.210 |
0.206 |
|
|
120 |
0.51 |
2.8 |
19.2 |
24.0 |
0.164 |
0.161 |
|
150 |
3.0 |
21.1 |
26.4 |
0.132 |
0.129 |
|
|
185 |
3.2 |
23.1 |
28.9 |
0.108 |
0.106 |
|
For USA standard,AWG welding cable also can be done.
OEM ODM also can be done.
Application
Welding cable can be used as connections for electrode holder and grounding clamp to arc welder, bus, inverter or transformer-style weld machines. Also suitable for certain 600V applications such as battery leads and jumper cables
Packaging & Shipping
in rolls or in drums
Delivery time:5-7 days for 20000 meters below
We are China Red Cu Pvc 35mm2 50mm2 Flexible Welding Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
