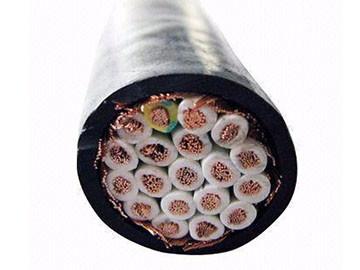

Railway Signal Copper Multicore Cables Polyethylene Insulation
Railway Signal Copper Multicore Cables Polyethylene Insulation image
China Railway Signaling Cable Manufacturer Multicore Copper Railway Signal Cables
Product Description
I. Application
II. Performance Characters
III. Cable structure
IV. Detailed cable dimension and characters
PTYA23 CABLE
|
No. of core |
Copper size |
Max. DC Resistance at 20 ℃ |
Approx. Cable Dia. |
Max. Working capacitance of twisted pair |
Max. Star four-wire group working capacitance |
Min. Insulation resistance |
|
/ |
mm |
Ω/km |
mm |
nF |
nF |
MΩ/km |
|
4 |
1.0 |
23.5 |
14.3 |
70 |
50 |
3000 |
|
6 |
1.0 |
23.5 |
17.5 |
70 |
50 |
3000 |
|
8 |
1.0 |
23.5 |
25 |
70 |
50 |
3000 |
|
9 |
1.0 |
23.5 |
25 |
70 |
50 |
3000 |
|
12 |
1.0 |
23.5 |
27 |
70 |
50 |
3000 |
|
14 |
1.0 |
23.5 |
27 |
70 |
50 |
3000 |
|
16 |
1.0 |
23.5 |
29 |
70 |
50 |
3000 |
|
19 |
1.0 |
23.5 |
29 |
70 |
50 |
3000 |
|
21 |
1.0 |
23.5 |
29 |
70 |
50 |
3000 |
|
24 |
1.0 |
23.5 |
31 |
70 |
50 |
3000 |
|
28 |
1.0 |
23.5 |
31 |
70 |
50 |
3000 |
|
30 |
1.0 |
23.5 |
31 |
70 |
50 |
3000 |
|
33 |
1.0 |
23.5 |
31 |
70 |
50 |
3000 |
|
37 |
1.0 |
23.5 |
38 |
70 |
50 |
3000 |
|
42 |
1.0 |
23.5 |
38 |
70 |
50 |
3000 |
|
44 |
1.0 |
23.5 |
38 |
70 |
50 |
3000 |
|
48 |
1.0 |
23.5 |
38 |
70 |
50 |
3000 |
|
52 |
1.0 |
23.5 |
40 |
70 |
50 |
3000 |
|
56 |
1.0 |
23.5 |
42 |
70 |
50 |
3000 |
|
61 |
1.0 |
23.5 |
43 |
70 |
50 |
3000 |
Packing&Shipping
Packing material:
Coil (For small size & short length), Wooden Drum, Iron-Wooden Drum, Steel Drum.
Shipping:
Loading port from Qingdao or Shanghai, 12-24 hours from facotry to sea port.
We are China Railway Signal Copper Multicore Cables Polyethylene Insulation manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
