Quadruplex Triplex Overhead Drop Service Cable ABC Cable 0.6 / 1kV Voltage

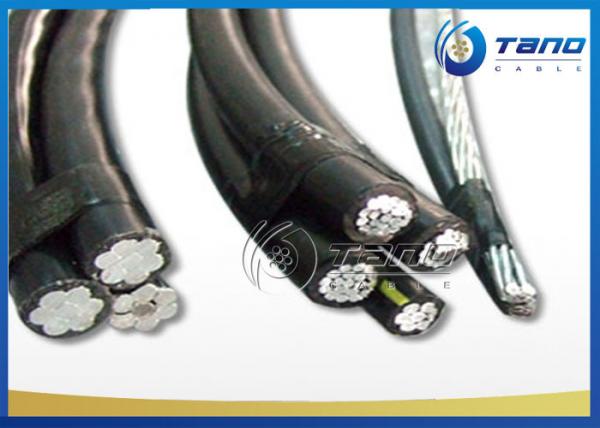

Quadruplex Triplex Overhead Drop Service Cable ABC Cable 0.6 / 1kV Voltage image
Brand Name :
TANO CABLE
Model Number :
Service drop cable
Certification :
ISO
Place of Origin :
China
MOQ :
2000 Meters
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
600KM per month
Delivery Time :
Within 20 working days
Packaging Details :
by wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery
Product :
Overhead Service Drop Cable
Core :
2 cores; 3 cores; 4 cores
Coonductor :
Aluminum
Insulation :
PE,XLPE
Voltage :
0.6/1kV
Key words :
ABC Cable
Duplex Quadruplex Triplex Overhead Drop Service Cable Aerial Bundle Cable
Description
ABC Cable are overhead power lines using several insulated phase conductors bundled tightly together, usually with a bare neutral conductor. They can improves safety and reliance of electrified wire netting.
Application
| Type | Application |
|
Duplex Service Drop Cable |
To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting .For service at 600 volts or lower at a conductor temperature of 75°C maximum. |
|
Triplex Service Drop Cable |
To supply power from the utility's lines to the consumer's weatherhead.For service at 600 volt or less (phase to phase) at a conductor temperature of 75°C maximumfor polyethylene insulation 90°C maximum for crosslinked insulation. |
|
Quadruplex Service Drop Cable |
Used to supply 3 phase power, usually from a polemounted transformer, to the user'sservice head where connection to the service entrance cable is made. To be used at voltages of 600volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethyleneinsulation 90°C maximum for crosslinked polyethylene(XLPE) insulated conductors. |
Standards
• B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
• B-231 Aluminum Conductors, Concentric-Lay-Stranded.
• B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
• B-399 Concentric-Lay-Stranded, 6201-T81 Aluminum Alloy Conductors.
• B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire.
Tano Cable's quadruplex service drop cable meets or exceeds all applicable requirements of ICEA S-76-474 .
Technical Specification
| Code Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000ft.(Ibs.) |
Allowable Ampacities+ |
|||||||
| Size (AWG) |
Stranding | Insul. Thick. (mils) |
Equiv. Dia. (AWG)++ |
Size (kcmil) |
Stranding | Rated Strength (Ibs.) |
XLP | POLY | XLP | POLY | |
| 6201 ALLOY NEUTRAL-MESSENGER | |||||||||||
| Chihuahua | 6 | 1 | 45 | 6 | 30.58 | 7 | 1110 | 65 | 65 | 85 | 70 |
| Vizsla | 6 | 7 | 45 | 6 | 30.58 | 7 | 1110 | 68 | 68 | 85 | 70 |
| Harrier | 4 | 1 | 45 | 4 | 48.69 | 7 | 1760 | 99 | 99 | 115 | 90 |
| Whippet | 4 | 7 | 45 | 4 | 48.69 | 7 | 1760 | 103 | 103 | 115 | 90 |
| Schnauzer | 2 | 7 | 45 | 2 | 77.47 | 7 | 2800 | 157 | 157 | 150 | 120 |
| Heeler | 1/0 | 9 | 60 | 1/0 | 123.3 | 7 | 4460 | 250 | 250 | 205 | 160 |
| * Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Chihuahua/XLP). + Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun. ++ Designated sizes are: ACSR 6/1 diameter equivalent and AAC with equivalent resistivity per ASTM B-399 for 6201. |
|||||||||||
| Code Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000ft.(Ibs.) |
Allowable Ampacities+ |
||||||
| Size (AWG) |
Stranding | Insul. Thick. (mils) |
Size (kcmil) |
Stranding | Rated Strength (Ibs.) |
XLP | POLY | XLP | POLY | |
| AAC NEUTRAL-MESSENGER | ||||||||||
| Patella | 6 | 7 | 45 | 6 | 7 | 563 | 103 | 103 | 85 | 70 |
| Oyster | 4 | 7 | 45 | 4 | 7 | 881 | 154 | 154 | 115 | 90 |
| Clam | 2 | 7 | 45 | 2 | 7 | 1350 | 233 | 233 | 150 | 120 |
| Murex | 1/0 | 7 | 60 | 1/0 | 7 | 1990 | 374 | 374 | 205 | 160 |
| Purpura | 1/0 | 9 | 60 | 1/0 | 7 | 1990 | 368 | 368 | 205 | 160 |
| Nassa | 2/0 | 7 | 60 | 2/0 | 7 | 2510 | 462 | 462 | 235 | 185 |
| Melita | 3/0 | 17 | 60 | 3/0 | 19 | 3310 | 562 | 562 | 275 | 215 |
| Portunus | 4/0 | 18 | 60 | 4/0 | 19 | 4020 | 696 | 696 | 315 | 245 |
| Nannynose | 336.4 | 19 | 80 | 336.4 | 19 | 6146 | 1118 | 1118 | 420 | 325 |
| * Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Haiotis/XLP). + Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun. |
||||||||||
| Code Word | Phase Conductor | Bare Neutral Messenger | Weight Per 1000ft.(Ibs.) |
Allowable Ampacities+ |
||||||
| Size (AWG) |
Stranding | Insul. Thick. (mils) |
Size (kcmil) |
Stranding | Rated Strength (Ibs.) |
XLP | POLY | XLP | POLY | |
| ACSR NEUTRAL-MESSENGER | ||||||||||
| Morochuca | 6 | 1 | 45 | 6 | 43252 | 1190 | 145 | 145 | 75 | 60 |
| Chola | 6 | 7 | 45 | 6 | 43252 | 1190 | 153 | 153 | 75 | 60 |
| Morgan | 4 | 1 | 45 | 4 | 43252 | 1860 | 217 | 217 | 100 | 80 |
| Hackney | 4 | 7 | 45 | 4 | 43252 | 1860 | 229 | 229 | 100 | 80 |
| Palomino | 2 | 7 | 45 | 2 | 43252 | 2850 | 347 | 347 | 135 | 105 |
| Costena | 1/0 | 9 | 60 | 1/0 | 43252 | 4380 | 549 | 549 | 180 | 140 |
| Grullo | 2/0 | 11 | 60 | 2/0 | 43252 | 5310 | 677 | 677 | 205 | 160 |
| Suffolk | 3/0 | 17 | 60 | 3/0 | 43252 | 6620 | 837 | 837 | 235 | 185 |
| Appaloosa | 4/0 | 18 | 60 | 4/0 | 43252 | 8350 | 1038 | 1038 | 275 | 210 |
| Gelding | 336.4 | 19 | 80 | 4/0 | 43252 | 8350 | 1494 | 1494 | 370 | 280 |
| Bronco | 336.4 | 19 | 80 | 336.4 | 43118 | 8680 | 1568 | 1568 | 370 | 280 |
| *Code words for XLP insulated products are formed by adding "/XLP" to the conventional code words above (e.g.-Bay/XLP). +Conductor temperature of 90°C for XLP, 75°C for Poly; ambient temperature of 40°C; emissivity 0.9; 2 ft./sec. wind in sun. |
||||||||||
Structure
Construction
Conductor:
| Phase Conductor | Bare Neutral Messenger |
| AAC | AAC |
| ACSR | |
| Alloy |
Insulation material:
PE or XLPE or PVC or as the customer's demands.
Packing
For the Aerial Bundled Cable(ABC Cable) (aluminum or copper conductor material),we usually use the standard wooden drum to package as the belowing picture.We also can design the different package types according to the customer's requirements.
We are China Quadruplex Triplex Overhead Drop Service Cable ABC Cable 0.6 / 1kV Voltage manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
