PVC/XLPE/PE Covered Overhead Insulated Cable Line Wire Duplex/Triplex/Quadruplex ABC

 China PVC/XLPE/PE Covered Overhead Insulated Cable Line Wire Duplex/Triplex/Quadruplex ABC supplier

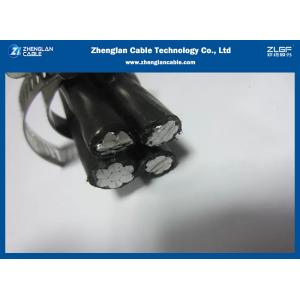

PVC/XLPE/PE Covered Overhead Insulated Cable Line Wire Duplex/Triplex/Quadruplex ABC image

Get a Quote Email to us

Brand Name :Zhenglan Cable
Model Number :ABC Cable
Certification :3C,ISO 9001:2015,ISO 14001:2005
Place of Origin :Henan, China
MOQ :500 meters
Price :0.1-100USD/m
Payment Terms :L/C, T/T,, Western Union
Supply Ability :100Km/Month
Delivery Time :15-30 days
Packaging Details :Wooden case, wooden-steel case, coil or plastic drumor customized
Insulation Material :XLPE/PVC
Conductor Material :Aluminum
Application :Overhead
Quality :100% test
Model :Overhead Insulated Cable Aluminum Conductor XLPE Insulated 2, 3, 4, 5core Aerial bundled cable
structure :AL/XLPE or al/xlpe+bare al alloy
Standard :IEC60502, NFC33209,

PVC/XLPE/PE Covered Line Wire Duplex/Triplex/Quadruplex ABC Overhead Insulated cable IEC60502, NFC33209

Application:

Primarily used for overhead service applications such as street lighting,outdoor lighting,and temporary service for construction. They permit longer spans, lower mounting, minimum support, and simplified installation, particularly among trees or in congested areas. It also offers maximum personnel safety and protection against outage. Resistance to abrasion, flexing, and effects of heat, moisture, sunlight and cold assure high dependability through long years of services.

Construction:
Phase core conductor: aluminum (AAC)
Neutral core conductor: aluminum(AAC), aluminum alloy(AAAC), ACSR
Insulation: Cross-linked polyethylene (XLPE) or Polyvinyl chloride (PVC)

Core identification: rib or number 111, 222, 333, 444, 555

​Standards:

IEC 60228; IEC 60811-201; IEC 60811-401; IEC 60811-402; IEC 60811-501; IEC 60811-502; IEC 60811-507; IEC 60811-511; ASTM B 231; ICEA S-76-474;

NTP 370.254; NTP 370.258; NTP-IEC 60228; NFC 33-209

Marking:

(Nb. Cores x Section) + (Nb. conductors x public lighting section) + NA(Neutral messenger section) – Year – Sequential length.

IEC 60502 6.35/11 kV ABC for technical date sheets:

Number of Cores x Nominal Cross Section Phase Conductor Messenger Suspension Unit Continuous current rating at 300C ambient temp
Stranding Nominal Sectional Area Maximum Conductor Resistance Stranding Nominal Sectional Area Breaking Load
No.xmm2 No.xmm mm2 Ω/Km No.xmm mm2 KN A
3X50 + 1X25 19/1.78 50 0.641 7/2.13 25 60 116
3X70 + 1X50 19/.14 70 0.443 7/3.15 50 62 210
3X95+ 1X50 19/2.52 95 0.32 7/3.0 50 60 173
3X185+1X120 37/2.52 185 0.164 7/4.67 120 150 259
3X150 +1X50 37/2.25 150 0.206 7/3.15 50 62 365
3X240 +1X50 61/2.25 240 0.125 7/3.15 50 62 500

Products show:

About us

Zhenglan Cable Technology CO., Ltd.,formerly known as HENAN Zhengzhou Cable Co., Ltd., is one of the large scale backbone enterprises in China's wire and cable industry. The company's registered capital is about 4 million 6 thousand yuan and its headquarter is located in 49 floor of the South Tower of the Greenland Center of Zhengzhou high railway station (Petronas Twin Towers). The factory is located in the Zhengzhou cable science and Technology Industrial Park of the Wuzhi industrial area. It is a modern industrial park integrating advanced research and development technology and production technology.

The main products of the company are 9 major categories, 10 product series and 60 varieties, including all kinds of bare wires, power cables (cross-linked cables, plastic cables, etc.) special cables (fire retardant, fire resistant, low smoke and halogen free cables), control cables, overhead insulated cables, cloth and wires, tec. The company’s leading products include 1KV, 10-35KV XLPE cables, plastic cables, irradiated cables, special cables, overhead conductors and so on.

We are China PVC/XLPE/PE Covered Overhead Insulated Cable Line Wire Duplex/Triplex/Quadruplex ABC manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
