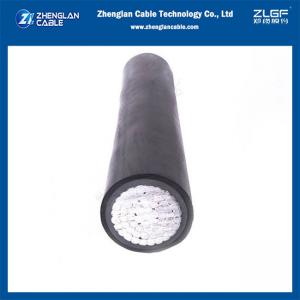

Pvc Underground Use Power Cable Copper XLPE Unarmored Aluminum image

Get a Quote Email to us

AC0.6/1KV 1x400KV al/xlpe/pvc underground use power cable unarmored aluminum cable IEC60502-1

Applications:

AC0.6/1KV 1x400KV al/xlpe/pvc underground use power cable unarmored aluminum cable IEC60502-1 are applicable for AC 50Hz transmission and distribution lines with rated voltage of 1.8/3KV or below.

The mechanical properties and electrical performance of cables meet the requirements of national standard GB/T12706- 2008 and international standards IEC60502-2005.

These cables are used for electricity supply in low voltage installation system. Such as high rise buildings and apartments, airports, shopping centres, cinemas and road and rail tunnels. And tall building, Hospital, Theatre, Power station, Metro Tunnel or Petrochemical Industry or other special place required for low smoke , zero halogen clean and safe cable.

Construction:
Conductors:Copper or Aluminium conductor, round standed or Shaped, Class 2 to IEC 60228, BS EN 60228. For smaller sizes, a solid round conductor, Class 1 as per IEC 60228, BS EN 60228 can also be supplied upon request.

Noted: Insulation color as per standards or customer requirement.

Standard:

Basic design to IEC 60502-1, IEC 60228,BS EN 60228
China: GB/T 12706.2-2008
Other standards such as BS7870,DIN and ICEA upon request

Operating characteristics
1. Cable laying temperature: ≥0°C
2. Cable condutor long-term allowable working temperature:≤90°C
3. Higest working temperature of cable in case of short circuit (the longest lasting time is not over 5s): 250°C
4. Minimum allowable bending radius: Single core cable: 20D mm; multi-core cable: 15D mm Note: D is actual outer diameter of the cable

AC0.6/1KV 1x400KV al/xlpe/pvc underground use power cable unarmored aluminum cable IEC60502-1 Cable Parameters:

Conductor dimensions (mm2) Insulation thickness (mm) Sheath thickness Outer diameter (approximate)
mm mm
1C 2C 1C 2C
1.5 0.7 1.4 1.8 5.6 10
2.5 0.7 1.4 1.8 6 10.8
4 0.7 1.4 1.8 6.5 11.7
6 0.7 1.4 1.8 7 12.7
10 0.7 1.4 1.8 8.1 15
16 0.7 1.4 1.8 9.2 17.2
25 0.9 1.4 1.8 10.6 20
35 0.9 1.4 1.8 11.8 22.4
50 1 1.4 1.8 13.2 25.2
70 1.1 1.4 1.9 15 22.2
95 1.1 1.5 2 16.9 25.2
120 1.2 1.5 2.1 18.5 28.2
150 1.4 1.6 2.2 20.6 31
185 1.6 1.6 2.3 22.7 36.8
240 1.7 1.7 2.5 25.3 41.6
300 1.8 1.8 2.7 27.9 46.4
400 2 1.9 31.6
500 2.2 2 35

AC0.6/1KV 1x400KV al/xlpe/pvc underground use power cable unarmored aluminum cable IEC60502-1 Productos show:
