PVC Type ST5 Sheath Electrical Cable Wire Copper Core 500v BV

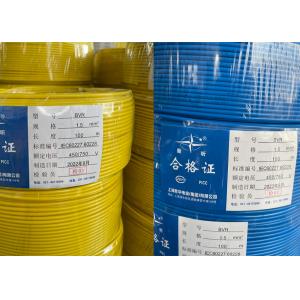

PVC Type ST5 Sheath Electrical Cable Wire Copper Core 500v BV image
Ordinary PVC Sheathed cord 300/500v
Descriptions
Ordinary PVC Sheathed cord
Code designation:60227 IEC (International),BVVB 300/500V(China)
Constructions
1. Conductor: Solid or Stranded copper conductor,comform to IEC 60228 class1,class 2
2. Insulation: PVC
3. Sheath: PVC type ST5
| item | value |
| Place of Origin | China |
| Shanghai | |
| Brand Name | SAHN, OEM |
| Model Number | VV, VVR, VV32, VV62 |
| Insulation Material | PVC |
| Type | LOW VOLTAGE |
| Application | Power Station |
| Conductor Material | Copper |
| Jacket | PVC |
| Standard | IEC60502 |
| Certificates | CE, RoHS, CCC, KEMA |
| Special requiremets | Armour, LSZH, Fire-resistant |
| Warranty | 2 years since delivery |
Applications
Used in the switch control,relay and instrumentation panels of power switchgear and for purposes such as internal connectors in rectifier equiment, motor starters and controllers.
Standards
International:IEC 60227
China:GB/T 5023-2008
Other standards such as BS,DIN and ICEA upon request
Technical date
Rate voltage:300/500v
Max.Conductor Temp. in normal use: 70℃
Min. Bending Radius: 6 x cable O.D
Certificates
CE,RoHS,CCC,KEMS and more others at request
Specifications
| Nom.Cross-section Area | Number/Diameter of core | Max.overall Diameter | Max.R of conductor at 20℃ | Approx.weight | |
| mm2 | mm | mm | ohm/km | kg/km | |
| 2×0.75 | 2×1/0.97 | 4.6×7.0 | 43.7 | ||
| 2×1.0 | 2×1/1.13 | 4.8×7.4 | 51.0 | ||
| 2×1.5 | 2×1/1.38 | 5.4×8.4 | 65.9 | ||
| 2×2.5 | 2×1/1.78 | 6.2×9.8 | 7.41 | 95.7 | |
| 2×4 | 2×7/0.85 | 7.2×11.5 |
4.61 |
146 | |
| 2×6 | 2×7/1.04 | 8.0×13.0 | 3.08 | 200 | |
| 2×10 | 2×7/1.35 | 9.6×16.0 | 1.83 | 323 | |
| 3×0.75 | 3×1/0.97 | 4.6×9.4 | 24.5 | 62.6 | |
| 3×1.0 | 3×1/1.13 | 4.8×9.8 | 18.1 | 74.3 | |
| 3×1.5 | 3×1/1.38 | 5.4×11.5 | 12.1 |
95.6 |
|
| 3×2.5 | 3×1/1.78 | 6.2×13.5 | 7.41 | 140 | |
| 3×4 | 3×7/0.85 | 7.4×16.5 | 4.61 | 220 | |
| 3×6 | 3×7/1.04 | 8.0×18.0 | 3.08 | 295 | |
| 3×10 | 3×7/1.35 | 9.6×22.5 | 1.83 | 485 | |
Our Services
1) Your inquiry will be replied within 12 hours.
2) Well-traind&experienced sales can reply your inquiries in English.
3) During working time,E-mail will be replied to you within 2 hours.
4) OEM&ODM projects are highly welcomed ,we have strong R&D team.
5) The order will be produced exactly according to order details and proofed samples,
our QC will submit inspection report before shipment.
6) Your business relationship with us will be confidential to any third party.
7) Good after-sale service.
We are China PVC Type ST5 Sheath Electrical Cable Wire Copper Core 500v BV manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
