PVC Single Core Solid Copper Conductor electrical wire for House Wiring, H05V-U / H07V-U Cable
PVC Single Core Solid Copper Conductor electrical wire for House Wiring, H05V-U / H07V-U Cable image
Brand Name :
CTT cable
Model Number :
H05V-U / H07V-U
Certification :
IEC, CE, RoHS，ISO
Place of Origin :
China Mainland
MOQ :
10000 m
Price :
On request
Payment Terms :
L/C, T/T
Delivery Time :
7/ 15 working days
Packaging Details :
Coil in foil (100 m)
No. of cores :
single core
voltage :
up to 750 V
Conductor :
bare copper
insulation :
PVC
Package :
coil
Temperature :
-5 to +70°C
PVC Insulted Single-core solid conductor house wiring Cable
H05V-U/H07V-U Electrical wire are determined for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes,under and surface mounting of plasters.
These electrical wire cables H05V-U H07V-U are suitable for laying tubes, under and surface mounting of plasters and also in closed installation conduits. These are not allowed to install for direct laying in cable trays, channels or tanks.
These types H05V-U H07V-U Electrical wire are permitted for the inner wiring of equipment, distributor and switchboards and also for protective laying to the lightings with a nominal voltage up to 1000 V alternating current or up to 750 V direct current against ground.
| STANDARDS | |
| International: | H05V-U: 60227 IEC 05 H07V-U: 60227 IEC 01 |
| National: | GB/T5023.1-2008 |
| Construction characteristics | |
| Conductor material | Solid copper conductor to IEC 60228 class 1 |
| Insulation | polyvinyl chloride (PVC) |
| Electrical characteristics | |
| Rated voltage Uo/U (Um) | H05V-U: 300/500V H07V-U: 450/750 V |
| Test voltage: | H05V-U: 2000 V H07V-U:2500 V |
| Usage characteristics | |
| Temperature range: | -5 to +70°C |
| Maximum operating temperature: | 70°C |
| Short-circuit max conductor temperature: | 160°C |
| Color options : | |
| Black, Red, Orange, Blue, Yellow, Yellow-green | * Other colors can be supplied on request |
| Mechanical resistance to impacts : | Low |
| Installation conditions | |
| Installation temperature: | 5°C |
| Minimum bending radius: | 4 x cable diameter |
| Recommended maximum tensile stress: | 50 N/mm² |
H05V-U 300/500 V PVC Insulated non-sheathed with solid copper conductor for house wiring
| Conductor cross section |
minimum wall-thickness |
Outer Ø min. – max. |
Weight approx. | Maximum current rating Air 25 ℃ |
Conductor DC resistant at 20°C | Standard length |
|---|---|---|---|---|---|---|
| mm² | mm | mm | kg / km | A | Ω/km | m /coil |
| 0.5 | 0.6 | 1,9 – 2,3 | 9 | 12 | 36 | 100 |
| 0.75 | 0.6 | 2.1 – 2.5 | 12 | 15 | 24.5 | 100 |
| 1 | 0.6 | 2.2 – 2.7 | 15 | 19 | 18.1 | 100 |
H07V-U 450/750V PVC Insulated non-sheathed with solid copper conductor for house wiring
| Conductor cross section |
minimum wall-thickness |
Outer Ø min. – max. |
Weight approx. | Maximum current rating Air 25 ℃ |
Conductor DC resistant at 20°C | Standard length |
|---|---|---|---|---|---|---|
| mm² | mm | mm | kg / km | A | Ω/km | m /coil |
| 1.5 | 0.7 | 2.6 – 3.2 | 19.9 | 25 | 12.1 | 100 |
| 2.5 | 0.8 | 3.2 – 3.9 | 31.4 | 34 | 7.41 | 100 |
| 4 | 0.8 | 3.6 – 4.4 | 49 | 44.5 | 4.61 | 100 |
| 6 | 0.8 | 4.3 – 5.0 | 66 | 58 | 3.08 | 100 |
| 10 | 1 | 5.3 – 6.4 | 11.4 | 79.5 | 1.83 | 100 |
* Dimensions and specifications may be changed without prior notice.
| Designation |
Nominal Voltage U0 / U (V) |
According to DIN VDE 0285-525 |
According to design to IEC | Links |
|---|---|---|---|---|
| PVC-wring cables single wire | 300/500 | H05V-U | 60227 IEC 05 | More >> |
| PVC-wring cables fine wires | 300/500 | H05V-K | 60227 IEC 06 | More >> |
| PVC-insulated cables single wire | 450/750 | H07V-U | 60227 IEC 01 | More >> |
| PVC-insulated cables Multi-stranded wires | 450/750 | H07V-R | 60227 IEC 01 | More >> |
| PVC-insulated cables fine wires | 450/750 | H07V-K | 60227 IEC 02 | More >> |
| Multi-core PVC-Sheathed cables round | 300/300 | H03VV-F | 60227 IEC 52 | More>> |
| Multi-core PVC-Sheathed flexible cables round | 300/500 | H05VV-F | 60227 IEC 53 | More >> |
| Light PVC sheathed cables for fixed wiring | 300/500 | — | 60227 IEC 10 | More >> |
| PVC Insulated Flexible Twin Twisted Electrical Wire | 300/300 | — | 60227 IEC 43 | More >> |
Delivery Port:
| Port of Shenzhen | Port of Hongkong | Port of Guangzhou |
Products Certificates
| CE | IEC CB TEST CERTIFICATE | China Compulsory Certificate, 3C |
|
– Certificate No. : CE170103005260 – Certified through China quality certification centre |
– Certificate No. : CN39331 – Certified through China quality certification centre |
– Certificate No. : 2002010105011347 – Certified through China quality certification centre |
* All substances of the cable meet the requirements of RoHS Directive-compliant
Shenzhen chengtiantai cable operates certified management systems compliant with:
| Certificate | Information | |
|
ISO 9001:2008 Quality management systems
|
– Certificat ISO 9001:2008 – Shenzhen chengtiantai cable industry development Co.Ltd. ; – Certified through Guangdong quality Testing CTC Certification Co.Ltd.; – Valid until 13 January 2019 |
|
|
ISO 14001:2004
Environmental management systems
|
– Certificat ISO 14001:2004 – Shenzhen chengtiantai cable industry development Co.Ltd. ; – Certified through Guangdong quality Testing CTC Certification Co.Ltd.; – Valid until 13 January 2019 |
|
|
OHSAS 18001:2007
Assessment specification for occupational health & safety management systemsenvironmental management systems
|
– Certificat OHSAS 18001:2007 – Shenzhen chengtiantai cable industry development Co.Ltd. ; – Certified through Guangdong quality Testing CTC Certification Co.Ltd.; – Valid until 13 January 2019 |
Our production in numbers
|
● Cable production started 1983 ● Sales in 2016 about 500 million USD ● 100,000 m2 Production area ● 8 workshop |
● 200 Sets Of Testing Equipment ● 100 Testing Items ● 12 cabling machines ● 8 armouring machines |
We are China PVC Single Core Solid Copper Conductor electrical wire for House Wiring, H05V-U / H07V-U Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Copper Building Wire, copper electrical cable, hook up cableSimilar Or Related
-
Single Core Electrical Cable Wire With Solid Copper Conductor 300 / 500V WIth PVC Sheath
-
2491X / H07V-K / H05V-K Cable Copper Conductor Hook-up Wire Cable for internal equipment wiring
-
Round Shape Multi Core Flexible Copper Conductor Cable , PVC Sheathed Electrical Cable
-

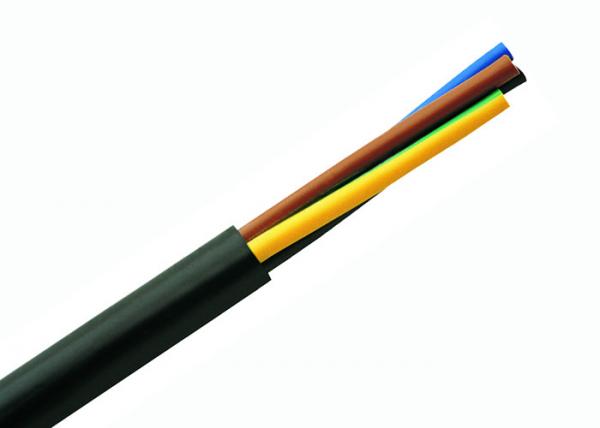

300/500 V H05VV-F Flexible Multi Core Electrical Wire & Cable , Copper Cable For Household Appliances
