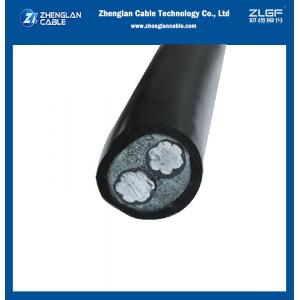

PVC Sheathed Aluminum Power Cable Unarmored 2Cx25mm2 XLPE Insulated image

Get a Quote Email to us

2Cx25mm2 XLPE insulated PVC sheathed aluminum cable unarmored aluminum power cable

Application

2Cx25mm2 XLPE insulated PVC sheathed aluminum cable unarmored aluminum power cable are generally used for fi xed installation. Suitable for building wiring, especially in areas where smoke and fume emissions may cause a potential threat to life but not for burial in the ground, either directly or in ducts.

Conductor: Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.

Insulation: PVC(Polyvinyl Chloride) type TI1

Colour Code 1 Core : Brown 2 Cores: Brown or Blue 3 Cores: Brown, Black, Grey 4 Cores: Blue, Brown, Black, Grey 5 Cores: Green-yellow, Blue, Brown, Black, Grey Above 5 Cores: White Cores with black numbers

Filler(optional) PVC or Polypropylene yarn Binder Tape(optional) Polyester (Mylar) tape

2Cx25mm2 XLPE insulated PVC sheathed aluminum cable unarmored aluminum power cable Technical parameter

Conductor dimensions (mm2) Insulation thickness (mm) Nonmetallic sheath, unarmored cable
Sheath thickness mm Outer diameter (approximate) mm Cable weight (Kg/km)
2C 3C 2C 3C 2C 3C
1.5 0.8 1.8 1.8 10.4 10.8 113 124
2.5 0.8 1.8 1.8 11.2 11.7 128 144
4 1 1.8 1.8 12.9 13.6 161 189
6 1 1.8 1.8 13.9 14.7 193 221
10 1 1.8 1.8 16.2 17.1 254 303
16 1 1.8 1.8 18.4 19.5 331 412
25 1.2 1.8 1.8 21.2 22.5 445 547
35 1.2 1.8 1.8 23.6 21.4 533 652
50 1.4 1.8 1.8 26.8 28 636 837
70 1.4 1.9 2 23.4 27.2 770 1071
95 1.6 2 2.1 27.2 31.4 1011 1412
120 1.6 2.1 2.2 29.8 34.3 1217 1701
150 1.8 2.2 2.3 32.6 37.9 1486 2093
185 2 2.4 2.5 38.6 42.3 1857 2571
240 2.2 2.6 2.7 43.8 49.7 2351 3296
300 2.4 2.7 2.9 48.8 52.8 2854 4016
400 2.6 3.1 59.8 5165
500 2.8 3.4 74.2 6431

2Cx25mm2 XLPE insulated PVC sheathed aluminum cable unarmored aluminum power cable show

About us
We, Zhenglan Cable Technology Co., Ltd, are manufacturer of cable and wire with over 20years' experience.
Our factory workshop taking up about 60000SQM is located in Wuzhi County, Jiaozuo city, Henan province, in the middle of China.

Our main products are

  • overhead transmission line use bare conductor(ACSR, AAC, AAAC etc)
  • 1-35kv overhead transmission line use insulated conductor
  • power distribution use 0.6/1kv, 1.8/3kv PVC/XLPE/PE insulated LV(low voltage) power cable armored or unarmored
  • power distribution use 3.6/6kv, 6/10kv,8.7/10kv, 8.7/15kv, 12/20kv, 21/35kv, 26/35kv XLPE insulated MV(medium voltage) power cable armored or unarmored;
  • 300/300V, 300/500V, 450/750V cotrol cable, house wire

FAQ

1. Is your company a factory or a trade company?
Factory, more than 20 years in China
2. How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
3. What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on Alibaba is also available.
4. What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
5. What is your MOQ?
Generally it is 500m.

We are China PVC Sheathed Aluminum Power Cable Unarmored 2Cx25mm2 XLPE Insulated manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
