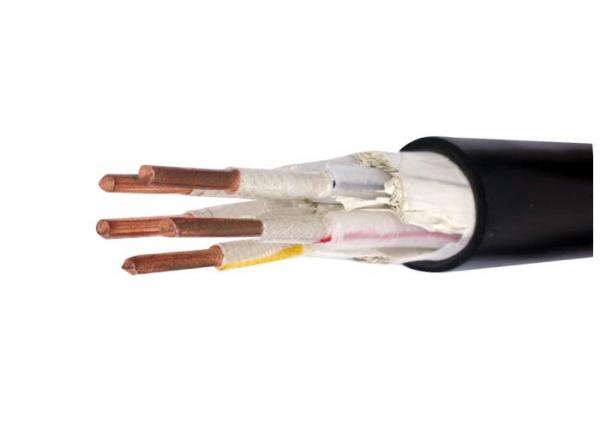

PVC Sheath XLPE Insulated Control Cables WIth CE / KEMA Certificate
PVC Sheath XLPE Insulated Control Cables WIth CE / KEMA Certificate image
Brand Name :
SHAN CABLE
Model Number :
KYJV
Certification :
CE/KEMA/CCC/TUV
Place of Origin :
SHANGHAI CHINA
MOQ :
1000m
Price :
USD 0.4 To 10.5 per Meter
Supply Ability :
8KM per Day
Delivery Time :
10-15 Days
Packaging Details :
100/200 Meters per Rolls or Wooden Steel Drums
Conductor :
Copper
Insulation :
XLPE
Sheath :
PVC
Color :
Black
Place :
ShangHai
PVC Sheath XLPE Insulated Control Cables WIth CE / KEMA Certificate
Construction:
Conductor: Class 1&2 Copper Conductor
Insualtion: XLPE
Sheath: PVC
Standard:
IEC Standard: IEC 60227, IEC60228
China Standard: GB9330
Other standards such as BS,DIN and ICEA upon request
Technical data
Rated voltage: 450/750V
Maximum Conductor Temperature: under normal (70℃), emergency (100℃ or short circuit no more than 5 s (160℃) conditions.
Min. Ambient Temp. 0 ℃, after installation and only when cable is in a fixed position
Min. Bending Radius: 6 x cable O.D
Certificates
CE, RoHS, CCC, KEMA and more others at request
Application:
Suitable for being laid indoors, in cable trench, pipelines or other specific occasions and High performance soft place
Specifications:
| Type | Name | Section Area(mm2) | No. of Core |
| KVV | Copper Conductor, PVC Insulated and Sheathed control cable | 0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 | ||
| KVVP | Copper Conductor, PVC Insulated and Sheathed, Copper-braid Screened Control Cable | 0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 | ||
| KVVP2 | Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Control Cable | 0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 | ||
| KVVP2-22 | Copper Conductor, PVC Insulated and Sheathed, Copper-tape Screened Steel-tape armored Control Cable | 0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 | ||
| KVV22 | Copper Conductor, PVC Insulated and Sheathed, Steel-tape armored Control Cable | 0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 | ||
| KVVR | Copper Conductor, PVC Insulated and Sheathed, Flexible Control Cable | 0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 | 2-8 10 12 14 | ||
| KVVRP | Copper Conductor, PVC Insulated and Sheathed, Braiding shielded Flexible Control Cable | 0.75 1.0 1.5 2.5 | 2-8 10 12 14 16 19 24 27 30 37 |
| 4.0 6.0 |
2-8 10 12 14 |
