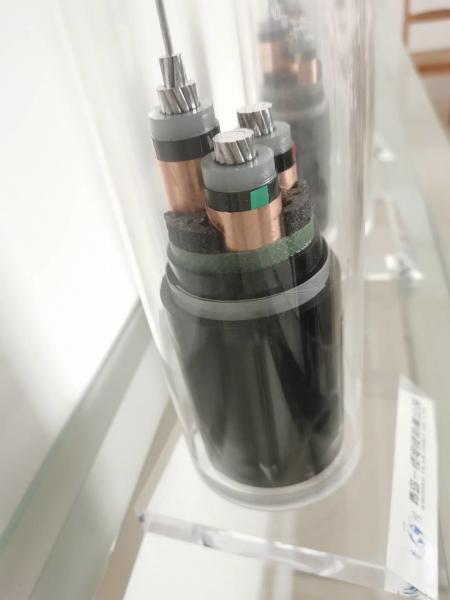

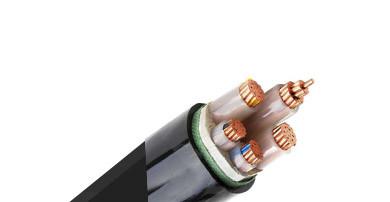

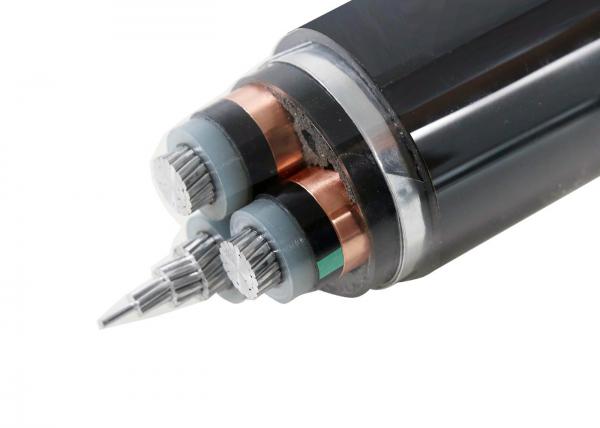

PVC Sheath Armored XLPE Insulated Cable Medium Voltage Copper Underground

 China PVC Sheath Armored XLPE Insulated Cable Medium Voltage Copper Underground supplier

PVC Sheath Armored XLPE Insulated Cable Medium Voltage Copper Underground image

Get a Quote Email to us

Brand Name :
HOLDONE

Model Number :
ZR-YJV ZR-YJV22

Certification :
CCC FCC CE

Place of Origin :
China

MOQ :
1000 m

Price :
USD1-USD10

Payment Terms :
T/T

Supply Ability :
10km/month

Delivery Time :
10 working days

Packaging Details :
carton/ wood or metal drum

material :
copper

color :
Black

Insulation :
PE

Sheathed :
PVC

Fouction :
Underground

Voltage :
0.6-1KV

  1. Overview
    Quick Details
    Place of Origin:
    China
    BrandName:holdone
    Model Number:
    YJV YJV22
    Insulation Material:
    XLPE (PVC)
    Type:
    LOW VOLTAGE
    Application:
    Underground
    Conductor Material:
    Copper
    Jacket:
    PVC, PVC
    Rated voltage:
    0.6/1KV 8.7/15kv
    Conductor:
    Copper /Aluminum
    Number of Cores:
    3,4(3+1),5(4+1,3+2)
    Insulation:
    XLPE, PVC
    Standard:
    IEC60502
    Color:
    Black (or customize)
    Certificate:
    ISO9001/CE/CCC
    Packing:
    Wooden(Steel) Drum
    Rated Temp:
    70

    Supply Ability
    Supply Ability
    10000 Meter/Meters per Month

    Packaging & Delivery
    Packaging Details
    Inner packing:Wooden reel,Plastic reel,Paper reel.
    Ourter pakcing:Carton box,Pull outbox,Palleta available.
    Port
    Shenzhen
    Lead Time:
    Quantity(Meters) 1 – 10000 >10000
    Est. Time(days) 15 To be negotiated

    Product Description

    Product feature and purpose:

    Cross-linked polyethylene insulated power cables is characterized with high mechanical strength,strong resistance to environmental stress,excellent electrical properties ,powerful resistance to
    chemical attack.In addition,the light and simple products are user-friendly.This product is suitable and designed for power transmission and distribution system of rated voltage 0.6/1kv.In terms
    of the main feature of anti-flaming cable,the cable is not liable to ignite or continued ignition is only limited to a certain scope applicable to power station ,subway ,tunnel ,high-rise building,large
    industrial and mining enterprise,oil field,coal mine and other places of intensive distributed electric cables.
    Operative standard:
    GB/T 12706,IEC 60502 and relevant domestic and international standard.For example,BS,VDE,JIS,AEIC,and so on.
    Operational performance:
    The maximum allowable operating temperature of the cable conductor:90 C in normal condition and 250 C in case of short circuit (maximum duration of short circuit is 5s).

    NO.of cores×section
    (mm²)

    Normal insulation

    thickness(mm)

    Normal thickness of

    oversheath

    Approximate overall

    diameter of cable(mm)

    Approximate weight

    of cable(kg/km)

    Cu AL
    Unarmoured Armoured Unarmoured Armoured YJV YJV22 YJLV YJLV22
    4×4 0.7 1.8 1.8 12.5 18.1 282 430 / /
    4×6 0.7 1.8 1.8 14.7 17 383 545 / /
    4×10 0.7 1.8 1.8 16.9 19.1 565 752 390 517
    4×16 0.7 1.8 1.8 19.3 21.6 783 1020 416 663
    4×25 0.9 1.8 1.8 23.5 25.7 1241 1502 593 902
    4×35 0.9 1.8 1.8 26.7 28.7 1631 1957 776 1096
    4×50 1.0 1.8 1.9 28.0 32.6 2080 2812 961 1770
    4×70 1.1 2.0 2.1 33.2 37.5 2952 3796 1302 2222
    4×95 1.1 2.1 2.3 38.0 42.6 3970 4962 1693 2757
    4×120 1.2 2.3 2.4 40.9 46.4 4894 5913 2077 3363
    4×150 1.4 2.4 2.6 46.0 51.3 5980 7170 2852 3878
    4×185 1.6 2.6 2.7 52.5 57.8 7442 8802 3173 4618
    4×240 1.7 2.8 3.0 59.4 64.6 9764 11289 4032 5782
    4×300 1.8 3.0 3.1 66.2 71.6 12122 13856 4924 6735
    4×400 2.0 3.3 3.4 73.8 80.3 15624 18407 6272 9313
    4×500 2.2 3.5 3.7 89.3 96 19877 23264 7667 11062
    4×630 2.4 3.8 4.0 99.6 106.3 25124 28895 9514 13293

We are China PVC Sheath Armored XLPE Insulated Cable Medium Voltage Copper Underground manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
