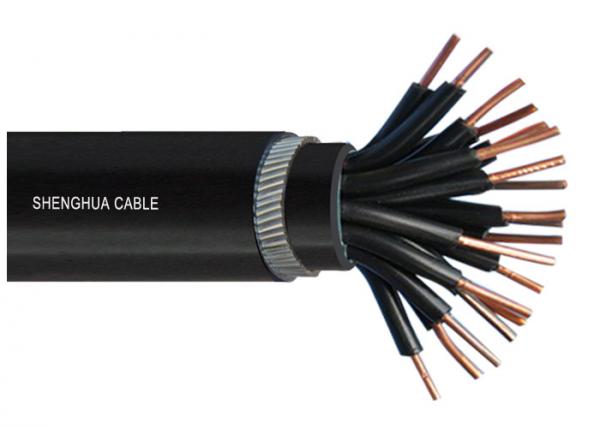

PVC Insulated PVC Sheathed Steel Wire Armored Control Cable WIth Flame Retardant Sheath

PVC insulated PVC sheathed steel wire armored control cable WIth Flame retardant Sheath

1.Implementation standards

GB/T 9330.1-2008 GB/T9330.2-2008 GB/T 19666-2005

2.Use

This product is suitable for AC rated voltage 450 / 750V and below the control, monitoring circuits and protection lines and other occasions

3.Use features​

3.1 The conductor of the cable is the maximum operating temperature of 70.

3.2 Ambient temperature is not less than 0℃

3.3 Cable flame retardant properties meet the requirements of the corresponding indicators in the

GB/T19666-2005 standard.

Performance differences

Power cables are used in power system main lines to transmit and distribute high-power electric power, and control cables directly transmit electric energy from power distribution points of power system to power connecting lines of various electric equipment and appliances. The rated voltage of power cables is generally 0.6 / 1kV and above, the control cable is mainly 450 / 750V. The same specifications of the power cables and control cables in the production, the power cable insulation and sheath thickness than the control cable.

(A) The control cables belong to the electrical equipment cables, and the power cables are two of the five major categories of cables.

(B) the standard control cable is 9330, the standard power cable is GB12706.

(C) the control cable insulation core colors are generally black printed white, there are low-voltage power cables are generally color separation.

(D) Control cable cross-section generally do not exceed 10 square feet, the main power cable power transmission, are generally large cross-section.
Because of the reasons mentioned above, power cable specifications can generally be larger, up to 500 square feet (conventional manufacturers can produce the range), then the larger cross-section of the general can do a relatively small number of manufacturers, and the general section of the control cable Small, the maximum generally not more than 10 square.
From the cable core number, the power cable according to power grid requirements, up to 5 cores generally, and control cables transmit control signals with a larger number of cores, according to the standard, there are many more 61 core, but also can be produced according to user requirements

4.Product model

Model :zr-kvv32

Similar products

Specifications

The above parameters are only part of the parameters, for reference only.
