PVC Insulated Low Voltage Armored Cable Copper Conductor 0.6 KV / 1 KV

 China PVC Insulated Low Voltage Armored Cable Copper Conductor 0.6 KV / 1 KV supplier

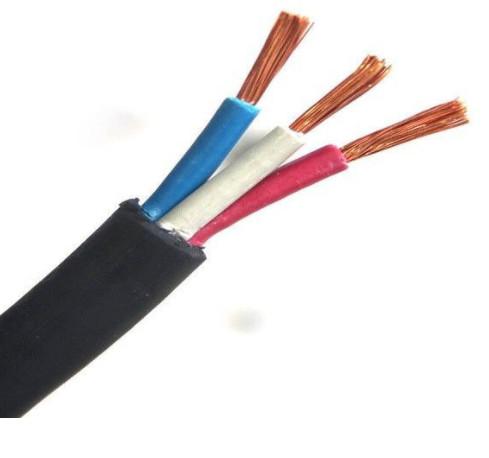

PVC Insulated Low Voltage Armored Cable Copper Conductor 0.6 KV / 1 KV image

Get a Quote Email to us

Brand Name :
Huanghe

Model Number :
XLPE Insulated Copper Cable

Certification :
IOS OHSAS CCC IEC

Place of Origin :
China

MOQ :
200

Payment Terms :
TT/Western Union /LC

Supply Ability :
50000meters per week

Delivery Time :
5-8days

Packaging Details :
wooden drum

Conductor Core :
Copper aluminum

Insulation Material :
PVC

Outer Sheath Material :
XLPE PE

Armoured Type :
armoured and unarmoured

Cross Section Area :
6-400mm2

Standards :
IEC60502,

Colour :
Customized

Application :
Construction, Power Station

PVC Insulated Low Voltage Armored Cable Copper Conductor 0.6 KV / 1 KV

APPLICATIONS:

IEC 60502-1 PVC Insulated Power cables for energy supply are installed in open air, in underground, indoors, in cable ducts, power stations, residental connections and street lighting as well as in subscriber networks, where mechanical damages are not be expected.

STANDARDS

International: IEC 60502-1
National:GB/ T 12706.1-2008

CONSTRUCTION OF PVC INSULATED POWER CABLE:

1. CONDUCTOR– Bare copper conductor, Class 2 to IEC 60228

2. INSULATION
– PVC Compound

3. FILLER

– PP filler

4. INNER SHEATH(in case of armoured cable)

– PVC Compound

5. ARMOUR

– Two steel tape

6. OUTER SHEATH :
– PVC Compound

Sheath colour :
– Black

0.6/1 KV PVC Insulated Copper Conductor Underground Low Voltage Power Cable

Type

Designation

Application

Cu

Al

YJV

YJLV

XLPE insulated PVC sheathed power cable

Suitable for indoor, channels, conduits. Unable to bear mechanical stress.

YJY

YJLY

XLPE insulated PE sheathed power cable

YJV22

YJLV22

XLPE insulated steel-tape armored PVC sheathed power cable

Suitable for under ground, can bear mechanical stress, but can not endure large pulling force.

YJV23

YJLV23

XLPE insulated steel-tape armored PE sheathed power cable

YJV32

YJLV32

XLPE insulated fine steel-wire armored PVC sheathed power cable

Can be installed in vertical well, and bear large mechanical pulling force.

YJV42

YJLV42

XLPE insulated steel-wire armored PVC sheathed power cable

YJV33

YJLV33

XLPE insulated fine steel-wire armored PE sheathed power cable

YJV43

YJLV43

XLPE insulated steel-wire armored PE sheathed power cable

0.6/1 KV PVC Insulated Copper Conductor Underground Low Voltage Power Cable

We are China PVC Insulated Low Voltage Armored Cable Copper Conductor 0.6 KV / 1 KV manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
