Professional Fire Resistant Armoured Cable Halogen Free Thermoplastic Polyolefin Sheath

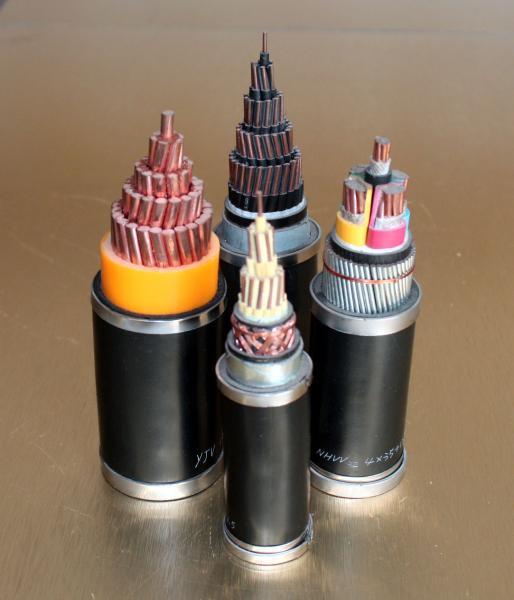

Professional Fire Resistant Armoured Cable Halogen Free Thermoplastic Polyolefin Sheath image
Brand Name :
Shenzhen Chengtiantai
Model Number :
BBTRZ
Certification :
CE,UL& ROHS
Place of Origin :
Guangdong，China（Mainland）
MOQ :
500 m
Price :
on request
Payment Terms :
L/C, T/T
Supply Ability :
5000Km / Month
Delivery Time :
15 working days
Packaging Details :
steel wooden drum
Rated Voltage :
0.6/1 kV
Conductor :
Stranded Bear Copper
Insulation (1st layer) :
Mica tape
Insulation :
XLPE
Delivery Length :
Cut to length
Sheath :
LZSH
Mineral insulated Fire resistance cable
This type of cable is made up of single and multi-cores 600/1000V cables Service Temperature 90°C Emergency Overload Temperature 125°C Short-Circuit Temperature 250°C
The design, construction and testing are compliant with international standard IEC60502 and testing standard BS6387,with standing temperatures of 950~1000 °C for 90 minutes, which means they are capable of remaining in working order despite the most extreme fire conditions. Hence they are known as FIRE RESISTANT cables.
— Flame Retardant
— High Operating Temperatures
— LSOH Halogen-free
— Great Mechanical Strength
— Competitive Installed Cost
— Public Places
|
1.1 GB/T 2951-2008 1.2 GB/T 3048-2007 1.3 BS 6837 |
Conductor | Stranded bare copper |
| Insulation (first layer) | mica tape, flame retardant | |
| Insulation (second layer) | Halogen-free cross-linked polyethylene (XLPE) |
|
| Binder tape | glass-fibre tape | |
| Filler | Glass yarns | |
| core wraping | glass-fibre tape as flame-protection | |
| Inner Sheath | oxygen barrier layer | |
| Sheath | Halogen-free thermoplastic polyolefin | |
| Service Temperature | 90°C | |
| Max. conductor temp. in service | 125°C | |
| Short-Circuit Temperature | 250°C |
|
Nominal cross section |
Outer Diameter approx. |
Weight of cable approx. | Voltage drop |
Mini bending radius |
|
| Single phase | Three phase | ||||
| mm2 | mm | kg/km | V/A.km | V/A.km | mm |
| 1 x 1.5 | 6.3 | 141.4 | 30.8 | 26.7 | 94.5 |
| 1 x 2.5 | 6.7 | 158.2 | 18.9 | 16.4 | 100.5 |
| 1 x 4 | 7.2 | 187.0 | 11.8 | 10.2 | 108.0 |
| 1 x 6 | 7.7 | 216.1 | 7.9 | 6.81 | 115.5 |
| 1 x 10 | 9.4 | 271.3 | 4.7 | 4.05 | 141.0 |
| 1 x 16 | 10.4 | 345.1 | 2.94 | 2.55 | 156.0 |
| 1 x 25 | 11.7 | 466.2 | 1.87 | 1.62 | 175.5 |
| 1 x 35 | 13.1 | 578.9 | 1.35 | 1.17 | 196.5 |
| 1 x 50 | 14.6 | 728.2 | 1.01 | 0.87 | 219.0 |
| 1 x 70 | 16.4 | 954.5 | 0.71 | 0.61 | 246.0 |
| 1 x 95 | 18.3 | 1,280.0 | 0.52 | 0.454 | 274.5 |
| 1 x 120 | 19.9 | 1,552.6 | 0.43 | 0.371 | 298.5 |
| 1 x 150 | 21.9 | 1,851.3 | 0.36 | 0.313 | 328.5 |
| 1 x 185 | 23.7 | 2,265.1 | 0.30 | 0.265 | 355.5 |
| 1 x 240 | 27.1 | 2,885.8 | 0.26 | 0.222 | 406.5 |
| 1 x 300 | 30.1 | 3,540.9 | 0.23 | 0.197 | 451.5 |
|
Nominal cross section
|
Outer Diameter approx. |
Weight of cable approx. |
Voltage drop | Mini bending radius | |
| Single phase | Three phase | ||||
| mm2 | mm | kg/km | V/A.km | V/A.km | mm |
| 2 x 1.5 | 10.3 | 251.5 | 30.8 | 26.7 | 154.5 |
| 2 x 2.5 | 11.1 | 287.4 | 18.9 | 16.4 | 166.5 |
| 2 x 4 | 12.0 | 349.2 | 11.8 | 10.2 | 180.0 |
| 2 x 6 | 13.0 | 410.7 | 7.9 | 6.81 | 195.0 |
| 2 x 10 | 16.3 | 526.4 | 4.7 | 4.05 | 244.5 |
| 2 x 16 | 18.4 | 679.8 | 2.94 | 2.55 | 276.0 |
| 2 x 25 | 21.0 | 931.7 | 1.87 | 1.62 | 315.0 |
| 2 x 35 | 23.7 | 1,164.0 | 1.35 | 1.17 | 355.5 |
| 2 x 50 | 26.7 | 1,472.0 | 1.01 | 0.87 | 400.5 |
| 2 x 70 | 30.5 | 1,951.7 | 0.71 | 0.61 | 457.5 |
| 2 x 95 | 34.6 | 2,613.8 | 0.52 | 0.454 | 519.0 |
| 2 x 120 | 38.1 | 3,170.6 | 0.43 | 0.371 | 571.5 |
| 2 x 150 | 42.4 | 3,804.4 | 0.36 | 0.313 | 636.0 |
| 2 x 185 | 46.2 | 4,671.6 | 0.30 | 0.265 | 693.0 |
| 2 x 240 | 51.7 | 5,935.3 | 0.26 | 0.222 | 775.5 |
| 2 x 300 | 57.7 | 7,297.8 | 0.23 | 0.197 | 865.5 |
|
Nominal Cross section |
Outer Diameter approx. |
Weight of cable approx. | Voltage drop |
Mini bending radius |
|
| Single phase | Three phase | ||||
| mm2 | mm | kg/km | V/A.km | V/A.km | mm |
| 3 x 1.5 | 10.7 | 273.3 | 30.8 | 26.7 | 160.5 |
| 3 x 2.5 | 11.6 | 319.4 | 18.9 | 16.4 | 174.0 |
| 3 x 4 | 12.5 | 398.3 | 11.8 | 10.2 | 187.5 |
| 3 x 6 | 13.7 | 479.9 | 7.9 | 6.81 | 205.5 |
| 3 x 10 | 17.3 | 636.1 | 4.7 | 4.05 | 259.5 |
| 3 x 16 | 19.5 | 846.8 | 2.94 | 2.55 | 292.5 |
| 3 x 25 | 22.3 | 1,192.9 | 1.87 | 1.62 | 334.5 |
| 3 x 35 | 25.2 | 1,518.8 | 1.35 | 1.17 | 378.0 |
| 3 x 50 | 28.6 | 1,950.5 | 1.01 | 0.87 | 429.0 |
| 3 x 70 | 32.7 | 2,629.9 | 0.71 | 0.61 | 490.5 |
| 3 x 95 | 37.1 | 3,588.8 | 0.52 | 0.454 | 556.5 |
| 3 x 120 | 40.9 | 4,379.3 | 0.43 | 0.371 | 613.5 |
| 3 x 150 | 45.5 | 5,284.9 | 0.36 | 0.313 | 682.5 |
| 3 x 185 | 49.6 | 6,521.5 | 0.30 | 0.265 | 744.0 |
| 3 x 240 | 55.5 | 8,378.5 | 0.26 | 0.222 | 832.5 |
| 3 x 300 | 62.0 | 1,0309.3 | 0.23 | 0.197 | 930.0 |
|
Nominal Cross section |
Outer Diameter approx. |
Weight of cable approx. | Voltage drop | Mini bending radius | |
| Single phase | Three phase | ||||
| mm2 | mm | kg/km | V/A.km | V/A.km | mm |
| 4 x 1.5 | 11.6 | 320.3 | 30.8 | 26.7 | 174.0 |
| 4 x 2.5 | 12.5 | 379.6 | 18.9 | 16.4 | 187.5 |
| 4 x 4 | 13.7 | 481.3 | 11.8 | 10.2 | 205.5 |
| 4 x 6 | 14.9 | 587.7 | 7.9 | 6.81 | 223.5 |
| 4 x 10 | 18.9 | 792.6 | 4.7 | 4.05 | 283.5 |
| 4 x 16 | 21.4 | 1,070.3 | 2.94 | 2.55 | 321.0 |
| 4 x 25 | 24.5 | 1,528.3 | 1.87 | 1.62 | 367.5 |
| 4 x 35 | 27.8 | 1,961.6 | 1.35 | 1.17 | 417.0 |
| 4 x 50 | 31.7 | 2,554.9 | 1.01 | 0.87 | 475.5 |
| 4 x 70 | 36.4 | 3,460.9 | 0.71 | 0.61 | 546.0 |
| 4 x 95 | 41.3 | 4,740.7 | 0.52 | 0.454 | 619.5 |
| 4 x 120 | 45.5 | 5,797.5 | 0.43 | 0.371 | 682.5 |
| 4 x 150 | 50.7 | 7,038.6 | 0.36 | 0.313 | 760.5 |
| 4 x 185 | 55.2 | 8,663.4 | 0.30 | 0.265 | 828.0 |
| 4 x 240 | 61.9 | 11,185.7 | 0.26 | 0.222 | 928.5 |
| 4 x 300 | 69.2 | 13,822.6 | 0.23 | 0.197 | 1038.0 |
|
Nominal Cross section |
Outer Diameter approx. |
Weight of cable approx. | Voltage drop |
Mini bending radius |
|
| Single phase | Three phase | ||||
| mm2 | mm | kg/km | V/A.km | V/A.km | mm |
| 5 x 1.5 | 12.5 | 377.6 | 30.8 | 26.7 | 187.5 |
| 5 x 2.5 | 13.5 | 451.7 | 18.9 | 16.4 | 202.5 |
| 5 x 4 | 14.8 | 579.4 | 11.8 | 10.2 | 222.0 |
| 5 x 6 | 16.2 | 713.1 | 7.9 | 6.81 | 243.0 |
| 5 x 10 | 20.7 | 971.4 | 4.7 | 4.05 | 310.5 |
| 5 x 16 | 23.4 | 1,322.1 | 2.94 | 2.55 | 351.0 |
| 5 x 25 | 27.0 | 1,903.1 | 1.87 | 1.62 | 405.0 |
| 5 x 35 | 30.9 | 2,470.1 | 1.35 | 1.17 | 463.5 |
| 5 x 50 | 35.2 | 3,225.0 | 1.01 | 0.87 | 528.0 |
| 5 x 70 | 40.4 | 4,375.0 | 0.71 | 0.61 | 606.0 |
| 5 x 95 | 45.9 | 6,008.2 | 0.52 | 0.454 | 688.5 |
| 5 x 120 | 50.6 | 7,379.6 | 0.43 | 0.371 | 759.0 |
| 5 x 150 | 56.4 | 8,929.6 | 0.36 | 0.313 | 846.0 |
| 5 x 185 | 61.5 | 11,036.3 | 0.30 | 0.265 | 922.5 |
| 5 x 240 | 69.0 | 14,247.5 | 0.26 | 0.222 | 1035.0 |
| 5 x 300 | 77.1 | 17,609.6 | 0.23 | 0.197 | 1156.5 |
Some great shots of our manufactering plant
| Mannufacturing plant | R&D Building | Bird's eye view of the plant |
| MV Power Cable Workshop | Cable Reels Waiting to be shipped out | Shipping |
We are China Professional Fire Resistant Armoured Cable Halogen Free Thermoplastic Polyolefin Sheath manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Fire Resistant Cable, fire resistant power cable, fireproof electrical cable, professional fire resistant armoured cableSimilar Or Related
-
Copper Conductor Fire Proof Cables , Security Fire Alarm Cable 2×1.5mm2 With 0.75mm2 Earth
-
FPLR PVC Jacket Fire Resistant Cables , FPL Fire Alarm Cable UL Certificated Al Shield
-

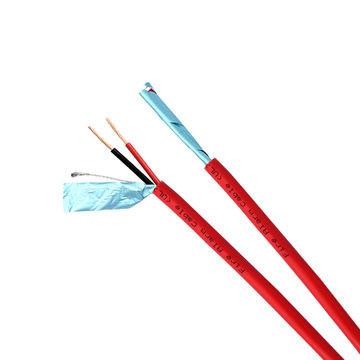

2C/18 AWG Red FPLR Security Shielded Fire Alarm Cable Unshielded Solid Bare Copper
-
