prestressed steel strand/15.2mm /12.7mm pc steel strand/7 wire low relaxation pc strand
prestressed steel strand/15.2mm /12.7mm pc steel strand/7 wire low relaxation pc strand image
Brand Name :
Litong Global
Model Number :
LT-049
Certification :
ISO9001-2008
Place of Origin :
Anhui,China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
800tons/day

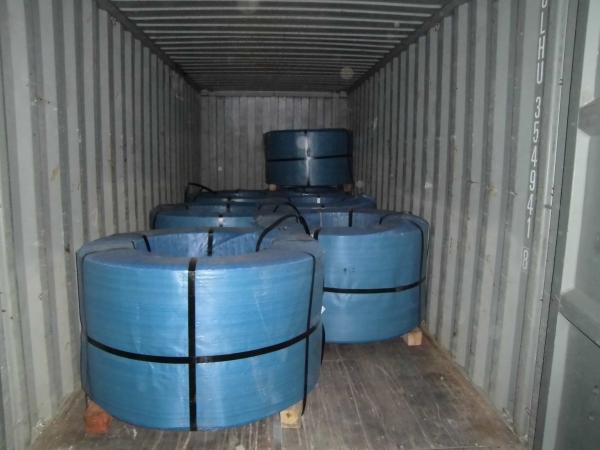

Packaging Details :
Standard export packing in coil on 2 pallets
Steel Grade :
77B/82B
Standard :
AISI, ASTM, BS, DIN, GB, JIS
Alloy Or Not :
Non-alloy
Tensile Strehth :
1860MPA
Material :
SWRH82B
Specifications
1.Material : 77B/82B
2.Delivery:7 days
3.T/S: 1860 Mpa
4.Payment:L/C or T/T
5.MOQ: 10 tons
post tensioning high tensile steel strands wire concrete1860mpa 15.24mm pc steel wire strand
ASTM A416
Grade | Nominal Dia. | Tolerance (mm) | Cross Section Area (Sn/mm2) | Re. Mass per 1m (g/m) | Minimum Breaking Load (Fm/KN) | Min. Load at 1% Extension (Fp0.2/KN) | (L0≥500mm) Agt Elongation Max Load not less than (%) | The Relaxation at 1000 Hours (r/%) | |
(In) | (mm) | ||||||||
270 | 3/8 | 9.53 |
0.65 -0.15 |
54.84 | 432 | 102.3 | 92.1 | 3.5 | 2.5 |
7/16 | 11.11 | 74.19 | 582 | 137.9 | 124.1 | ||||
1/2 | 12.70 | 98.71 | 775 | 183.7 | 165.3 | ||||
3/5 | 15.24 | 140.00 | 1102 | 260.7 | 234.6 |
BS 5896
Grade | Nominal Dia. (mm) | Tolerance (mm) | Cross Section Area (Sn/mm2) | Re. Mass per 1m (g/m) | Tensile Strength not less than (Rm/MPa) | Minimum Breaking Load (Fm/KN) | Min. Load at 1% Extension (Fp0.2/KN) | (L0≥500mm) Agt Elongation Max Load not less than (%) | The Relaxation at 1000 Hours (r/%) |
Standard 7wire | 9.3 |
0.3 -0.15 |
52 | 408 | 1770 | 92 | 81 | 3.5 | 2.5 |
11.0 | 71 | 557 | 1770 | 125 | 110 | ||||
12.5 |
0.4 -0.2 |
93 | 730 | 1770 | 164 | 114 | |||
15.2 | 139 | 1090 | 1670 | 232 | 204 | ||||
Super 7Wire | 9.6 |
0.3 -0.15 |
55 | 432 | 1860 | 102 | 90 | ||
11.3 | 75 | 590 | 1860 | 139 | 122 | ||||
12.9 |
0.4 -0.2 |
100 | 785 | 1860 | 186 | 163 | |||
15.7 | 150 | 1180 | 1770 | 265 | 233 |
Japanese standards JIS G3536:
Steel Grade | Norminal Diameter | Tolerance | Area of section |
Theoretical Weight per 1000 meter |
Breaking Load |
Load at 0.2% Permaneat elongation |
Minimum Elongation At Max load≥ |
Relaxation Value ≤ |
mm | mm | Mm2 | kg | ≥KN | ≥KN | % | % | |
SWPR7A | 9.3 |
+0.4 -0.2 |
51.61 | 405 | 88.8 | 75.5 |
3.5 |
3.0 |
10.8 | 69.68 | 546 | 120 | 102 | ||||
12.4 | 92.90 | 729 | 160 | 136 | ||||
15.2 | 138.70 | 1101 | 240 | 204 | ||||
WEPR7B | 9.5 |
+0.4 -0.2 |
58.84 | 432 | 102 | 86.8 | ||
11.1 | 74.19 | 580 | 138 | 118 | ||||
12.7 | 98.71 | 774 | 183 | 156 | ||||
15.2 | 138.70 | 1101 | 261 | 222 |
FAQ
Q:If found the product with substardard quality.How can you solve it?
A:The buyer will be required to submit proof file,picture,ideo of the said substandard cargo send to us first. We can also send our engineer to your filed to check it directly,if need any.
Q:If sample available?
A:Yes,we can offer sample free of charge.But the express freight should be on buyer’s account.
Q:If I order big quantity,what’s the good price?
A:Please send the details enquiry to us ,such as the Item Number,Quantity for each item, Quality request,Logo,Payment Terms,Transport method,Discharge place etc.We will make the accurate quotation to you as soon as possible.
If you are interested in our products, pls feel free to tell me the diameter or nominal section area or the nick name to me. Then,I will send our best quotation to you.
Contact us:
We are China prestressed steel strand/15.2mm /12.7mm pc steel strand/7 wire low relaxation pc strand manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 7 wire PC Strand, PC Steel Wire, pc strand wireFAST AND RELIABLE SERVICE FOR YOUR PROJECT
