PRE-ASSAMBLED ALUMINIUM CABLE 0.6/1KV Aerial Bundled Cable Bundled Assembled Cable Aluminum

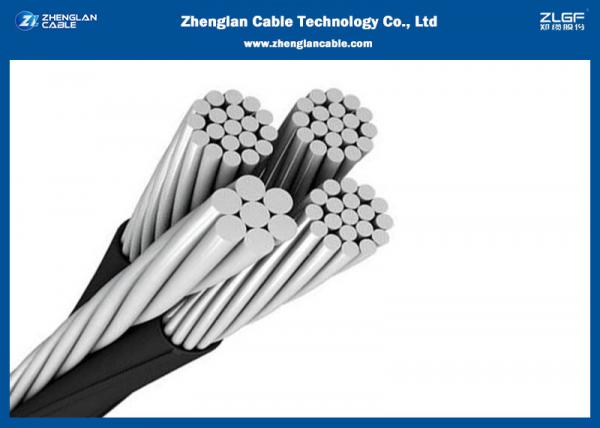

PRE-ASSAMBLED ALUMINIUM CABLE 0.6/1KV Aerial Bundled Cable Bundled Assembled Cable Aluminum image
Brand Name :
Zhenglan Cable
Model Number :
ABC Cable
Certification :
3C，ISO 9001:2015，ISO 14001:2005
Place of Origin :
Henan, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
100Km/Month
Delivery Time :
15-18 days
Packaging Details :
Wooden drum, wooden-steel drum, coil or plastic drum customized
Insulation Material :
XLPE
Conductor Material :
Aluminum
Application :
Overhead
Quality :
100% test
Model :
Aerial Bundled Cable
Standard :
ISO 9001:2015
structure :
AL/XLPE
Color :
Black
Running Voltage :
0.6/1kV
PRE-ASSAMBLED ALUMINIUM CABLE 0.6/1KV Aerial Bundled Cable Bundled Assembled Cable Aluminum/XLPE Cable
Aerial bundled cable is weatherproof PVC, PE and XLPE insulated overhead cable under AC rated voltage of 1kv in overhead power line. 0.6/1kv Aerial Insulated Cable consists of Aluminum, Hard Copper or Soft Copper, Aluminum alloy Core, PVC/PE/XLPE Insulation
Quick Details
Place of Origin:CHINA
Brand Name:Zhenglan
Model Number:aerial bundle cable
Type:Low Voltage, low voltage overhead abc cable
Application:Overhead
Conductor Material: Aluminum
Insulation Material: XLPE
Product name:0.6/1kv aluminum aerial cable
Standard:NFC IEC
Packaging:DRUM
Certificate:ISO9001/ISO14001 /OHSAS18001/CCC
Conductor:AAC AAAC
Sheath:XLPE PE
Supply Ability:100000Meter per Month
Ariel bunded cable Construction:
1. Conductor: Aluminium 1350, class 2.
2. Insulation: Cross linked polyethylene XLPE.
3. Public lighting: Aluminium 1350 insulated with cross-linked polyethylene XLPE.
4. Insulated neutral messenger: AAAC – All Alloy Aluminium 6201 – XLPE.
5. Core identification: rib markings
Aerial bundled cable reference STANDARDS
IEC 60228; IEC 60811-201; IEC 60811-401; IEC 60811-402; IEC 60811-501; IEC 60811-502; IEC 60811-507; IEC 60811-511; ASTM B 231; ICEA S-76-474;
NTP 370.254; NTP 370.258; NTP-IEC 60228; NFC 33-209
Marking:
(Nb. Cores x Section) + (Nb. conductors x public lighting section) + NA(Neutral messenger section) – Year – Sequential length.
0.6/1kv CAAI cable Application:
This cable usually used for urban and rural overhead secondary distribution networks, with voltages up to 1000 V. They permit longer spans, lower mounting, minimum support, and simplified installation, particularly among trees or in congested areas. It also offers maximum personnel safety and protection against outage. Resistance to abrasion, flexing, and effects of heat, moisture, sunlight and cold assure high dependability through long years of services.
Specification Data
| Nominal Area | Number /Dia. | Insulation Thickness | Dcresistance PHASE | NEUTRAL Rated Strength kn | Delivery Lerngth | |
| mm2 | mm | mm | & Ω /km | AAC | AAAC | km |
| 1×16+16 | 7/1.70 | 1.3 | 1.7986 | 3.02 | 4.69 | 10 |
| 2×16+16 | 7/1.70 | 1.3 | 1.7986 | 3.02 | 4.69 | 7.5 |
| 3×16+16 | 7/1.70 | 1.3 | 1.7986 | 3.02 | 4.69 | 5 |
| 4×16 | 7/1.70 | 1.3 | 1.7986 | 3.02 | 4.69 | 5 |
| 1×25+25 | 7/2.10 | 1.3 | 1.1787 | 4.36 | 7.15 | 6.5 |
| 2×25+25 | 7/2.10 | 1.3 | 1.1787 | 4.36 | 7.15 | 5 |
| 3×25+25 | 7/2.10 | 1.3 | 1.1787 | 4.36 | 7.15 | 3.2 |
| 4×25 | 7/2.10 | 1.3 | 1.1787 | 4.36 | 7.15 | 3.2 |
| 1×35+35 | 7/2.50 | 1.3 | 0.8317 | 6.01 | 10.14 | 4.5 |
| 2×35+35 | 7/2.50 | 1.3 | 0.8317 | 6.01 | 10.14 | 3.5 |
| 3×35+35 | 7/2.50 | 1.3 | 0.8317 | 6.01 | 10.14 | 2.2 |
| 4×35 | 7/2.50 | 1.3 | 0.8317 | 6.01 | 10.14 | 2.2 |
| 1×50+50 | 7/3.0 | 1.5 | 0.5776 | 8.41 | 14.6 | 3 |
| 3×50+50 | 7/3.0 | 1.5 | 0.5776 | 8.41 | 14.6 | 1.3 |
| 1×70+70 | 19/2.10 | 1.5 | 0.4367 | 11.85 | 19.41 | 2.2 |
| 3×70+70 | 19/2.10 | 1.5 | 0.4367 | 11.85 | 19.41 | 0.8 |
| 3×95+95 | 19/2.50 | 1.6 | 0.3081 | 16.32 | 27.51 | 0.5 |
| Code Word | 3×25mm2+1×54.6mm2 | 3×35mm2+1×54.6mm2 | 3×50mm2+1×54.6mm2 | 3×70mm2+1×54.6mm2 | 3×35mm2+1×54.6mm2+1×16mm2 | 3×70mm2+1×54.6mm2+1×16mm2 | 3×70+1×70mm2 | ||
| Phase Conductor | Cross Section (mm) | 25 | 35 | 50 | 70 | 35 | 70 | 70 | |
| Number of Wires | 7 | 7 | 7 | 12 | 7 | 12 | 12 | ||
| Insulation Thickness (mm) | 1.4 | 1.6 | 1.6 | 1.8 | 1.6 | 1.8 | 1.8 | ||
| D.C.Resistance At 20 ℃(Ohm/km) | 1.2 | 0.868 | 0.641 | 0.443 | 0.868 | 0.443 | 0.443 | ||
| Minium Rated Strength(daN) | 300 | – | – | – | – | – | – | ||
| Messenger | Cross Section (mm) | 54.6 | 54.6 | 54.6 | 54.6 | 54.6 | 54.6 | 70 | |
| Number of Wires | 7 | 7 | 7 | 7 | 7 | 7 | 7 | ||
| Insulation Thickness (mm) | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.6 | 1.5 | ||
| D.C.Resistance A 20 ℃( Ohm/km) | 0.63 | 0.63 | 0.63 | 0.63 | 0.63 | 0.63 | 0.5 | ||
| Minium Rated Strength(daN) | 1660 | 1660 | 1660 | 1660 | 1660 | 1660 | 2050 | ||
| Public Lighting | Cross Section (mm) | – | – | – | – | 16 | 16 | – | |
| Number of Wires | – | – | – | – | 7 | 7 | – | ||
| Insulation Thickness (mm) | – | – | – | – | 1.2 | 1.2 | – | ||
| D.C.Resistance At 20 ℃(Ohm/km) | – | – | – | – | 1.91 | 1.91 | – | ||
| Minium Rated Strength(daN) | – | – | – | – | 190 | 190 | – | ||
| Conductor Diameter | Phase | Max | 6.3 | 7.3 | 8.4 | 10.2 | 7.3 | 10.2 | 10.2 |
| Min | 5.8 | 6.8 | 7.9 | 9.7 | 6.8 | 9.7 | 9.7 | ||
| Messenger | Max | – | – | – | – | 5.1 | 5.1 | – | |
| Min | – | – | – | – | 4.6 | 4.6 | – | ||
| Public Lighting | Max | – | – | – | – | 5.1 | 5.1 | – | |
| Min | – | – | – | – | 4.6 | 4.6 | – | ||
| Overall Diameter | Phase | Max | 9.4 | 10.9 | 12 | 14.2 | 10.9 | 14.2 | 14.2 |
| Min | 8.6 | 10 | 11.1 | 13.3 | 10 | 13.3 | 13.3 | ||
| Messenger | Max | 13 | 13 | 13 | 13 | 13 | 13 | 13.6 | |
| Min | 12.3 | 12.3 | 12.3 | 12.3 | 12.3 | 12.3 | 12.9 | ||
| Public Lighting | Max | – | – | – | – | 7.8 | 7.8 | – | |
| Min | – | – | – | – | 7 | 7 | – | ||
