Power Distribution Aluminium Wire Rod Residential Construction Cable
Power Distribution Aluminium Wire Rod Residential Construction Cable image
Power Distribution Aluminium Wire Rod Residential Construction Cable
Copper wire can be more affordably replaced with aluminum wire. Although it takes one pound of aluminum wire to equal the current-carrying capability of two pounds of copper wire, it requires a bigger wire gauge than copper wire to carry the same current. This makes aluminum wire a very desirable material for utilities, builders, and other users.
Basic Info.
Product Description
Aluminum wire rod,also named electric round aluminum rod is mainly used in the main raw materials of wires and cables, and widely used in the construction of power grids at all levels. Through the processing in the production process, it can be used for the production and processing of enameled wire and electromagnetic wire,The surface of the rod is clean, smooth and seamless.
| Chem ical Com ponents (%) | ||||||||||||||
| Type | Si | Fe | Cu | Mn | Mg | Cr | Ni | Zn | Ti | Zr | Other | Al | ||
| per | Toal | |||||||||||||
| 1350 | 0.1 | 0.4 | 0.05 | 0.01 | – | 0.01 | – | 0.05 | 0.03 Ga, 0.05B 0.02 V+Ti |
– | – | 0.03 | 0.1 | 99.5 |
| 1370 | 0.1 | 0.25 | 0.02 | 0.01 | 0.02 | 0.01 | – | 0.04 | 0.03 Ga, 0.02B 0.02 V+Ti |
– | – | 0.02 | 0.1 | 99.7 |
| 1A60 | 0.1 | 0.25 | 0.01 | – | – | – | – | – | – | 0.02 R+Ti +Mn+Gr |
– | 0.03 | – | 99.6 |
| Conductivity and Strength Tens ile | |||||
| Type | Conductivity (20ºC)/O·m <= | Conductivity (20ºC)/%IACS >= | Strength Tens ile Mpa | Elongation/% (200m m gauge length) >= | |
| 1350 | 0 | 27.9 | 61.8 | 60-95 | 25 |
| H12 | 28.03 | 61.5 | 85-115 | 12 | |
| H13 | 28.08 | 61.4 | 105-135 | 10 | |
| H14 | 28.12 | 61.3 | 120-150 | 8 | |
|
1370 |
0 | 27.9 | 61.8 | 60-95 | 25 |
| H12 | 28.01 | 61.55 | 85-115 | 11 | |
| H13 | 28.03 | 61.5 | 105-135 | 8 | |
| H14 | 28.05 | 61.47 | 115-150 | 5 | |
| H16 | 28.08 | 61.4 | 130-160 | 5 | |
|
1A60 |
0 | 27.55 | 62.68 | 60-90 | 25 |
| H12 | 27.85 | 61.91 | 80-110 | 13 | |
| H13 | 28.01 | 61.55 | 95-115 | 11 | |
| H14 | 28.01 | 61.55 | 110-130 | 8 | |
| H16 | 28.01 | 61.55 | 120-150 | 5 | |
Product Description
(1) It is mainly used for drawing the core of wires and cables.
(2) The surface of the rod is clean, smooth and seamless.

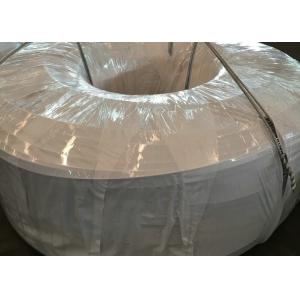

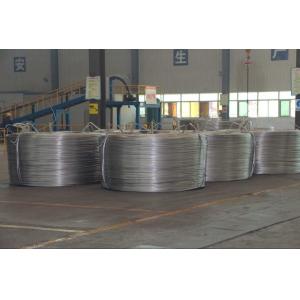

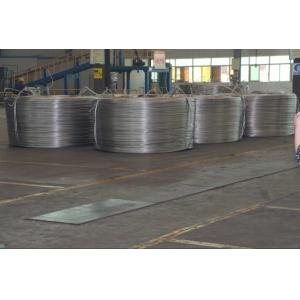

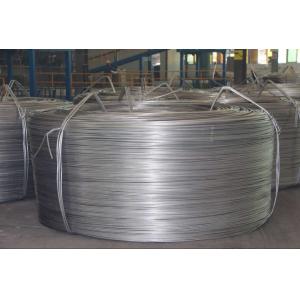

(3) Coil weight: large coil 2000kg, small coil: 300–2000kg.
Main Standard Specifications of 1350 Type,ISO Certificate Aluminum Wire Rod 9.5mm for Wire Drawing:
(1)Aluminum Rod was produced and provided by consulting and following the American standard ASTM B233 and Germany standard EN17152.
(2)Producing and providing the products according to Chinese standard GB/T3954-2001, consulting
and following the American standard ASTM B233:1997, and Germany DIN standard EN 17152:1997.
TABLE 1-Textile Shield for Power Cable for Aluminum Rod
| Purity | Chemical Composition% | |||||
| AL Minimum |
Foreign Content,Maximum | |||||
| Si | Fe | Cu | V+Cr+Mn+Ti | Other | ||
| Al99.60E | 99.6 | 0.08 | 0.20 | 0.005 | 0.01 | 0.3 |
| Type | Tensile Strength,N/mm² | Fracture Toughness%,Min | Electrical Resistance Ωmm²/m 20,Max |
| A | 60-80 | 25 | 0.02755 |
| A2 | 80-110 | 12 | 0.02785 |
| A4 | 95-115 | 10 | 0.02801 |
| A6 | 110-130 | 8 | 0.02801 |
| A8 | 120-150 | 6 | 0.02801 |
TABLE 2- Tensile Property Limits for 1350mm Aluminum Rod
| Temper | Tensile Strength | |
| Ks j | M pa | |
| 1350-O | 8.5-14.0 | 59-97 |
| 1350-H12 and-H22 | 12.0-17.0 | 83-117 |
| 1350-H14 and-H24 | 15.0-20.0 | 103-138 |
| 1350-H16 and-H26 | 17.0-22.0 | 117-152 |
TABLE 3- Electrical Resistivity Limits for Aluninium wire
| Temper | Resistivity | Equivalent Volume Conductivity,% |
| Max.Ω.mm2/m | IACS Min. | |
| 1350-O | 0.027899 | 61.8 |
| 1350-H12 and-H22 | 0.028035 | 61.5 |
| 1350-H14 and-H24 | 0.028080 | 61.4 |
| 1350-H16 and-H26 | 0.028126 | 61.3 |
Packing Method of 1350 Type,ISO Certificate Aluminum Wire Rod 9.5mm for Wire Drawing:
1.The aluminum rod is usually packed with wooden drum.
2.The aluminum rod will pack according to customer's requirement.
3.Delivery within 7-15 working days after receive your payment.
4.Supply and ship on time.
Inspection:
To make sure customer receive the good quality goods,100% inspection to be done before delivery.
Our Services:
1.Inquiries are typically answered within 12 hours and OEM is welcome.
2.We have experienced QC to control the quality of different kind of cables.
3.We're CCC certificated, and can provide CE, Rohs and SGS certificates before exporting.
4.We have grown from a small factory with an annual turnover of USD$50,000 to over USD50,000,000 during these 10 years.
5.Huge Inventory Allows Us To Ship Your Order Immediately.
6.Our employees are all capable and professinal.They can offer you the Prompt Courteous Service.
7.We ship worldwide.
We are China Power Distribution Aluminium Wire Rod Residential Construction Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Aluminium Wire Rod, Overhead Cable Aluminium Wire Rod, Power Distribution Aluminium Wire Rod, Residential Construction Aluminium Wire RodSimilar Or Related
