Power Construction Tools Cable Pulling Clamp With Delicate Smooth Clamp Mouth

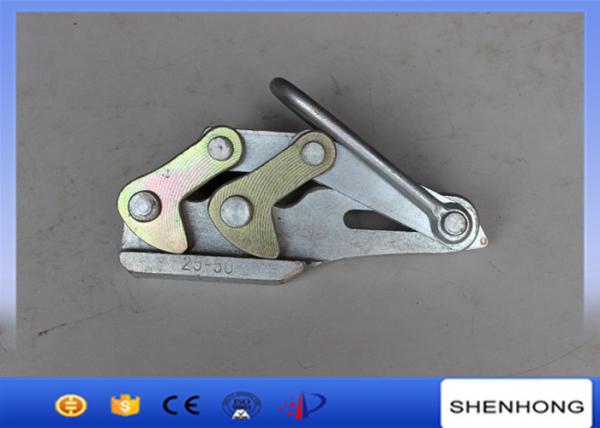

Power Construction Tools Cable Pulling Clamp With Delicate Smooth Clamp Mouth image
Brand Name :
SHENHONG
Model Number :
SKDS
Certification :
ISO
Place of Origin :
Jiangsu, China
MOQ :
10pcs
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000pcs per month
Delivery Time :
7 days after payment
Packaging Details :
carton
Rated load(KN) :
10-30
Weight(kg) :
2.6-4.1
Max Gap(mm) :
11-15
Type :
Double Cam Clamp
Uses :
For sagging of earthwires and adjusting of guys
Color :
As request
Power Construction Tools Cable Pulling Clamp With Delicate Smooth Clamp Mouth
Cable Grip Introduction
A cable grip is a device for propelling a vehicle by attaching to a wire cable (also called wire rope) running at a (relatively) constant speed. The vehicle may be suspended from the cable, as in the case of aerial lifts such as a gondola lift, may be guided by rails, as in a cable traction railway, or may be self-guiding, as in a button lift. Typically, multiple vehicles will use the same cable; where just one or two vehicles are in use they will tend to be attached to the cable permanently (e.g. funiculars).
While the cable grips used in the original cable railways were manually operated, requiring considerable skill and strength, modern cable grips tend to be automatic. Given that the cable runs at a relatively constant speed, accelerating the vehicle to match the speed of the cable presents a technical difficulty; possible methods are to apply the grip gradually, to accelerate the vehicle (e.g. by guiding wheels) prior to applying the grip, or to use a sprung linkage between the grip and the vehicle. Also, the cable needs to be able to handle friction from the grip and increased load while the vehicle is accelerating.
Technical Data
| Model | Rated load(KN) | Applicable Stranded wire | Maximum Gap(mm) | Weight(kg) |
| SKDS-1 | 10 | GJ25-50 | 11 | 2.6 |
| SKDS-2 | 20 | GJ50-70 | 13 | 3.1 |
| SKDS-3 | 30 | GJ70-120 | 15 | 4.1 |
Uses
For sagging of earthwires and adjusting of guys.
Features
1. Match with delicate smooth clamp mouth, minimal harm to wires.
2. Made by high tensile forged carbon steel.
3. Half-moon shape clamping jaw is suitable for pulling steel strand and steel wire.
4. Planar shape clamping jaw is suitable for pulling electric cable, will not damage the cable’s surface.
5. Clamp mouth with insurance device, will not jump wire.
6. After special heat treatment, the product has strong tension stress, high meshing degree and not easy slip or distort.
7. Material: High Tensile Carbon Steel
8. Constructions: heat treatment and high temperature treatment (Quenched and Tempered)
9. Finish: color zinc plated
We are China Power Construction Tools Cable Pulling Clamp With Delicate Smooth Clamp Mouth manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
