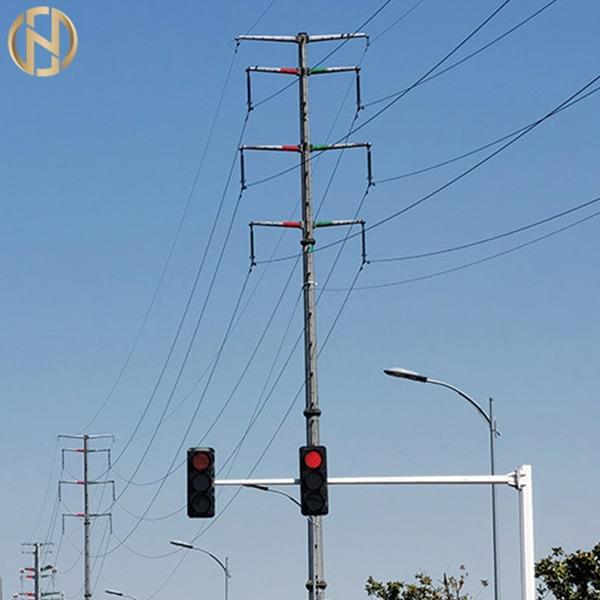

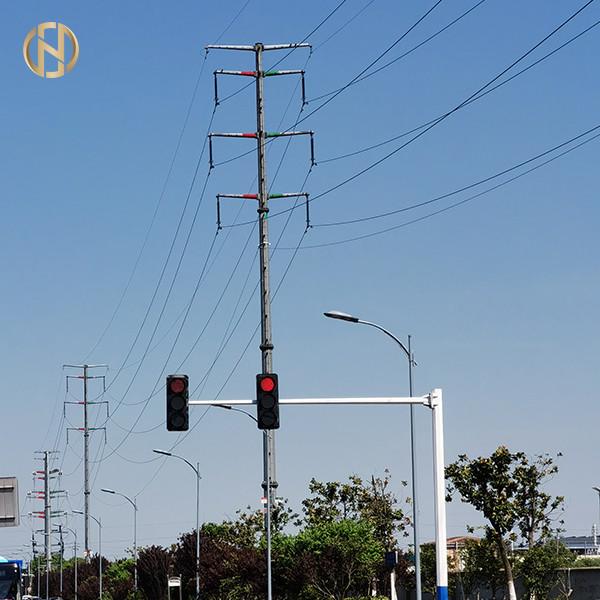

Polygonal Shape Traffic Light Pole , 6M X 12M Signal Light Pole With Arm
Polygonal Shape Traffic Light Pole , 6M X 12M Signal Light Pole With Arm image
Brand Name :
FUTAO
Model Number :
FT-CP032
Certification :
ISO 9001
Place of Origin :
Jiangsu China
MOQ :
1 Pieces
Price :
$80 – $1000
Payment Terms :
L/C, T/T
Supply Ability :
1200 pieces every month
Delivery Time :
30 – 60 workdays
Packaging Details :
40HC or OT, wrap by mat or straw mat
Height :
Customized
Length of Arm :
3M 6M 12M
Thinkness :
2.5mm – 20mm
Arm :
with Arm
Surface Treatment :
Hot Dip Galvanized / Powder Coated / Painting
Material :
Steel (Q235, Q345, A36, GR50), Stainless Steel
Galvanization :
85μm-100μm
Package :
Depending on clients requirements
Origin :
Jiangsu China
Certificate :
ISO 9001
Customized :
yes
Design Wind :
50M/s,60M/s
Products name :
6MX12M Polygonal Shape L Type Steel Traffic Signal Poles
6MX12M Polygonal Shape L Type Steel Traffic Signal Poles
Product Description
l Model Number: FT-CP022
l Design Standard: AASHTO (American Association of State Highway Transportation Officials) Standard
l Sensor Type: CMOS
l Power Consumption: 20 to 400W
l Pole Shaft Material: ASTM A572 GR65/Q345/Q235/GR50
l Brackets: Single or Double Brackets are available depending on security camera requirements
l Mounting Method: Base Plate mounting with anchor bolts/ Direct Burial
l Surface Treatment: Hot Dip Galvanization/ Powder Coating
l Aseismic Design: Built to withstand up to a Magnitude scale of 7 and below
l Color: RAL Color Standard
l Material: Q235, 355, A36, GR50,GR65
l Dimension Tolerances: +/-1%
l Pole Shape: Conical, Polygonal (Hexagonal, Octagonal, Dodecagonal)
l Certification: ISO9001:2000
l Design Wind Resistance: 160 km/h or depending on clients request.
l Payment Terms: TT/LC
Traffic signage is an important aspect of any traffic control system. A dependable and sturdy pole is required to support these traffic signs.
At Futao Metal, we produce various types of traffic signal poles including octagonal, cylindrical, and conical shaped poles.
Going one step further, our poles can be designed to have multiple mounting arms if required.
All traffic and signal poles shall consist of a single vertical pole, connecting flanges, mounting arms, and anchor bolts.
Straight or seamless steel pipes shall be used for the vertical pole and mounting arms.
The connection ends of the main pole and the mounting arm shall adopt the same material used by the mounting arms and will be protected by stiffeners.
The vertical pole and its base plate will be connected by a flange and anchor bolts.
Horizontal mounting arms are connected to the main vertical pole using a flange and further reinforced using stiffeners.
Specific Details
| Material | ASTM GR65,GR50,Q460 A572,S355,Q345/Q235 |
| Poles Deflection | Accordance with the pole strength as Clients request. |
| Pole’s shape | Conical, Polygonal, Round |
| CCTV Poles Type | “T” Type,”L”Type,”I” Type |
| CCTV Pole Main Shaft Height | Normally, the CCTV Poles Main Shaft Length at 6 Meters or 8 Meters. |
| CCTV Pole Cantilever Length | Depending on width of Road in Clients Country. |
| Application | Main Street,High Way Zones |
| Height | 1-16M composed of two or three sections |
| Pole Shaft Thickness | 2.5mm-20mm |
| Poles Stiffener Size | Accordance with Flange size to decide |
| Overlap Length Calculation | Upper Section of the bottom diameter more than 1.5 times |
| Surface treatment | Hot Dip Galvanization, Electrostatic Spray |
| Components | Signal Lights(Red/Green/Yellow Color),Camera etc. |
| Power Cabinet | Power Cabinet installed at outdoor to control the Signal Lights Colors Exchanged. |
| Power Cable Length Using | Power Cable Length using depending on the Poles height and Signal Lights/Camera Wattage/Quantity. |
| Galvanization Thickness | 80-100 microns on average according to BS EN ISO1461 standards |
| Galvanization Suitable Wall Thickness | At least ≥2.5mm Wall Thickness, |
| How long Dipped into Zinc pool for the poles | The time Dipped into Zinc pool depending on the poles Wall Thickness and the Galvanized thickness Execution Standard |
| Mounting Height | 3-16M |
| Pole Shape | Conical, Polygonal, Round |
| Brackets | Single or Double Brackets of various sizes and shapes as per clients’ requirements |
| Welding | Welding conforms to international welding standard of CWB |
| Base Plate Mounting | A square or round Base Plate with slotted holes used in tandem with anchor bolts |
| Ground Mounting | The bottom part of the pole shall be buried underground at site. Depth of burial as per clients’ requirements |
| Galvanization | Hot Dip Galvanization with and average thickness of 80-100µm |
| Powder Coating | Pure Polyester Powder Painting, coloring optional |
| Joint Type(Connection method) | Slip joint by upper section insert into lower section |
| Flange connection to flange(outer flange/inner flange) | |
| Minimum yield strength | 355 Mpa |
| Minimum ultimate tensile strength | 490 Mpa |
| Max ultimate tensile strength | 620 Mpa |
| Length of per section | Within 14m once forming without slip joint |
| Welding | We has past flaw testing.Internal and external double welding makes the welding beautiful in shape Welding Standard :AWS ( American Welding Society ) D 1.1 |
| Welds slags removing | Burrs or sharp edges shall be removed,all welds shall be cleaned mechanically against slag and spatters before hot dip galvanizing. |
Process of Production
Verification of Materials → Cutting → Molding or Bending → Vertical Welding → Verification of Dimensions → Flange Welding → Hole Drilling → Calibration → Deburring Process → Galvanizing, Powder Coating or Painting → Recalibration → Threading → Packaging
Product Details
Testing
Packaging & Shipping
We pack the top and bottom parts of the pole with a mat or straw bale in order to protect it from damage to the galvanized surface that may occur during transportation.
Packaging can also be done according to clients’ requirements.
We can ship the poles by sea or air or express or trains and we have our regular shipping agent.
FAQ
Trade terms:
1. Price Term: EXW,FOB,CFR,CIF,FCA or others.
The price includes pole shaft, base plate, cross arm and anchor part.
2. Payment: 30%T/T in advance,70%T/T or L/C at sight before shipment. Other payment way can be negotiated.
3. Package: Plastic woven bag or old blanket or according to clients requirement.
4. Delivery time: within 30-60 workdays after receiving deposit.
| Q1. How can I get a price of needed pole? |
|
A: 1. Please provide exact dimensions such as height, pole shaft material type and thickness, top and bottom diameters. We can then give you an accurate quotation based on your specifications. |
| Q2. I am a small wholesaler; do you accept a small order? |
| A: It's not a problem if you are a small wholesaler; we could accept orders of various quantities. |
| Q3. I am a designer; Can you help me to produce the sample which we designed? |
| A: Our mission is to help our customers be successful. We are more than happy to help you solve any problems that you may have. |
| Q4: We want be your agent for our area. How do I apply for this? |
| A: Please send your proposal and your company profile.It will be better if we can know the estimated purchase quantity of every year. |
| Q5. Tell me about your company? |
| We have been a manufacturer and exporter of all kinds of steel poles including power poles, street lighting poles, telecommunications poles and other steel based products since 2000. Our products have been exported to many regions around the world. |
| Q6. Do you have some special policies for Branded companies? |
| A: Yes, we have some special support for the company who has own brand but are also in our VIP customers list. Please send us a copy of your sales data so we can analyze the best course of action in supporting you for your products in your market. |
| Q7. Do you provide Door to Door service? Because i don't know how to deal with customs clearance. |
| A: We provide Door to Door service to help you reduce shipping time and costs. This is because we have additional discounts with the shipping companies as we have done many shipments in the past. This in turn will save you lots of time and money. |
We are China Polygonal Shape Traffic Light Pole , 6M X 12M Signal Light Pole With Arm manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: Traffic Light Pole, traffic light post, traffic signal poleSimilar Or Related
-

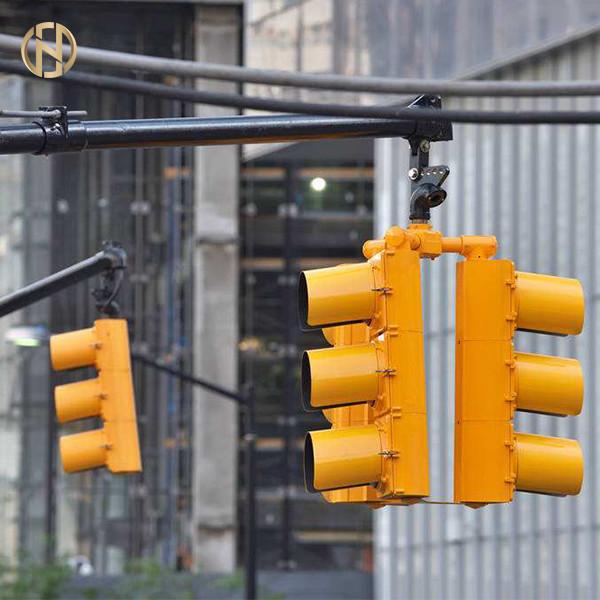

Hot Dip Galvanized Traffic Signal Pole 4M 6M 8M For Traffic Control System
-
