Plastic Insulated Control Cable

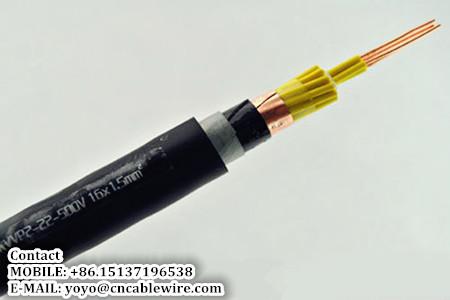

Plastic Insulated Control Cable image
Brand Name :
Gongyi Shengzhou Metal Products Trading Co., Ltd.
Model Number :
Plastic Insulated Control Cable
Place of Origin :
China
MOQ :
10000 m
Payment Terms :
T/T
Delivery Time :
30 days
Packaging Details :
Wooden wheel
Plastic Insulated Control Cable
Characteristics of Plastic Insulated Control Cable
Halogen-free low-smoke polyolefin has a small amount of smoke when burning, no halogen acid gas release, are environmentally friendly cables suitable for fire-fighting with special requirements of the occasion.
Application of Plastic Insulated Control Cable
This product is suitable for AC rated voltage 450 / 750V and below automatic control or monitoring system, electrical instrumentation etc. other occasions with the transmission line connection.
Plastic Insulated Control Cable Standard
GB9330-88
Flame retardant performance test execution GB12666-90 standard
Feature of Plastic Insulated Control Cable
1. AC rated voltage: Uo/U 450/750V
2. Maximum operating temperature:
PVC (PE) insulation does not exceed 70 ℃
Cross-linked polyethylene insulation 90 ℃
Low – smoke Halogen – free Flame Retardant Polyolefin 70 ℃
Low – smoke Halogen – free flame retardant cross – linked polyolefin 90 ℃ and 125 ℃ two kinds
3.Minimum ambient temperature:
PVC sheath: fixed laying -40 ℃, non-fixed laying -15 ℃
4.Cable installation laying temperature should not be less than 0 ℃.
5.The recommended bending radius for cables is as follows:
No armored cable, should not be less than 6 times the cable diameter;
Armored or copper tape shielded cable, should not be less than 12 times the cable diameter;
Shielded flexible cable, not less than 6 times the cable diameter.
Model of Plastic Insulated Control Cable
1.PVC insulated and sheathed control cables
| KVV | Copper conductor PVC insulated PVC sheathed control cable |
| KVVP | Copper conductor PVC insulated PVC sheathed copper wire braided shielded control cable |
| KVVP2 | Copper conductor PVC insulated PVC sheathed copper tape shielded control cable |
| KVV22 | Copper conductor PVC insulated PVC sheathed steel tape armored control cable |
| KVVR | Copper conductor PVC insulated PVC sheathed control flexible cable |
| KVVRP | Copper conductor PVC insulated PVC sheathed copper wire braid shielded control flexible cable |
| KVVP2-22 | Copper conductor PVC insulated PVC sheathed copper tape shielded steel tape armored control cable |
2.XLPE insulated PVC sheathed control cable
| KYJV | Copper conductor, XLPE insulated, PVC sheathed control cable |
| KYJVR | Copper conductor, XLPE insulated, PVC sheathed control flexible cable |
| KYJVP | Copper core structured, XLPE insulated, copper wire braid shielded, PVC sheathed control cable |
| KYJVRP | Copper core structured, XLPE insulated, copper wire braid shielded, PVC sheathed control flexible cable |
| KYJVP2 | Copper conductor XLPE insulated copper tape shielded PVC sheathed control cable |
| KYJVRP2 | Copper conductor cross – linked polyethylene insulated copper tape shielded PVC sheathed control flexible cable |
| KYJV22 | Copper conductor XLPE insulated PVC sheathed steel tape armored control cable |
| KYJVP22 | Copper conductor cross – linked polyethylene insulated copper braid shielded PVC sheathed steel tape armored control cable |
| KYJVP2-22 | Copper conductor cross – linked polyethylene insulated copper tape shielded PVC sheathed steel tape armored control cable |
3.Low smoke and halogen free flame retardant polyolefin insulated and sheathed control cable
| KYDYD | Copper conductor low smoke and halogen free flame retardant polyolefin insulated and sheathed control cable |
| KYDYDR | Copper conductor low smoke zero halogen flame retardant polyolefin insulated and sheathed control soft cable |
| KYDYDP | Copper conductor low smoke zero halogen flame retardant polyolefin insulated and sheathed copper wire braid shield control cable |
| KYDYDRP | Copper conductor low smoke and halogen free flame retardant polyolefin insulated and sheathed copper wire braid shield control soft cable |
| KYDYDP2 | Copper conductor low smoke and halogen free flame retardant polyolefin insulated and sheathed copper tape shield control cable |
| KYDYD RP2 | Copper conductor low smoke and halogen free flame retardant polyolefin insulated and sheathed copper tape shield control soft cable |
| KYDYD-22 | Copper core low smoke zero halogen flame retardant polyolefin insulated and sheathed steel tape armored control cable |
| KYDYDP22 | Copper core low smoke zero halogen flame retardant polyolefin insulated and sheathed copper wire braid shielded steel tape armored control cable |
| KYDYDP2-22 | Copper conductor low smoke and halogen free flame retardant polyolefin insulated and sheathed copper tape shielded steel tape armored control cable |
| Note: The basic models in the insulation and jacket there YDJ low smoke zero halogen flame retardant cross-linked polyolefin | |
