Pipe straightening machine Underground Cable Installation Tools splicing sleeve
Pipe straightening machine Underground Cable Installation Tools splicing sleeve image
Brand Name :
SHENHONG
Model Number :
YJZ
Certification :
BV,ISO
Place of Origin :
Jiangsu,China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500 Set/Sets per Month
Delivery Time :
ten days after deposit
Packaging Details :
wooden case
Application :
construction
Used :
crimping
Maximum straighten force :
20-150KN
Maximum application :
ACSR720-1250
Maximum diameter of splicing sleeves :
60-80mm
Weight :
12-15.5kg

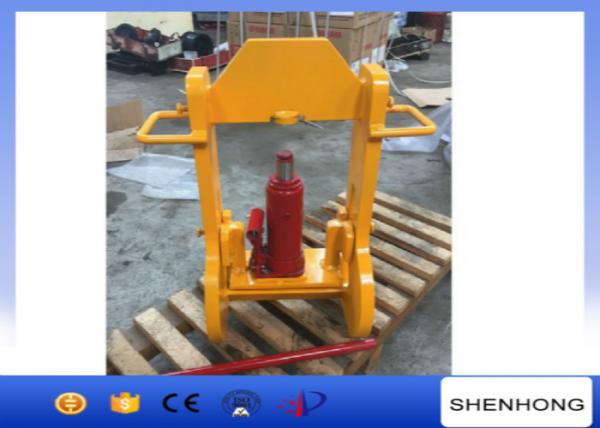

Pipe straightening machine splicing sleeve crimp pipe straightener
Application
It serves to straighten the bent splice sleeve with its specification of LGJ720 or below after the crimping process. This product weighs 12kg, and its maximum straightening force reaches 20kN. The item number is 17211.
Technical data of Pipe straightening machine splicing sleeve crimp pipe straightener
| Item number | 17211 | 17212 | 17212A |
| Model | YJZ2 | YJZ3 | YJZ4 |
| Maximum straighten force(kN) | 20 | 50 | 150 |
| Maximum applicable conductor | ACSR720 | ACSR900 | ACSR1250 |
| Maximum diameter of splicing sleeves(mm) | Φ60 | Φ68 | Φ80 |
| Dimension(mm) | 300×260×507 | 452×391×145 | 400×375×140 |
| Weight(kg) | 12 | 13.5 | 15.5 |
| Remark |
Need to purchase mathched manual pump CSB63 |
Shipment
1. The machine will be shipped in container
2. We will ship the products within one month normally after receiving the payment.
3. Stock is available for standard product.
Payment
1. We accept T/T and L/C.
2. Please send swift copy of T/T if you arrange payment by T/T
3. Please send us the L/C draft to us before issue L/C.
We are China Pipe straightening machine Underground Cable Installation Tools splicing sleeve manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
