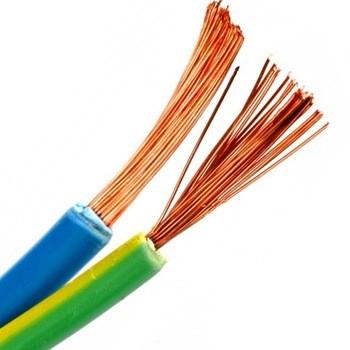

Oxygen Free Flexible Electrical Cable Low Voltage Double PVC Insulated

Oxygen Free Flexible Electrical Cable Low Voltage Double PVC Insulated image

Get a Quote Email to us

MOQ :
100m

Price :
USD 0.87-2.66/M

Payment Terms :
L/C, T/T

Delivery Time :
7 Days after received deposit

Packaging Details :
Wooden drum

Application :
Industrial,Household

Sheath color :
Optional

Conductor Type :
Flexible

Product name :
Flexible Electrical Cable

Conductor Material :
Pure Copper

Insulation Material :
PVC

Brand Name :
HOLD-ONE

low voltage flame retardant power cable

Flexible Electrical Cable

Conductor Construction	stranded annealed copper wire
	2 core
	size: 0.5 /0.75/1.0 /1.5 /2.5/4.0/6.0
	insulation jacket
Color	Red and yellow, red and blue, red and black, red and white, etc.
Package	100m per roll
Rated voltage	-10~70°C

Product technical parameters

Nominal cross-section (mm²)	Insulation thickness (mm)	Max single core diameter (mm)	Conductor resistance at 20℃ (Ω/km)	Maximum insulation resistance at 70℃ (MΩ/km)
2×0.5	0.8	0.16	39	0.016
2×0.75	0.8	0.16	26	0.014
2×1.0	0.8	0.2	19.5	0.010
2×1.5	0.8	0.25	13.3	0.009
2×2.5	0.8	0.25	7.98	0.009

Features of RVS cable

Selected oxygen-free pure copper, soft, shiny, low resistance, stable, high efficiency, good performance of conduction.
The outer sheath uses heavy-duty PVC (polyvinyl chloride) material, which is eco-friendly, pollution free, anti-aging, and wear, acid alkaline, corrosion-resistant, and easy to be wired.
Apply advanced equipment to produce strictly in order to ensure low eccentricity, the even thickness of outer sheath can prevent from puncture, fire, safer usage of electricity.

Flexible Electrical Cable Application

Applicable to the cables and wires of rated yolatage 450/750V and less than 450/750V AC for power
plant, householdelectrical applance,insurment and telecommunication equipment.
copper cable electric cable wire

Product Name		Flexible Electrical Cable
Coductor		Copper / Aluminum, based on client's requirements
Construction		Bare copper wire
		Insulation jacket
		PVC sheath
Colors		Assorted upon request
Voltage		300/1100V
Application		These cables are used in connecting for audio appliances,home appliances,small electric tolls and instruments.
Specifications		CCC ISO certificated
		Strict QC
		Prompt delivery
OEM/ODM		Available
Sample		Free, freight charge prepaid or negotiation

PACKING AND SHIPPING

We are capable of meeting the strictest delivery schedules according to per purchase order. Meeting the deadline is always the top priority as any delay in the delivery of cable can contribute to overall project delay and cost overrun.
Cable is supplied in wooden reels, corrugated boxes and coils. Cable ends are sealed with BOPP self-adhesive tape and non-hygroscopic sealing caps to protect the cable ends from moisture. The required marking shall be printed with a weather-proof material on the outsides of drum according to customer's requirement.

We are a manufacture in this filed for many years, we can offer our customers cables with good quality and price.

We Sincerely welcome customers at home and abroad to negotiate and cooperate with us !!!
