Overhead Transmission 11KV 132KV 220kv AAC All Aluminum Conductor

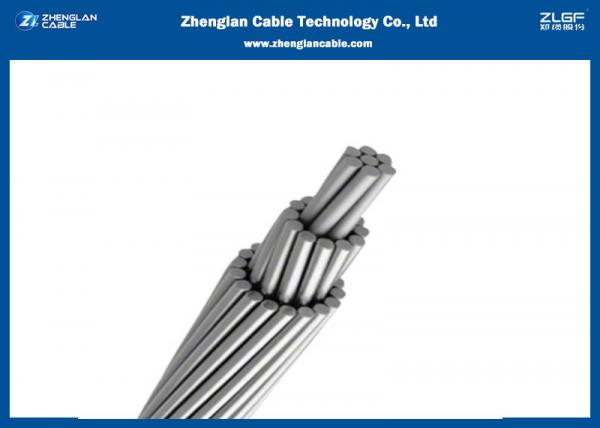

Overhead Transmission 11KV 132KV 220kv AAC All Aluminum Conductor image
Brand Name :
Zhenglan Cable
Model Number :
AAC
Certification :
3C; ISO 9001:2015, ISO 14001:2005, ISO 18001:2007;CE
Place of Origin :
Henan, China
MOQ :
300 meters
Price :
Negotiable
Payment Terms :
L/C, T/T,
Delivery Time :
15 days
Packaging Details :
Wooden drum, wood and steel drum,as customer’s request
Material :
AL
Core :
Normal or Customized
Length/drum :
300~1000 meter per drum
characted :
Bare Conductor
Nominal Area :
23.3~794.8
Drum :
Wooden/iron
AAC Conductor All Aluminum Conductor for 11KV, 132KV, 220kv Overhead Transmission
APPLICATION:
AAC is widely used in the Overhead transmission and primary and secondary distribution and it is one of the main products to form electrified wire network.
STANDARD:
IEC61089, ASTM B231, AAC BS215
CONSTRUCTION:
Aluminum 1350-H19 wires, concentrically stranded
ELECTRICAL PROPERTIES
density@20ºC | 2.70 kg/dm |
Temperature Coefficient@20°C | 0.00360 (°C) |
resistivity@20°C | 0.0326 Ohms mm2/m |
linear Expansivity |
23 x10-6 (°C) |
SERVICE CONDITIONS
Ambient Temperature | -5°C – 50°C |
Wind Pressure | 80 – 130kg/m |
Seismic Acceleration | 0.12 – 0.05g |
Isokeraunic level | 10 – 18 |
relative Humidity | 5 – 100% |
CONSTRUCTION PARAMETERS
AAC Technical Characters Based on Standard BS215 PART1 | |||||||
BS215 PART1 | |||||||
Code name | Cross section | No. of wires | Diameter | Mass per unit length | Rated strength | Maximum DC resistance at 20℃ | |
Wire | Conductor | ||||||
mm2 | mm | mm | kg/km | KN | Ω/km | ||
MIDGE | 23.3 | 7 | 2.06 | 6.18 | 63.8 | 4.20 | 1.2249 |
GNAT | 26.9 | 7 | 2.21 | 6.63 | 73.4 | 4.83 | 1.0643 |
MOSQUITO | 36.9 | 7 | 2.59 | 7.77 | 110.8 | 6.27 | 0.7749 |
LADYBIRD | 42.8 | 7 | 2.79 | 8.37 | 117.0 | 7.28 | 0.6678 |
ANT | 52.8 | 7 | 3.10 | 9.30 | 144.4 | 8.72 | 0.5409 |
FLY | 63.6 | 7 | 3.40 | 10.20 | 173.7 | 10.49 | 0.4497 |
BLUEBOTTLE | 73.6 | 7 | 3.66 | 11.00 | 201.3 | 11.78 | 0.3880 |
EARWIG | 78.6 | 7 | 3.78 | 11.30 | 214.7 | 12.57 | 0.3638 |
GRASSHOPPER | 84.1 | 7 | 3.91 | 11.70 | 229.7 | 13.45 | 0.3400 |
CLEGG | 95.6 | 7 | 4.17 | 12.50 | 261.3 | 15.30 | 0.2989 |
WASP | 106.0 | 7 | 4.39 | 13.20 | 289.6 | 16.95 | 0.2697 |
BEETLE | 106.4 | 19 | 2.67 | 13.40 | 292.4 | 18.08 | 0.2701 |
BEE | 132.0 | 7 | 4.90 | 14.70 | 360.8 | 21.12 | 0.2165 |
HORNET | 157.6 | 19 | 3.25 | 16.30 | 433.2 | 26.01 | 0.1823 |
CATERPILLAR | 185.9 | 19 | 3.53 | 17.70 | 511.1 | 29.75 | 0.1546 |
CHAFER | 213.2 | 19 | 3.78 | 18.90 | 586.0 | 34.12 | 0.1348 |
SPIDER | 237.6 | 19 | 3.99 | 20.00 | 652.9 | 38.01 | 0.1210 |
COCKROACH | 265.7 | 19 | 4.22 | 21.10 | 730.4 | 42.52 | 0.1081 |
BUTTERFLY | 322.7 | 19 | 4.65 | 23.30 | 886.8 | 51.63 | 0.0891 |
MOTH | 373.1 | 19 | 5.00 | 25.00 | 1025.3 | 59.69 | 0.0770 |
DRONE | 372.4 | 37 | 3.58 | 25.10 | 1027.1 | 59.59 | 0.0774 |
CENTIPEDE | 415.2 | 37 | 3.78 | 26.50 | 1145.1 | 66.43 | 0.0695 |
MAYBUG | 486.1 | 37 | 4.09 | 28.60 | 1340.6 | 77.78 | 0.0593 |
SCORPION | 529.8 | 37 | 4.27 | 29.90 | 1461.2 | 84.77 | 0.0544 |
CICADA | 628.3 | 37 | 4.65 | 32.60 | 1732.9 | 100.54 |
0.0459 |
• IEC 60189
Code | Nominal Area | Stranding | Overall Diameter | Weight | Rated Strength | Electrical Resistance | Current Rating* |
mm2 | No.x mm | mm | Kg/Km | KN | Ω/Km | A | |
16 | 18.4 | 7/1.83 | 5.49 | 50.4 | 5.43 | 1.7896 | 86 |
25 | 28.8 | 7/2.29 | 6.87 | 78.7 | 8.49 | 1.1453 | 113 |
40 | 46 | 7/2.89 | 8.67 | 125.9 | 13.58 | 0.7158 | 151 |
63 | 72.5 | 7/3.63 | 10.89 | 198.3 | 21.39 | 0.4545 | 200 |
100 | 115 | 19/2.78 | 13.9 | 316.3 | 33.95 | 0.2877 | 266 |
125 | 144 | 19/3.10 | 15.5 | 395.4 | 42.44 | 0.2302 | 305 |
160 | 184 | 19/3.51 | 17.55 | 506.1 | 54.32 | 0.1798 | 355 |
200 | 230 | 19/3.93 | 19.65 | 632.7 | 67.91 | 0.1439 | 407 |
250 | 288 | 19/4.39 | 21.95 | 790.8 | 84.88 | 0.1151 | 466 |
315 | 363 | 37/3.53 | 24.71 | 998.9 | 106.95 | 0.0916 | 535 |
400 | 460 | 37/3.98 | 27.86 | 1268.4 | 135.81 | 0.0721 | 618 |
450 | 518 | 37/4.22 | 29.54 | 1426.9 | 152.79 | 0.0641 | 663 |
500 | 575 | 37/4.45 | 31.15 | 1585.5 | 169.76 | 0.0577 | 706 |
560 | 645 | 61/3.67 | 33.03 | 1778.4 | 190.14 | 0.0516 | 755 |
630 | 725 | 61/3.89 | 35.01 | 2000.7 | 213.9 | 0.0458 | 809 |
710 | 817 | 61/4.13 | 37.17 | 2254.8 | 241.07 | 0.0407 | 866 |
800 | 921 | 61/4.38 | 39.42 | 2540.6 | 271.62 | 0.0361 | 928 |
900* | 1036 | 91/3.81 | 41.91 | 2861.1 | 305.58 | 0.0321 | 992 |
1000* | 1151 | 91/4.01 | 44.11 | 3179 | 339.53 | 0.0289 | 1051 |
1120* | 1289 | 91/4.25 | 46.75 | 3560.5 | 380.27 | 0.0258 | 1118 |
1250* | 1439 | 91/4.49 | 49.39 | 3973.7 | 424.41 | 0.0231 |
1185 |
Why you choose us?
OEM/ODM services provided;
Products comply with GB, IEC, BS, ASTM, DIN, VDE and JIS standards; Customer standard requirments Accepted;
Certified to ISO 9001:2015, ISO 14001:2015 and OHSAS 18001:2007;
Registered capital of $30 million and factory covers an area of 60,000㎡;
Advanced test equipment and procedures, 100% inspection before factory;
Enough stocks and the higest efficient shipping time guarranteed;
Professional pre-sales and after-sales services provided.
We are China Overhead Transmission 11KV 132KV 220kv AAC All Aluminum Conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
