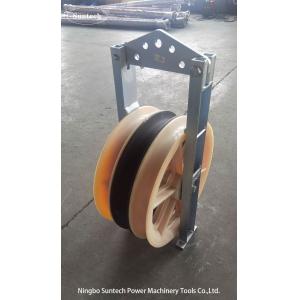

Overhead Line Conductor Stringing Equipment Nylon Sheave Stringing Blocks
Overhead Line Conductor Stringing Equipment Nylon Sheave Stringing Blocks image
Overhead Line Conductor Stringing Equipment Nylon Sheave Stringing Blocks
660 mm stringing blocks
Usage: Protect the cable and conductor from fricting when they are laying.They can save time and effort.
1.Maximum suitable conductor ACSR500
2.Sheave dimension( outside diameter× rootdiameter × sheave width) Φ660×Φ560×100(mm)
3.Sheave dimension Φ660×Φ560×110(mm) can be customized
Apply to paying off single conductor, twin bundled conductor or four bundled conductor on overhead
transmission line construction.
Specification: Product can be made of aluminum wheel with rubber liner, MC nylon wheel with rubber liner
or strengther nylon wheel with PU liner
Technical Data
| Item number | Model | Number of sheaves | Rated load (kN) | Weight (kg) | Features |
| 10121 | SHD660 | 1 | 20 | 30 | Rubber lined aluminium sheave |
| 10122 | SHS660 | 3 | 40 | 100 |
Middle : Cast steel sheave Conductor : Rubber lined aluminium sheave |
| 10123 | SHW660 | 5 | 60 | 150 | |

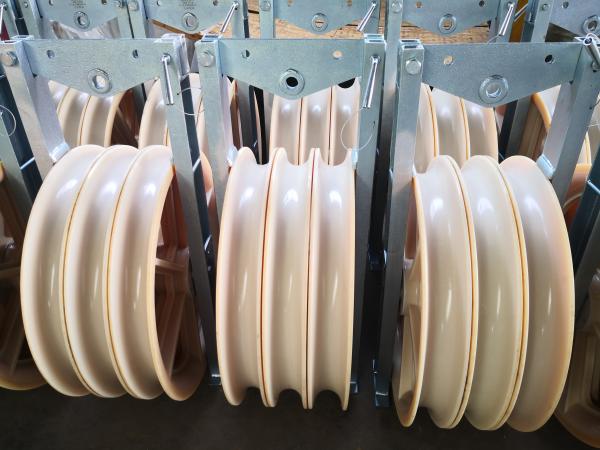

| 10124/10124A | SHDN660 | 1 | 20 | 26 | MC nylon sheave |
| 10125 | SHSLN660 | 3 | 40 | 86 |
Middle : MC nylon sheave Conductor : Rubber lined aluminium sheave |
| 10126 | SHWLN660 | 5 | 60 | 120 | |
| 10127/10127A | SHSQN660 | 3 | 40 | 70 | MC nylon sheave |
| 10128/10128A | SHWQN660 | 5 | 60 | 110 | |
| 10130 | SHQ660A | 7 | 75 | 190 |
Middle :cast steel sheave Conductor : MC nylon sheave |
About us: Suntech Power Tools, which located in the southeast China, it is the earliest origin Power Tools Leading City in China.We are making the various related cable pulling tools, and hydraulic tension and puller to support the transmission work.All canaccept OEM and professionally produced per ISO 9001:2008, they are being sold to over more than 50 countries in the world,and has wined the best brand reputations. Some items like the stringing blocks,cable rollers,the cable jack stands,etc we can customized, and the Construction Safety Tools ,are not demanded the MOQ. You can freely help you out either
We are China Overhead Line Conductor Stringing Equipment Nylon Sheave Stringing Blocks manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 60KN Stringing Blocks, 660mm Stringing Blocks, conductor stringing blocks, nylon sheave stringing blocksSimilar Or Related
