Overhead Line Cast Steel Frame Wire Cable Pulling Conductor Stringing Pulley Blocks

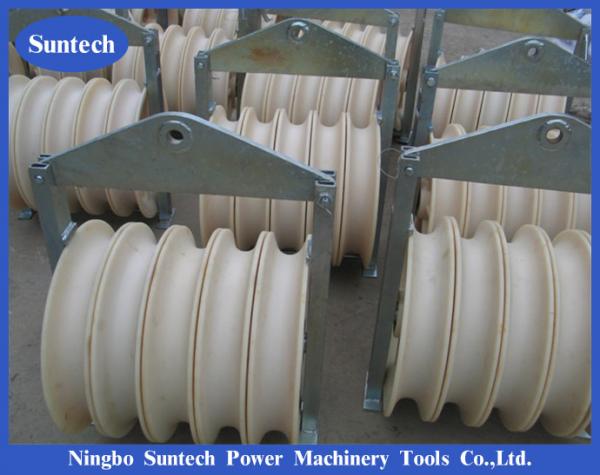

Overhead Line Cast Steel Frame Wire Cable Pulling Conductor Stringing Pulley Blocks image
Brand Name :
Suntech
Model Number :
SHDN508
Certification :
ISO
Place of Origin :
NINGBO
MOQ :
1 SET
Price :
Get Latest Price
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 sets per Month
Delivery Time :
15DAYS AFTER DEPOSIT
Packaging Details :
Exported Wooden Boxes
Name :
Stringing Pulley Block
Middle :
Cast Steel Sheave
Sheave :
5
Size :
508*100mm
Rated load :
60KN
Conductor :
ACSR LGJ400
Overhead Line Cast Steel Frame Wire Cable Pulling Conductor Stringing Pulley Blocks
Conductor stringing pulley block is applied for buiding on stilts to stretch to put conducting line in the power transmission wire ways
is more available than an single split conducting line,double split conducting line,four split conducting line,six split conducting line etc.
Stringing pulley blocks
Cast Steel Sheave Middle 508mm Three Wheels Stringing Block For Conductor
1) Outside Dia 508 mm;
2) Sheave: MC Nylon;
3) Frame: Galvanized steel;
4) Sheave number:1/3/5
Technical Parameters:Cast Steel Sheave Middle 508mm Three Wheels Stringing Block For Conductor
| Item Number | Model | Number of Sheave | Rated Load (kN) | Weight (kg) | Features of Sheave |
| 10101 | SHD508 | 1 | 20 | 18 | Rubber coated aluminum sheave |
| 10102 | SHS508 | 3 | 40 | 61 |
Middle: cast steel sheave Conductor: Rubber coated aluminum sheave |
| 10103 | SHW508 | 5 | 60 | 93 | |
| 10104 | SHDN508 | 1 | 20 | 16 | MC nylon sheave |
| 10105 | SHSLN508 | 3 | 40 | 47 |
Middle: MC nylon sheave Conductor: Rubber coated aluminum wheel |
| 10106 | SHWLN508 | 5 | 60 | 79 | |
| 10107 | SHSQN508 | 3 | 40 | 43 | MC nylon sheave |
| 10108 | SHWQN508 | 5 | 60 | 70 |
Note:Cast Steel Sheave Middle 508mm Three Wheels Stringing Block For Conductor
Galvanzied frame
Maximum suitable conductor ACSR400;
Sheave dimension ( outside diameter x root diamter xsheave width)
Sheave dimension Φ508×Φ408×75 (mm) can be customized.
We are China Overhead Line Cast Steel Frame Wire Cable Pulling Conductor Stringing Pulley Blocks manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
Tags: 508x100mm conductor stringing blocks, 508x100mm pulley block, conductor stringing blocks, pulley conductor stringing blocksSimilar Or Related
