Overhead Electrical Wire Use Galvanized Steel Cable With No Welding Surface

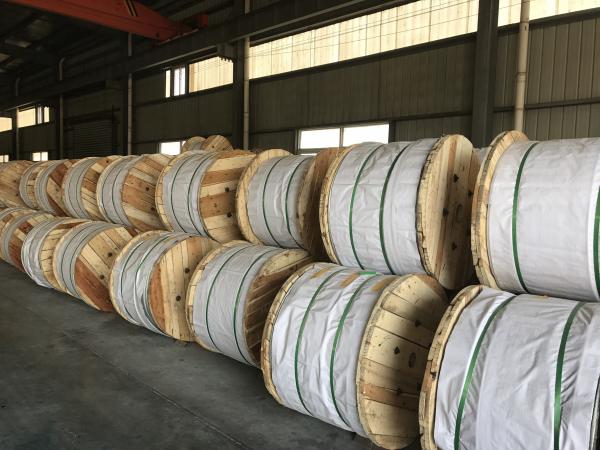

Overhead Electrical Wire Use Galvanized Steel Cable With No Welding Surface image
Brand Name :
Litong Global
Model Number :
LT044
Certification :
ISO9001-2008
Place of Origin :
Anhui,China
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
400tons/day
Packaging Details :
Stadnard export packing in coil
Steel Grade :
high carbon steel
Standard :
AISI, ASTM, BS, DIN, GB, JIS
Type :
Galvanized
Alloy Or Not :
Non-alloy
process :
hot zinc coated
raw material :
high carbon steel rod
surface requirement :
no welding, zinc coated uniformity
Hot zinc coated steel cable for bare ACSR conductor with below features:
Hot zinc coated steel cable with bright, clean and firm layer;
Hot zinc coated steel cable with strong corrosion resistance;
Hot zinc coated steel cable do the hot dip galvanizing vertical process;
Hot zinc coated steel cable must ensure the zinc layer thickness
Hot zinc coated steel cable for bare ACSR conductor with below application:
Hot zinc coated steel cable can be used for Over Head Transmission Line,overhead power line, overhead aerial line;
Hot zinc coated steel cable can be used for earth wire, ground wire;
Hot zinc coated steel cable can be used for core of Aluminum Conductor Steel Reinforced(ACSR);
Hot zinc coated steel cable can be used for fixed object or project;
Hot zinc coated steel cable can be used for communication wires;
Hot zinc coated steel cable can be used for bridge, suspension
Hot zinc coated steel cable for bare ACSR conductor with below specification
Galvanized Steel Core Wire for ACSR Conductor as per ASTM B 498
|
Wire Diamater(mm) |
Diamater Tolerance(mm) |
Weight of Zinc-coating(g/m2) |
Stress at 1% Extension,Min(Mpa) |
Tensile Strength Min.(Mpa) |
Elongation in 250mm,Min(%) |
|
1.57-1.90 |
+0.04,-0.03 |
210 |
1310 |
1450 |
3.0 |
|
Over 1.9-2.3 |
+0.04,-0.03 |
220 |
1310 |
1450 |
3.0 |
|
Over 2.3-2.7 |
+0.05,-0.05 |
230 |
1280 |
1410 |
3.5 |
|
Over 2.7-3.1 |
+0.05,-0.05 |
240 |
1280 |
1410 |
3.5 |
|
Over3.1-3.5 |
+0.08,-0.05 |
260 |
1240 |
1410 |
4.0 |
|
Over 3.5-3.9 |
+0.08,-0.05 |
270 |
1240 |
1410 |
4.0 |
|
Over 3.9-4.5 |
+0.1,-0.08 |
275 |
1170 |
1380 |
4.0 |
|
Over 4.5-4.8 |
+0.1,-0.08 |
300 |
1170 |
1380 |
4.0 |
Galvanized Steel Wire Strand for ACSR Conductor as per ASTM A 475
|
Norminal Diamater of Strand |
No. of Wires |
Diamater of Wire |
Tolerance of Wire |
Weight |
Zinc-coating |
Breaking Loading |
|
mm |
– |
mm |
mm |
Kg/Km |
g/m2 |
KN |
|
3.18 |
7 |
1.04 |
±0.05 |
48 |
122 |
8.14 |
|
3.97 |
7 |
1.32 |
±0.05 |
76 |
122 |
13.078 |
|
4.76 |
7 |
1.57 |
±0.08 |
109 |
153 |
17.748 |
|
5.56 |
7 |
1.83 |
±0.08 |
146 |
153 |
24.02 |
|
6.35 |
7 |
2.03 |
±0.08 |
180 |
183 |
29.581 |
|
7.14 |
7 |
2.36 |
±0.10 |
244 |
214 |
39.812 |
|
7.94 |
7 |
2.64 |
±0.10 |
305 |
244 |
49.82 |
|
9.52 |
7 |
3.05 |
±0.10 |
407 |
259 |
68.503 |
|
11.11 |
7 |
3.68 |
±0.13 |
595 |
275 |
92.523 |
|
12.7 |
7 |
4.19 |
±0.13 |
770 |
275 |
119.657 |
|
ASTM A 475-2003 |
||||||||
|
Norminal Diameter |
No.of wires |
Diameter of wire |
Tolerance of wiere |
Weight |
Zinc coating |
Broken Loading |
||
|
Inch |
mm |
pcs |
mm |
± mm |
Kgs/100M |
G/M2 |
Lbf |
Kn |
|
1/8" |
3.18 |
7 |
1.04 |
0.05 |
48 |
122 |
1830 |
8.14 |
|
5/32" |
3.97 |
7 |
1.32 |
0.05 |
76 |
122 |
2940 |
13.078 |
|
3/16" |
4.76 |
7 |
1.57 |
0.08 |
109 |
153 |
3990 |
17.748 |
|
7/32" |
5.56 |
7 |
1.83 |
0.08 |
146 |
153 |
5400 |
24.02 |
|
1/4" |
6.35 |
7 |
2.03 |
0.08 |
180 |
183 |
6650 |
29.581 |
|
9/32" |
7.14 |
7 |
2.36 |
0.10 |
244 |
214 |
8950 |
39.812 |
|
5/16" |
7.94 |
7 |
2.64 |
0.10 |
305 |
244 |
11200 |
49.82 |
|
3/8" |
9.52 |
7 |
3.05 |
0.10 |
407 |
259 |
15400 |
68.503 |
|
7/16" |
11.11 |
7 |
3.68 |
0.13 |
595 |
275 |
20800 |
92.523 |
|
1/2" |
12.7 |
7 |
4.19 |
0.13 |
770 |
275 |
26900 |
119.657 |
|
9/16" |
14.29 |
7 |
4.78 |
0.13 |
1000 |
305 |
35000 |
155.688 |
|
5/8" |
15.88 |
7 |
5.26 |
0.13 |
1211 |
305 |
42400 |
188.605 |
FAQ
Q:If found the product with substardard quality.How can you solve it?
A:The buyer will be required to submit proof file,picture,ideo of the said substandard cargo send to us first. We can also send our engineer to your filed to check it directly,if need any.
Q:If sample available?
A:Yes,we can offer sample free of charge.But the express freight should be on buyer’s account.
Q:If I order big quantity,what’s the good price?
A:Please send the details enquiry to us ,such as the Item Number,Quantity for each item, Quality request,Logo,Payment Terms,Transport method,Discharge place etc.We will make the accurate quotation to you as soon as possible.
If you are interested in our products, pls feel free to tell me the diameter or nominal section area or the nick name to me. Then,I will send our best quotation to you.
