Overhead Electrical Aerial Bundle Cable

 China Overhead Electrical Aerial Bundle Cable supplier

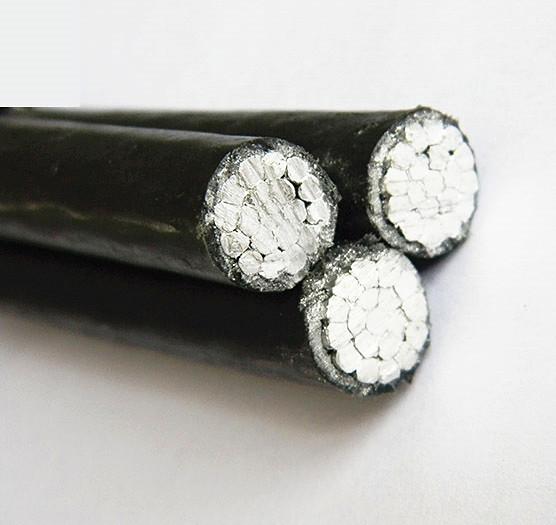

Overhead Electrical Aerial Bundle Cable image

Get a Quote Email to us

Brand Name :
Luoyang Sanwu

Model Number :
ABC cable

Certification :
IS09001, IS014001,OHSAS18001

Place of Origin :
Luoyang,China

MOQ :
5000meters

Price :
Negotiable

Payment Terms :
L/C, T/T, Western Union

Supply Ability :
3000kilometers per month

Delivery Time :
7-15work days

Packaging Details :
New export standard wooden drum, reel, circle, or according to customers request.

Material :
Aluminium 1350

Insulation :
XLPE

Color :
Black

Voltage :
0.6/1KV

Standad :
ASTM,BS

ACSR AAAC Aluminium Steel Reinforced Quadruplex Duplex Triplex Service Drop XLPE PVC Insulated Overhead Electric Wire Electrical Power Aerial Bundle ABC Cable







Applications

a. Duplex Service Drop

Application:To supply 120 volt aerial service for temporary service at construction sites,outdoor or street lighting . For service at 600 volts or lower at a conductor temperature of 75°C maximum.

b. Triplex Service Drop

Application: To supply power from the utility's lines to the consumer's weatherhead. For service at 600 volt or less (phase to phase) at a conductor temperature of 75°C maximum for polyethylene insulation 90°C maximum for crosslinked insulation.

c. Quadruplex Service Drop.

Used to supply 3 phase power, usually from a polemounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulation 90°C maximum for crosslinked polyethylene(XLPE) insulated conductors.



Standard

ANSI/ICEA S-76-474, NF C 33-209, AS3560-1-2000, IEC 60228, and ect.









Specification

<td style="box-sizing: border-box; margin: 0px; padding: 2px 5px; border: 1px solid rgb(204, 204, 20

We are China Overhead Electrical Aerial Bundle Cable manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.

Tags: , , ,

FAST AND RELIABLE SERVICE FOR YOUR PROJECT

Contact our trained experts today to find your perfect power solution.

ASK A QUESTION
Duplex service drop
Code Name Phase conductor Bare Neutral Message Nominal Weight ( kg/km ) Allowable Ampacity
Size & No.of wires Insulation Thick(mm) Nominal Diameter (mm) Size & No.of wires Rated Strength (kg) XLPE Aluminum ( A )
Bare OD
AAC
Pekingese 6-Solid 1.14 4.1 6.4 6-7 255 20.8 72.9 78
Collie 6-7 1.14 4.6 6.9 6-7 255 23.8 72.9 78
Cocker 6-7 1.52 4.6 7.7 6-7 255 32.7 72.9 78
Dachshund 4-Solid 1.14 5.2 7.5 6-7 400 26.8 114.6 103
Spaniel 4-7 1.14 5.9 8.2 6-7 400 29.8 116.1 103
Cairn 4-7 1.52 5.9 8.9 6-7 400 40.2 116.1 103
Doberman 2-7 1.14 7.4 9.7 2-7 612 38.7 184.5 136
Airedale 1-19 1.52 8.4 11.5 1-7 56.5 233.6 158
Basset 1/0-7 1.52 9.3 12.4 1/0-7 903 64 294.7 182
Malemure 1/0-19 1.52 9.4 12.5 1/0-7 903 64 294.7 182
AAAC
Chihuahua 6-Solid 1.14 4.1 6.4 6-7 499 20.8 72.9 78
VIzsla 6-7 1.14 4.6 6.9 6-7 499 23.8 72.9 78
Harrier 4-Solid 1.14 5.2 7.5 4-7 798 26.8 116.1 103
Whippet 4-7 1.14 5.9 8.2 4-7 798
