Overhead Conductor Alumoweld Guy Wire For Coastal Areas , Volcanic Areas

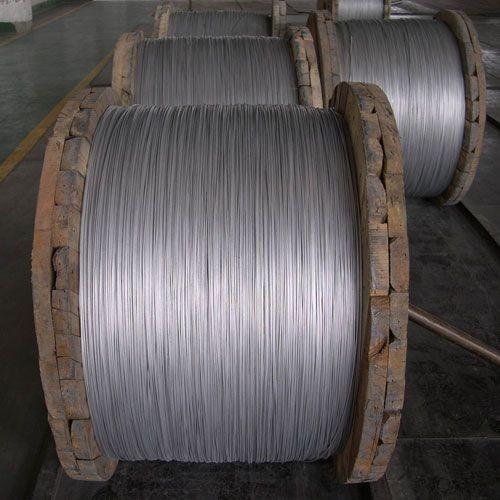

Overhead Conductor Alumoweld Guy Wire For Coastal Areas , Volcanic Areas image

Get a Quote Email to us

Brand Name :
LITONG GLOBAL

Model Number :
LT-1612162

Certification :
ISO9001-2008

Place of Origin :
ANHUICHINA

MOQ :
Negotiable

Price :
Negotiable

Supply Ability :
300tons/day

Packaging Details :
Standard export seawprthy packing on drum

Model NO. :
ASTM B 415, ASTM B 502, AS 1222.2

Type :
Aluminium Clad Steel Wire

Conductor Type :
Solid

Application :
Overhead, Heating, Underground

Conductor Material :
Aluminum Clad Steel

Material Shape :
Round Wire

Product Description

Aluminium clad steel wire, AS, AS Wire
Structure:
It is composed by round reinforced steel and uniform aluminum layer outside.
Application:
Usually used as parts of Al Clad Strand Wires (ACS), Aluminum Conductors, Al Clad Steel Reinforced (ACSR/AW), OCGW,etc.
Standard:
ASTM B 415-92, ASTM B 502-93, AS 1222, IEC61232, JCS389

Approximate Properties of Hard-drawn 20.3% Conductivity Aluminum-Clad steel Wire (20.3%)
Nominal Dia		Size	Calculated cross sectional area		Min tensile strength		Calculated breaking load	Mincoating thickness	D.C resistance at 20ºC≤		Weight
in.	mm	AWG	mm2	cmils	Mpa	psi	kn	mm	Ω/1000ft	Ω/km	kg/km	1b/1000ft
0.2043	5.189	4	21.150	41740	1070	155000	22.60	0.259	1.222	4.009	139.32	93.63
0.1880	4.775	4	17.908	35342	1100	160000	19.70	0.239	1.443	4.735	118.01	79.31
0.1819	4.620	5	16.767	33090	1140	165000	18.10	0.231	1.541	5.056	110.48	74.25
0.1729	4.392	5	15.150	29899	1170	170000	17.73	0.220	1.706	5.597	99.84	67.10
0.1620	4.115	6	13.296	26240	1210	175000	16.00	0.206	1.943	6.375	87.61	58.88
0.1549	3.934	6	12.155	23989	1240	180000	15.07	0.197	2.126	6.976	80.10	53.83
0.1443	3,665	7	10.549	20820	1280	185000	13.50	0.183	2.450	8.038	69.47	46.69
0.1369	3.477	7	9.495	18739	1310	190000	12.44	0.174	2.722	8.931	62.57	42.05
0.1285	3.264	8	8.366	16510	1340	195000	11.20	0.163	3.089	10.135	55.15	37.03
0.1144	2.906	9	6.633	13090	1340	195000	8.92	0.145	3.896	12.783	43.70	29.37
0.1019	2.588	10	5.260	10380	1340	195000	7.07	0.129	4.912	16.116	34.66	23.29
0.0907	2.304	11	4.170	8230	1340	195000	5.61	0.115	6.194	20.323	27.48	18.47
0.0808	2.052	12	3.309	6530	1340	195000	4.45	0.103	7.811	25.628	21.80	14.65

Welcome to enquiry our Aluminum Clad Steel wire

Nancy

[email protected]

What'app:0086-13855514957

Skype:nancylsl

We are China Overhead Conductor Alumoweld Guy Wire For Coastal Areas , Volcanic Areas manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
