Overhead Bare Copper Conductor , Plain Bare Hard Drawn Copper Conductor
Overhead Bare Copper Conductor , Plain Bare Hard Drawn Copper Conductor image
Brand Name :
TANO CABLE
Model Number :
Copper
Certification :
ISO CCC certificated
Place of Origin :
China
MOQ :
1000 Meters
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
8000 km Per Month
Delivery Time :
7-20 days
Packaging Details :
We can pack our products, by coil, carton, plastic bag, wooden drum/reel, steel-wooden drum/reel, steel drum/reel with strong protection to suit for the long-distance delivery.
Package :
Roll or Wooden Drum
Standard :
BS 7884
Conductor :
Plain Bare Drawn Copper Conductor
Application :
Overhead Electrical
Colour :
Amaranth
Nominal Section Area :
12 – 240 mm2
TANO CABLE Plain bare hard drawn Copper conductors overhead electrical distribution
Production Description

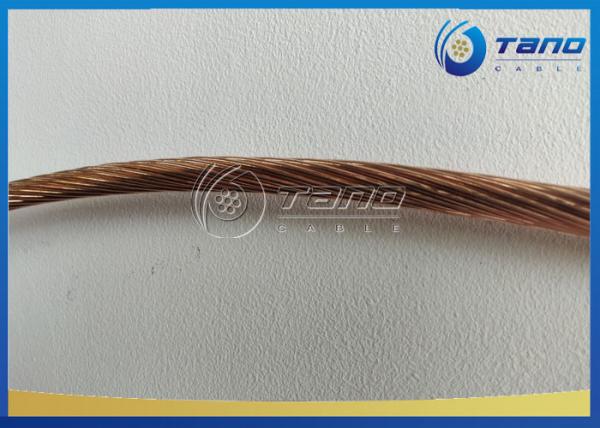

Plain bare hard drawn Copper conductors
Application of Bare Copper Conductor
Used for overhead electrical distribution lines, grounding electrical substations, electrical test equipment and any other electrical system, Suitable for numerous other applications.
Standard of Bare Copper Conductor
BS 7884
Construction of Bare Copper Conductor
Conductor: Plain bare hard drawn Copper conductors.
Construction Parameters of Bare Copper Conductor
BS 7884
| BS 7884 | |||||||
| Nominal area of cross-section of stranded conductor |
Construction (stranding and wire diameter) |
Overall diameter of conductor (approx.) |
Approximate Overal Diameter |
Nominal DC Resistance at 20°C |
Nominal Breaking Load |
||
| Nominal | Max. | ||||||
| mm2 | No./mm | mm | kg/km | ohm/km | ohm/km | KN | |
| 12.0 | 3/2.30 | 4.95 | 112.4 | 1.7430 | 1.7800 | 6.97 | |
| 16.0 | 7/1.70 | 5.10 | 143.3 | 1.3680 | 1.3990 | 8.88 | |
| 22.0 | 7/2.00 | 6.00 | 198.3 | 0.9882 | 1.0110 | 12.29 | |
| 25.0 | 7/2.10 | 6.30 | 218.7 | 0.8959 | 0.9171 | 13.55 | |
| 30.0 | 7/2.30 | 6.90 | 262.3 | 0.7469 | 0.7645 | 16.26 | |
| 35.0 | 7/2.50 | 7.50 | 309.9 | 0.6324 | 0.6471 | 19.21 | |
| 38.0 | 7/2.60 | 7.80 | 335.2 | 0.5847 | 0.5983 | 20.78 | |
| 45.0 | 7/2.90 | 8.70 | 417.0 | 0.4698 | 0.4809 | 24.60 | |
| 55.0 | 7/3.20 | 9.60 | 507.8 | 0.3859 | 0.3950 | 29.95 | |
| 70.0 | 19/2.10 | 10.50 | 596.8 | 0.3316 | 0.3403 | 35.99 | |
| 75.0 | 7/3.70 | 11.10 | 678.8 | 0.2887 | 0.2954 | 38.01 | |
| 95.0 | 19/2.50 | 12.50 | 845.9 | 0.2343 | 0.2400 | 51.01 | |
| 100.0 | 7/4.30 | 12.90 | 916.9 | 0.2138 | 0.2195 | 51.16 | |
| 120.0 | 19/2.80 | 14.00 | 1061.0 | 0.1862 | 0.1914 | 60.89 | |
| 125.0 | 19/2.90 | 14.50 | 1138.0 | 0.1739 | 0.1784 | 65.31 | |
| 150.0 | 19/3.20 | 16.00 | 1386.0 | 0.1428 | 0.1465 | 79.53 | |
| 150.0 | 37/2.25 | 15.75 | 1342.0 | 0.1493 | 0.1533 | 80.49 | |
| 180.0 | 19/3.50 | 17.50 | 1658.0 | 0.1196 | 0.1225 | 95.14 | |
| 180.0 | 37/2.50 | 17.50 | 1657.0 | 0.1209 | 0.1242 | 99.33 | |
| 200.0 | 19/3.70 | 18.50 | 1853.0 | 0.1068 | 0.1696 | 100.90 | |
| 240.0 | 19/4.00 | 20.00 | 2165.0 | 0.0915 | 0.0938 | 117.90 | |
We are China Overhead Bare Copper Conductor , Plain Bare Hard Drawn Copper Conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
