Overhead Bare Conductor AAC Conductor according to IEC 61089 Code:16~1250

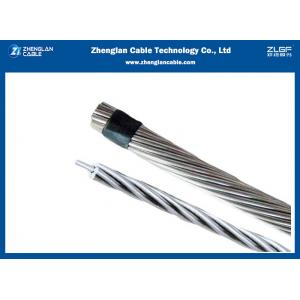

Overhead Bare Conductor AAC Conductor according to IEC 61089 Code:16~1250 image

Overhead Bare Conductor AAC Conductor according to IEC 61089

APPLICATION:AAC is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. It is also suitable for laying across basins, rivers and valleys where special geographical teatures exist.

STANDARD

Basic design to BS 3242 / BS EN 50182 / IEC 61089 / ASTM B 399/B 399M / DIN 48201 -6 standards.

CONSTRUCTION

This kind of conductor is composed by one or more layer of pure aluminium AA1350-H19, hard drawn. The conductivity is 61%IACS. This kind of conductor has a very low value of specific mechanical resistance and it’s used for short lengths (for example next to the stations) and not for long spans.
This kind of conductor has a very good resistance to corrosion and his modulus of elasticity is characterized by a law that consider the formation of the conductor (number of wires and layers).

ELECTRICAL PROPERTIES

density@20ºC	2.70 kg/dm
Temperature Coefficient@20°C	0.00360 (°C)
resistivity@20°C	0.0326 Ohms mm2/m
linear Expansivity	23 x10^-6 (°C)

SERVICE CONDITIONS

Ambient Temperature	-5°C – 50°C
Wind Pressure	80 – 130kg/m
Seismic Acceleration	0.12 – 0.05g
Isokeraunic level	10 – 18
relative Humidity	5 – 100%

CONSTRUCTION PARAMETERS

• IEC 60189

Code	Nominal Area	Stranding	Overall Diameter	Weight	Rated Strength	Electrical Resistance	Current Rating*
	mm2	No.^x mm	mm	Kg/Km	KN	Ω/Km	A
16	18.4	7/1.83	5.49	50.4	5.43	1.7896	86
25	28.8	7/2.29	6.87	78.7	8.49	1.1453	113
40	46	7/2.89	8.67	125.9	13.58	0.7158	151
63	72.5	7/3.63	10.89	198.3	21.39	0.4545	200
100	115	19/2.78	13.9	316.3	33.95	0.2877	266
125	144	19/3.10	15.5	395.4	42.44	0.2302	305
160	184	19/3.51	17.55	506.1	54.32	0.1798	355
200	230	19/3.93	19.65	632.7	67.91	0.1439	407
250	288	19/4.39	21.95	790.8	84.88	0.1151	466
315	363	37/3.53	24.71	998.9	106.95	0.0916	535
400	460	37/3.98	27.86	1268.4	135.81	0.0721	618
450	518	37/4.22	29.54	1426.9	152.79	0.0641	663
500	575	37/4.45	31.15	1585.5	169.76	0.0577	706
560	645	61/3.67	33.03	1778.4	190.14	0.0516	755
630	725	61/3.89	35.01	2000.7	213.9	0.0458	809
710	817	61/4.13	37.17	2254.8	241.07	0.0407	866
800	921	61/4.38	39.42	2540.6	271.62	0.0361	928
900*	1036	91/3.81	41.91	2861.1	305.58	0.0321	992
1000*	1151	91/4.01	44.11	3179	339.53	0.0289	1051
1120*	1289	91/4.25	46.75	3560.5	380.27	0.0258	1118
1250*	1439	91/4.49	49.39	3973.7	424.41	0.0231	1185
