Overhead Bare Conductor AAAC Conductor

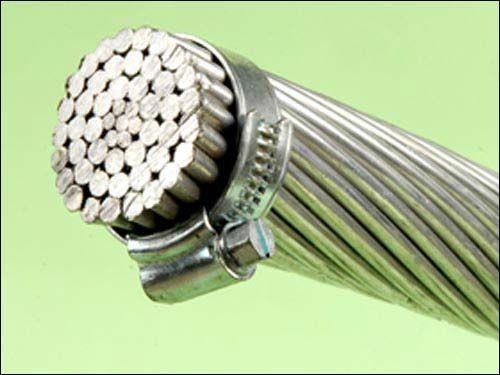

Overhead Bare Conductor AAAC Conductor image
Brand Name :
EVERTRUST
Model Number :
AAAC
Place of Origin :
CHINA
MOQ :
1mt
Price :
USD2500.00–USD2600.00 per mt
Payment Terms :
D/A, L/C, T/T, D/P
Supply Ability :
500mt per month
Delivery Time :
20days
Packaging Details :
in wooden drums
Material :
aluminum alloy
Aaac (all aluminum alloy conductor)
Application:
Overhead transmission and primary and secondary distribution .
The alloys referred to have higher strength but lower conductivity than pure aluminum. Being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional acsr; Having lower breaking loads than the latter, their use becomes particularly favourable When ice and win loadings are low.
Construction:
AAAC is a high-strength aluminum alloy, concentric-lay-stranded conductor.
It is similar in construction and appearance to the AAC all-aluminum conductor. The AAAC conductor is manufactured in accordance with the requirements of the latest issue of ASTM B399. The AAAC conductor is manufactured from a heat-treated, magnesium-silicide high-strength 6201-T81 aluminum alloy. The aluminum strands consist of a concentric stranded cable of 7, 19, 37 or more wires. The sizes and strands listed are common examples used in overhead lines. Metric (mm) sizes are also available.
We are China Overhead Bare Conductor AAAC Conductor manufacture and supplier,You can get more details with Email,you will get cheap price or factory price.
