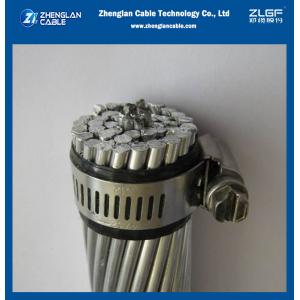

Overhead Bare Aluminum Conductor Steel Reincorced ACSR 100mm2 image

Get a Quote Email to us

overhead aluminum conductor steel reincorced ACSR conductor 100mm2 IS 398 part2

Application:

overhead aluminum conductor steel reincorced ACSR conductor 100mm2 IS 398 part2 are concentrically stranded conductor with one or more layers of hard drawn Aluminium wire on galvanized steel wire core which are coated with zinc with Class A / Class B Coating. The core can be single wire or stranded depending on the size of the conductors.

Place of Origin: Henan,China (Mainland)
Brand Name: ZHENGLAN
Insulation Material: none
Application: Overhead
Packaging Details: fully wooden drum, steel wooden drum, fully steel drum or customized

Standard:
ACSR manufactured by us that meets or exceeds the requirements of all international standards like ASTM, AS, BS, CSA, DIN, IEC, NFC, SS -etc, NFC, SS -etc

overhead aluminum conductor steel reincorced ACSR conductor 100mm2 IS 398 part2 Features:

High Tensile strength;

Better sag properties;

Economic design;

Suitable for remote applications involving long spans

overhead aluminum conductor steel reincorced ACSR conductor 100mm2 IS 398 part2 Technical parameters

INDIAN STANDARD IS 398 (Part 2): 1996
Nominal Aluminium Stranding and Wire Diameter Sectional Area of Aluminium Total Sectional Area Approximate Diameter Approximate Mass Calculated Resistance at 20°C Max. Approximate Calculated Breaking Load
Aluminium Steel
mm2 mm2 mm2 mm2 mm2 mm kg/km Q/km kN
10 6/1.50 1/1.50 10.6 12.37 4.5 43 2.78 3.97
18 6/1.96 1/1.96 18.1 21.12 5.88 73 1.618 6.74
20 6/2.11 1/2.11 20.98 24.48 6.33 85 1.394 7.61
30 6/2.59 1/2.59 31.61 36.88 7.77 128 0.9289 11.12
50 6/3.35 1/3.35 52.88 61.7 10.05 214 0.5524 18.25
80 6/4.09 1/4.09 78.83 91.97 12.27 319 0.3712 26.91
100 6/4.72 7/1.57 105 118.5 14.15 394 0.2792 32.41
150 30/2.59 7/2.59 158.1 194.9 18.13 726 0.1871 67.34
200 30/3.00 7/3.00 212.1 261.5 21 974 0.139 89.67
400 42/3.50 7/1.96 404.1 425.2 26.88 1281 0.07311 88.79
420 54/3.18 7/3.18 428.9 484.5 28.62 1621 0.06868 130.32
520 54/3.53 7/3.53 528.5 597 31.77 1998 0.05595 159.6
560 42/4.13 7/2.30 562.7 591.7 31.68 1781 0.03231 120.16

overhead aluminum conductor steel reincorced ACSR conductor 100mm2 IS 398 part2 Product show:
